4 - 85
PSR-1, NET-4, NET-7, NET-7M Connections and Ratings

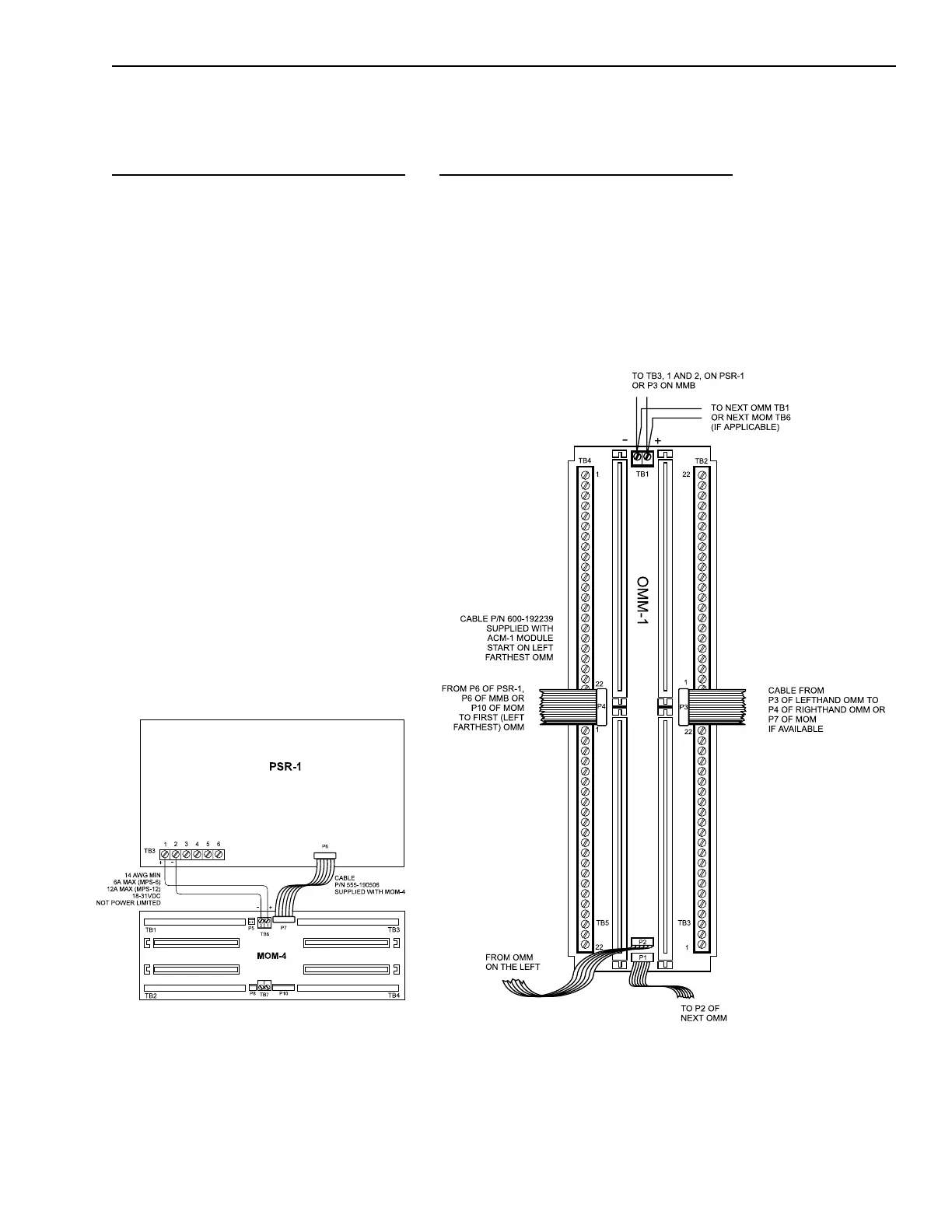

MOM-4 Wiring
OMM-1 Module Connection
When using the PSR with MXLV
modules, connect TB3-1 and TB3-2 on
PSR to TB1 at the top of the OMM-1
on the far left. Refer to the OMM-1
Installation Instructions, P/N 315-090267
for further information.
MOM-4 Module Connection
P6 on the PSR-1 is the data and 5V
connection for the MOM-4. Connect
P6 on the PSR-1 to P7/P10 on the
MOM-4 using the 8-conductor ribbon
cable, P/N 555-190506, provided with
the MOM-4.
A second auxiliary non-power limited
output is provided on TB3 for the
MOM-4 card cage. This output is rated at
6 amps (MPS-6/6W) or 12 amps (MPS-
12/12W), 18-31 VDC. This 6 amp capac-
ity must be de-rated by the current
drawn by the CZM-1B6 and PS-5A
power output. If the full 2 amp capacity
of the CZM-1B6 and PS-5A output is
used, the MOM-4 power must be
derated to 4 amps (MPS-6/6W) or 10
amps (MPS-12/12W).
OMM-1 Wiring
