4 - 90

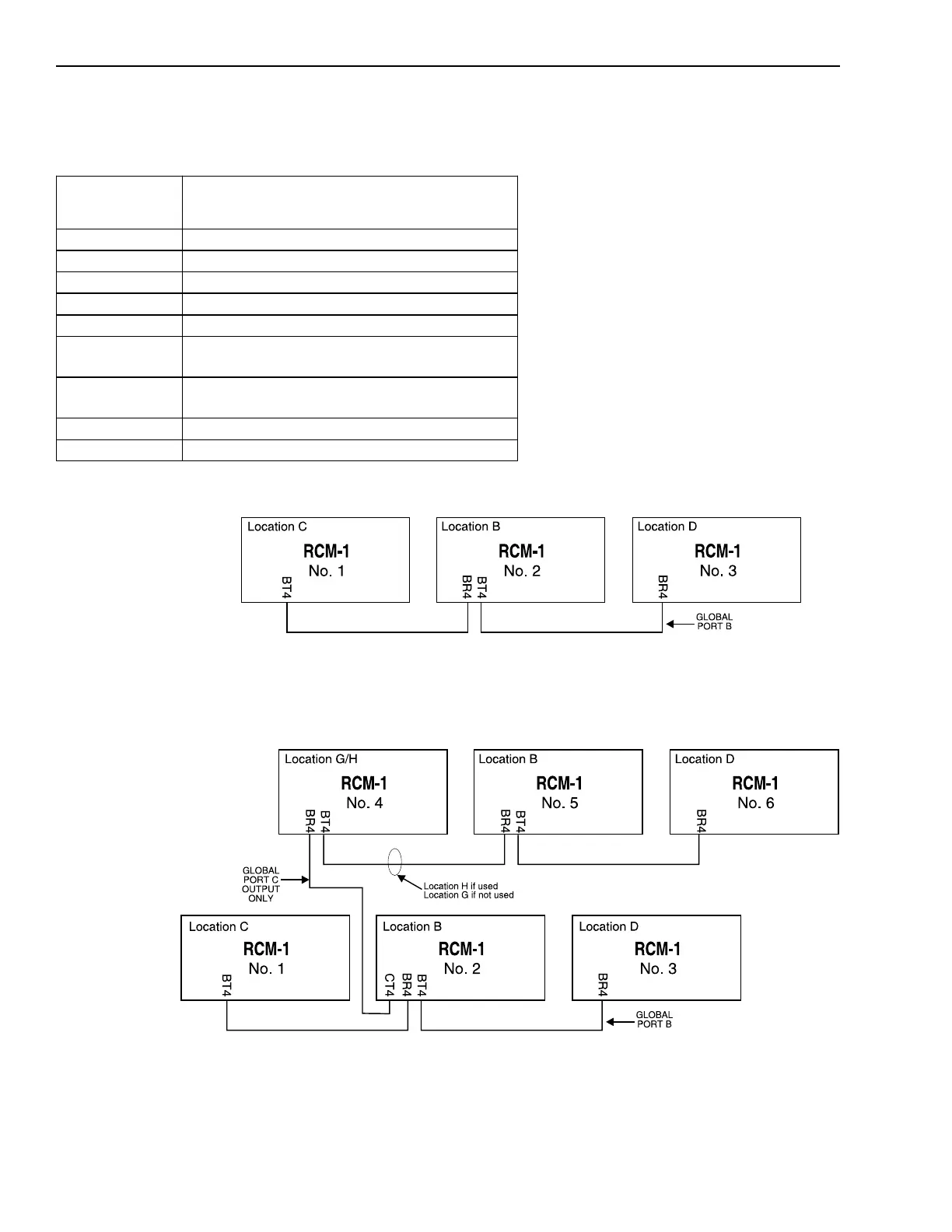

RCM-1 Connections and Ratings
The RCM-1 can be connected in many
different ways. The table to the left
describes the various applications. The
block diagrams that follow show the
possible configurations.
RCM-1 Nos. 4, 5, and 6
have local ACMs, but
cannot output to the
global bus they can
only receive.
Application 2: Style 4 with a Style 4 Output Only Extension
Application 1: Typical Style 4 Installation
RCM-1 APPLICATIONS
Application Number
(See Corresponding
Diagram)
Configuration
1 Typical Style 4 Installation
2 Style 4 Installation with a Style 4 Output Only Extension
3 Typical Style 7 Installation
4 Style 7 Installation with a Style 4 Extension
5 Style 4 Installation with Fiber Optic Transmission
6
Style 4 Fiber Optic with a Style 4 Fiber Optic Output Only
Extension
7
Style 7 Fiber Connection with a Style 4 Output Only fiber
Extension
8 Combination Wire and Fiber Installation
9 Style 4 Repeater Installation
