4 - 96
RCM-1 Connections and Ratings
Typical Style 7 connections
The RCM-1 provides a Style 7 output
which can be used to connect to other
systems which require global paging
capability.
NOTES
1. Use 18 AWG
minimum wire.
2. Limit the maximum
resistance of loop
total from the first
RCM to the last RCM
to 100 ohms.
Maximum line
capacitance = 1µF.
3. The wiring is power
limited to NFPA 70
per NEC 760.
4. Maximum voltage is
1.5V RMS.
5. Maximum current is
50mA.
6. Refer to wiring
configurations for
the OCC and ACM on
page 4 - 102 for
proper EOLR
placement.

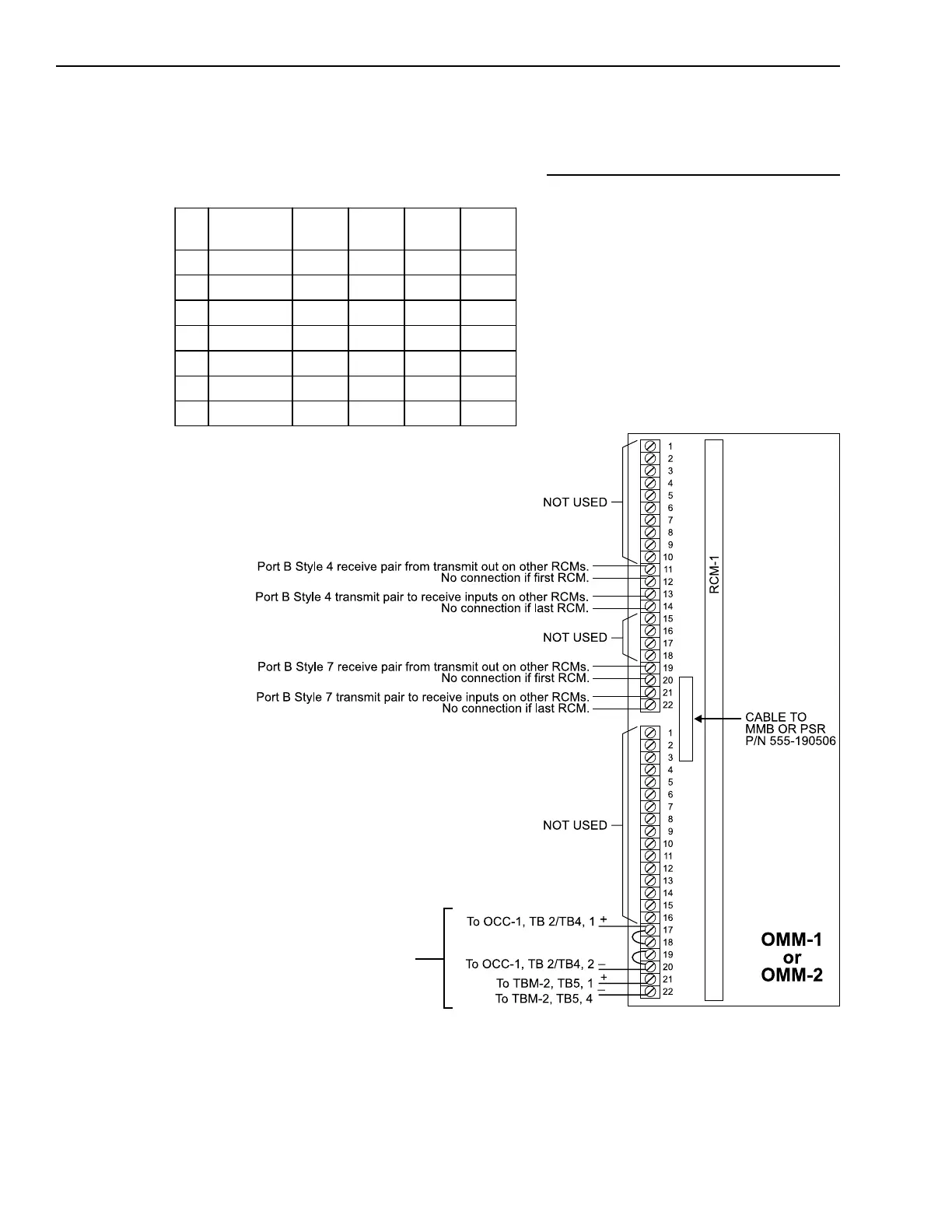

Typical Style 7 Wiring
(See Note 6)
S2 SETTINGS
SW Description
Location
B
Location
C
Location
E
Location
F
1 Copper config off on on off
2 Copper config on off on on
3 Copper config on on off off
4 Copper repeater on on on on
5Fiber config onononon
6Fiber config onononon
7 Style 7 off off off on
