4 - 101
RCM-1 Connections and Ratings
NOTES
1. Use 18 AWG
minimum wire.
2. Limit the maximum
resistance of loop
total from the first
RCM to the last RCM
to 100 ohms.
Maximum line
capacitance = 1µF.
3. The wiring is power
limited to NFPA 70
per NEC 760.
4. Maximum voltage is
1.5V RMS.
5. Maximum current is
50mA.
6. Refer to wiring
configurations for
the OCC and ACM on
page 4 - 102 for
proper EOLR
placement.

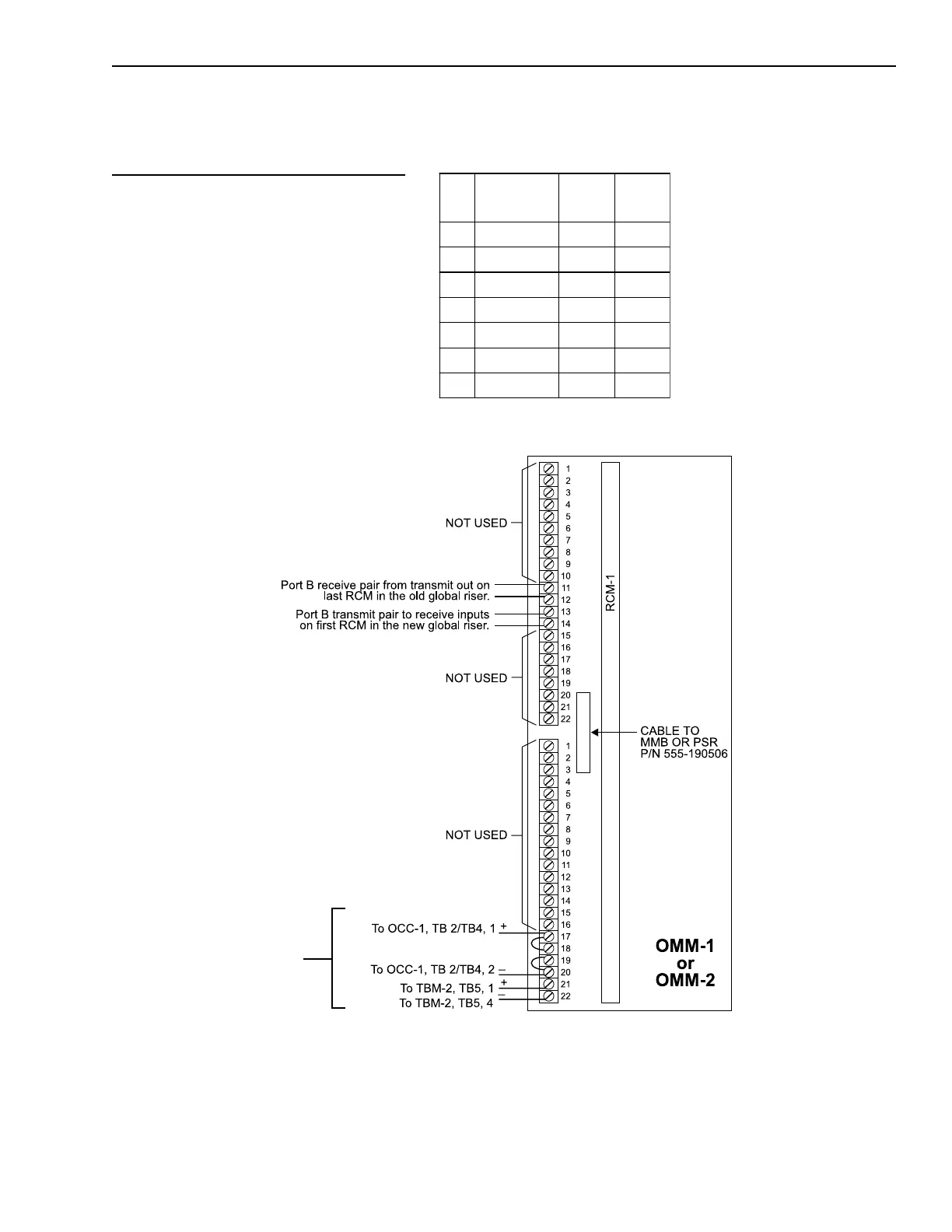

Style 4 Repeater Connection
The RCM-1 can be used as a repeater
when the required global riser exceeds
100 ohms. Do not install more than
two repeaters in any global riser.
Riser Repeater Wiring
(See Note 6)
S2 SETTINGS
SW Description
Location
B
Location
B
1
1 Copper config off off
2 Copper config on on
3 Copper config on on
4 Copper repeater on off
5Fiber config on on
6Fiber config on on
7 Style 7 on on
