4 - 106 Silent Knight Model 5128/5129 Connections and Ratings
NOTES
1. TRI-60R/B6R input
must be programmed
in CSG-M as trouble
causing.
2. TRI-60R/B6R output
must be programmed
in CSG-M to transfer
on loss of AC Mains.
3. All wiring supervised
except as noted.
4. For Remote Station,
provide 60 hour
battery capacity.

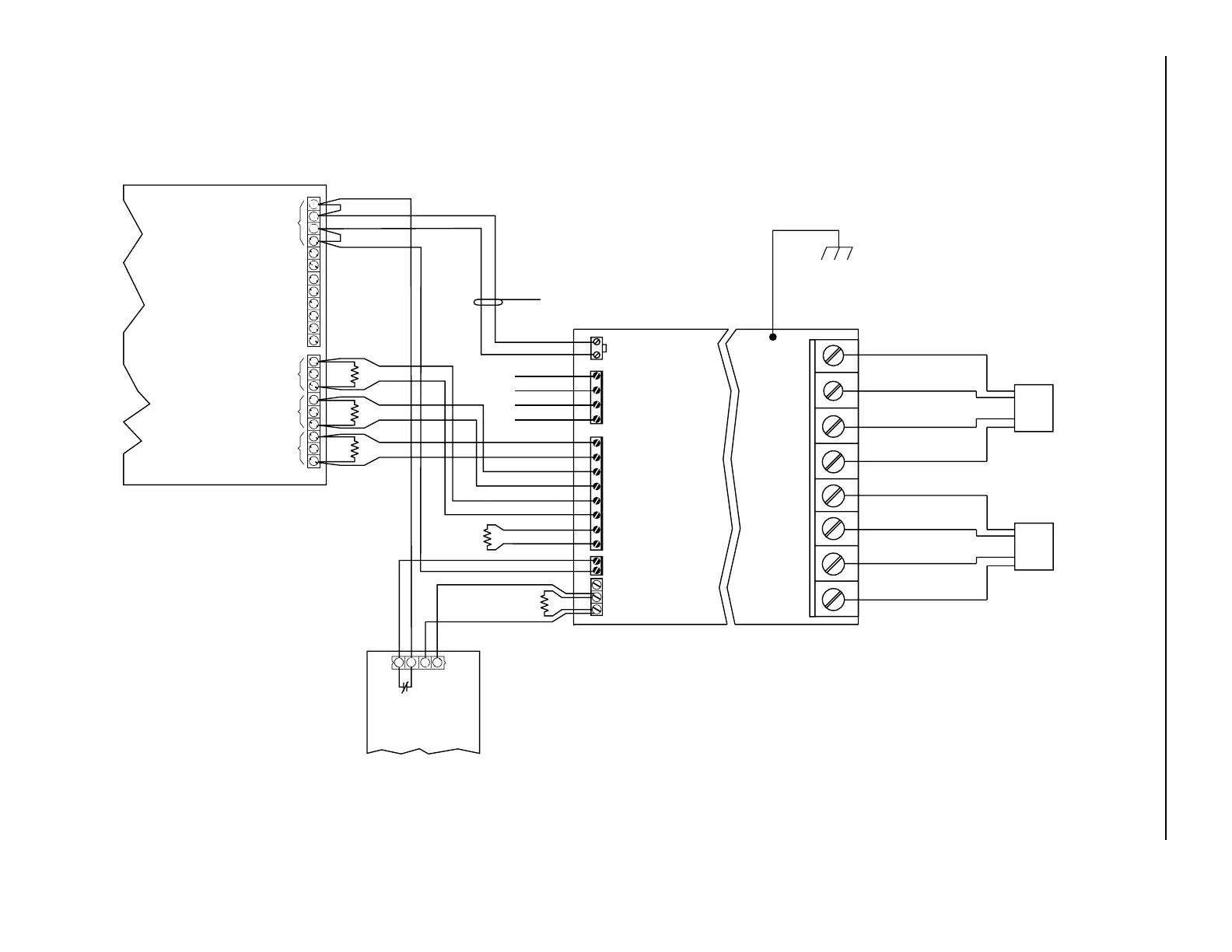

MXL to Silent Knight Model 5128/5129 Wiring Diagram
5
4
P1 - DC POWER
P4
P3 - AC MONITOR
(SEE NOTE 2)
RELAY NC
RELAY C
RELAY NO
(RED)
TELCO 1 RING (GREEN)
TELCO 1 TIP (RED)
HOUSE 1 TIP (GRAY)
HOUSE 1 RING (BROWN)
HOUSE 2 RING (BROWN)
HOUSE 2 TIP (GRAY)
TELCO 2 TIP (RED)
TELCO 2 RING (GREEN)
(BLK)
SILENT KNIGHT 5230
(PROGRAMMING)
P2 - CHANNEL INPUTS
(GRY)
(YLW)
(VIO)
(ORN)
(BLU)
(RED)
(GRN)
(BRN)
(YLW)
(ORN)
(RED)
(BRN)
(BLK)
(WHT)
SUPERVISED
SUPERVISED
TO RJ31X
TO RJ31X
SILENT KNIGHT
MODEL NO. 5128/29
CHASSIS
MMB-2
TRI-B6R
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
SUPERVISORY
TROUBLE
ALARM
TB4
TB5
CZM-1B6
POWER
36
NOT SUPERVISED
+
-
UL LISTED
EOL DEVICE
3.6K, 1/4W
(P/N 140-820185)
* UL LISTED
EOL DEVICE
4.7K, 1/2W, 5%
(P/N 140-820388)
*
*
*
*
