VSM-1/VLM-1/VFM-1 Connections and Ratings
NOTE:
The TBM-2 module is located in the
enclosure on the right side beneath the
PS-5N7. For more details, refer to the
PS-5N7 Installation Instructions,
P/N 315-092729.
6. Route the cable wires across the
hinge to the back of the enclosure.
Do not fasten the cable with a cable
anchor until all wiring is complete.

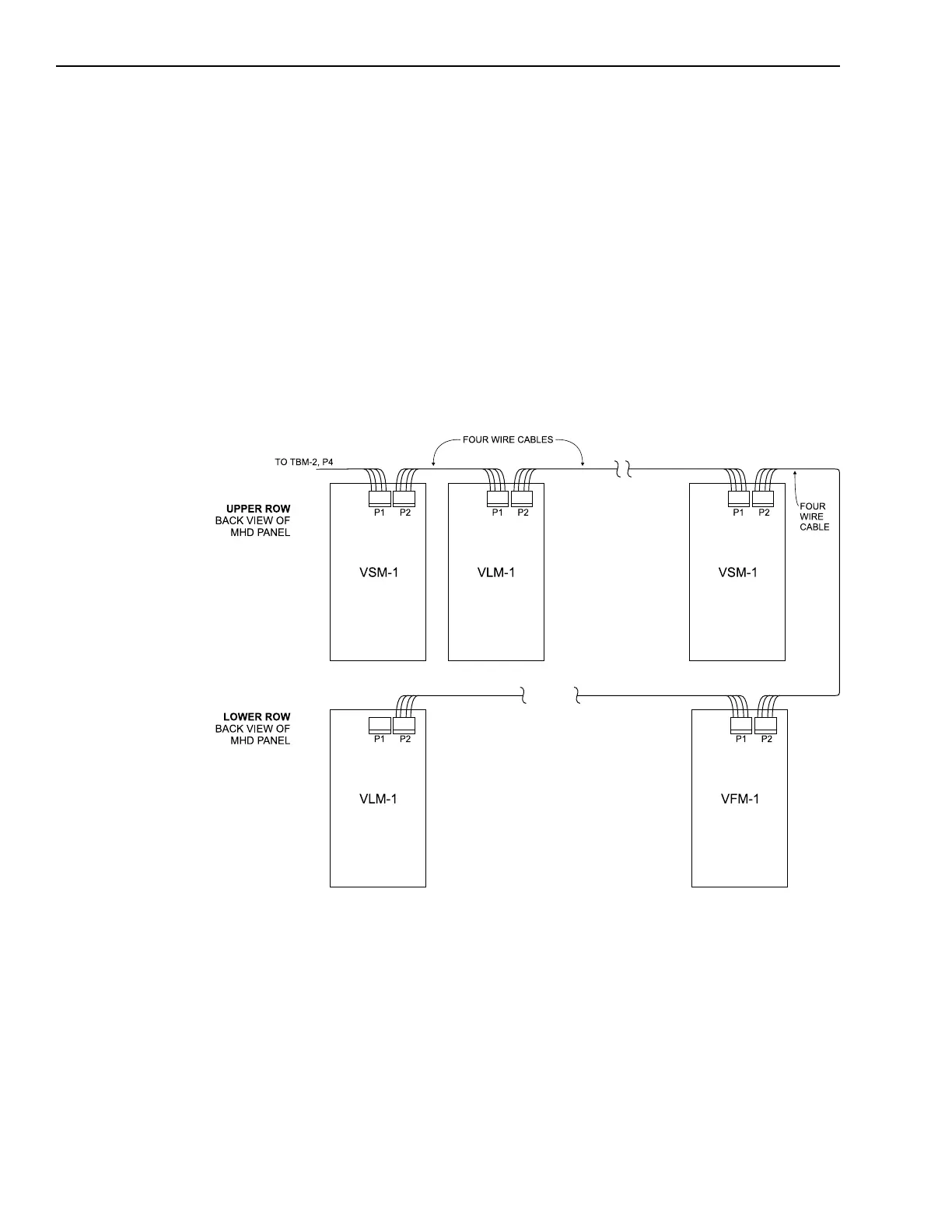

VSM-1 / VLM-1 / VFM-1 Wiring
