Siemens Standard application AHU CE1P3977en_02
Building Technologies Configuration 01.02.2010
15 Configuration
The desired plant designed is configured. We distinguish between three main
steps:
• Configuration 1.
• Configuration 2.
• Configuration I/Os.
Work through the three main steps in sequence.

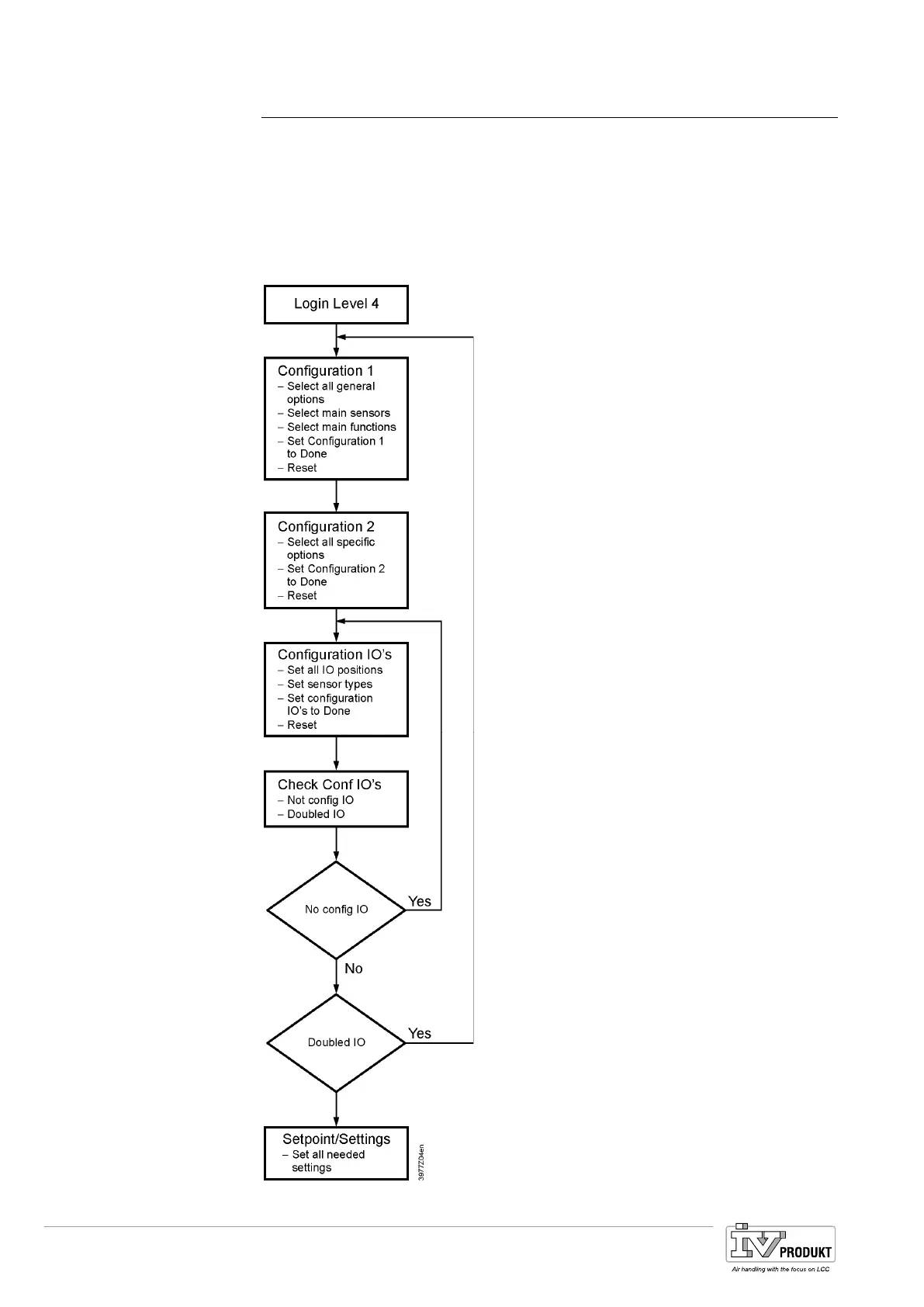

Three main steps:
Illustration
Basis Document Siemens Climatix Control System
BDCX.100820.01GB
Page 152
