23 / 244
Siemens Standard application AHU CE1P3977en_02
Building Technologies Hardware overview 01.02.2010

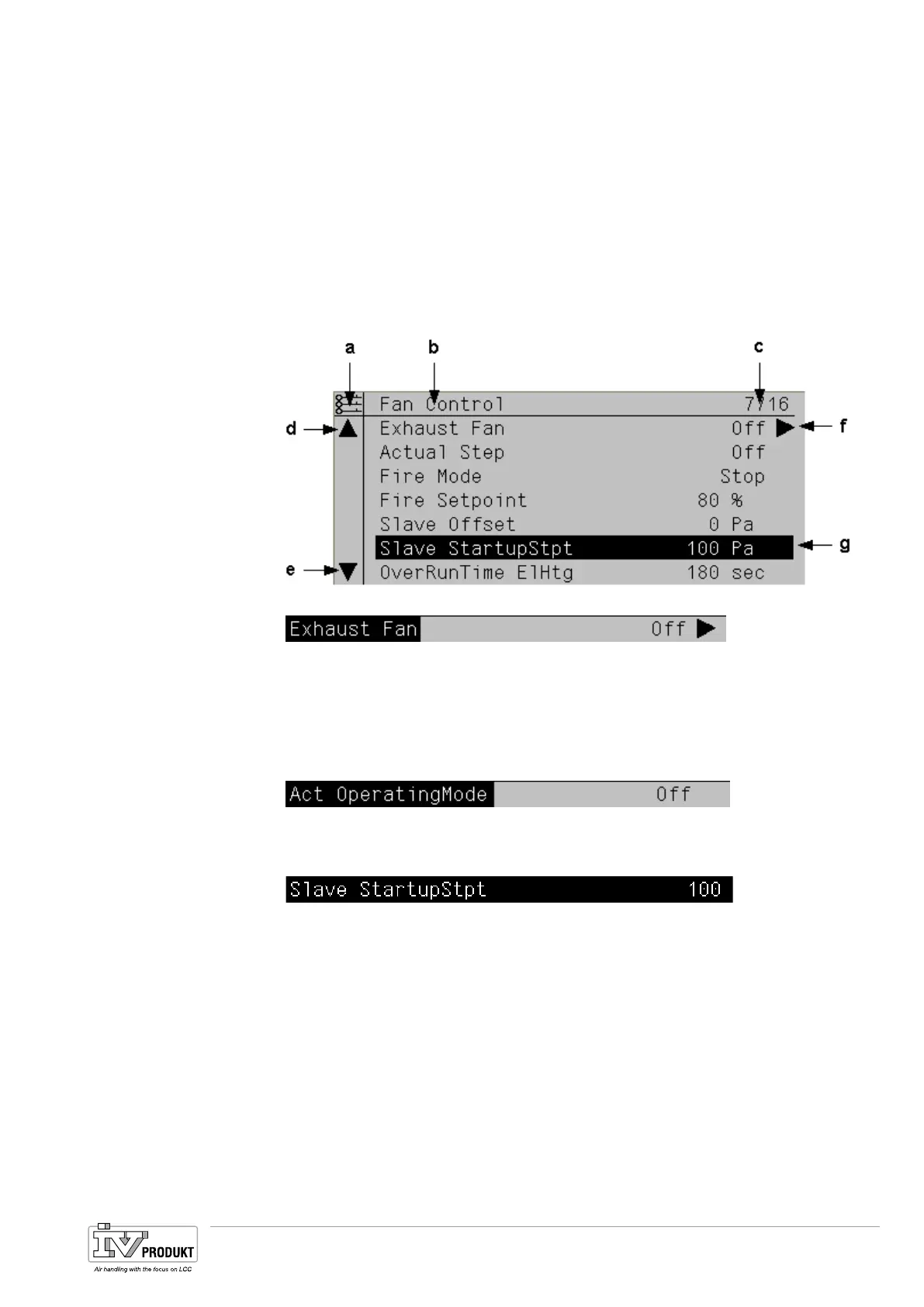

Display design:
a Present access levels:
- No symbol: No Level
- 1st key: Level 6
- 2nd key: Level 4
- 3rd key: Level 2.
b Title of displayed pages.
c 7: Number of selected lines; 16: Number of available lines for the page.
d Page includes additional lines above ---> You can scroll up.
e Page includes additional lines below ---> You can scroll down.
f Another level is located below this line. You can go to it.
g Currently selected line.
On navigation lines, the object is highlighted in black when selected. It displays the
present value for a component in front of the navigation arrow.
Navigation:
• Select line: Turn setting knob.
• Switch to level below: Press setting knob.
The object is also highlighted in black when selected for display lines (read only). It
displays the present value for a component.
The parameter name and its present value are highlighted in black for the paramet-
er setting lines.
Set value:
• Select line: Turn setting knob.
• To switch setting page: Press setting knob.
• Set the parameter value on the setting page: Turn setting knob.
• Exit setting page and assume changed parameter values: Press setting knob.
• Exit setting page without saving parameter values: Press ESC.
When only one value is selectable:
Display
Navigation lines
Display line
Setting lines
Set discrete parameter
values.
Basis Document Siemens Climatix Control System
BDCX.100820.01GB
Page 23
