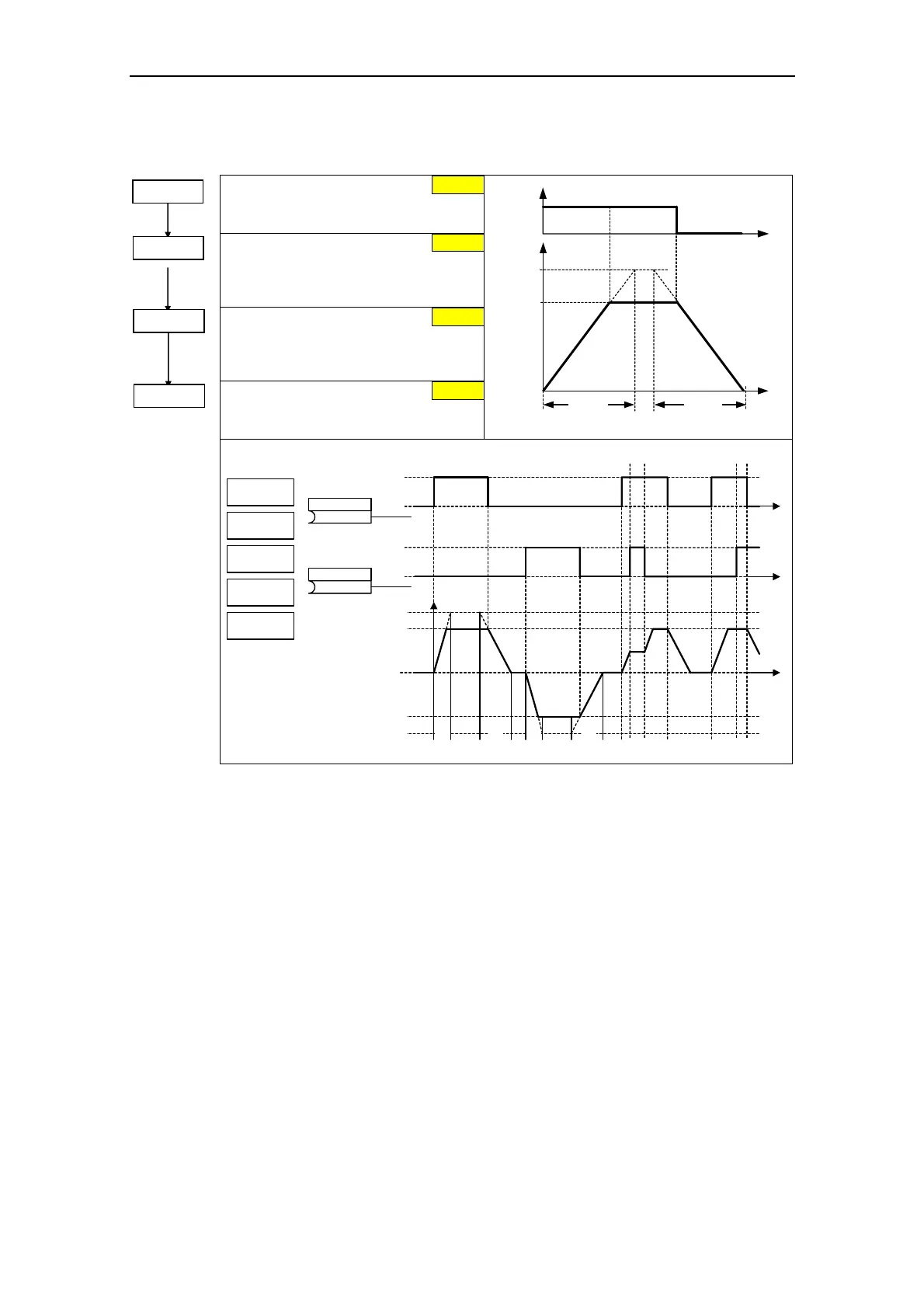

3.5.7.10 JOG
JOG frequency right
Frequency in Hz when the motor is
rotating clockwise in the jog mode.
JOG frequency left
Frequency in Hz when the motor is
rotating counter-clockwise in the jog
mode.
JOG ramp-up time
Ramp-up time in s from 0 to the
maximum frequency (p1082). JOG ramp-
up is limited by p1058 or p1059.
JOG ramp-down time
Ramp-down time in s from the maximum
frequency (p1082) to 0.
p1082
(f
max
)
p1058
t
p1060 p1061
f
JOG
Tippen rechts
f
P1058
P1059
A0923 A0923
P1060 P1060
(0)
P1055
(0)
P1056
"1"
"0"
"1"
"0"
t
t
t
P1061
DIN
BOP
USS
BOP link
USS
COM link
CB
COM link
Tippen links
P1082
-P1082
P1061
p1058 = ...
p1059 = ...
p1060 = ...
p1061 = ...
5.00 Hz
5.00 Hz
10.00 s
10.00 s
