Issue 10/06 2 Installation
MICROMASTER 440 Operating Instructions
6SE6400-5AW00-0BP0
31

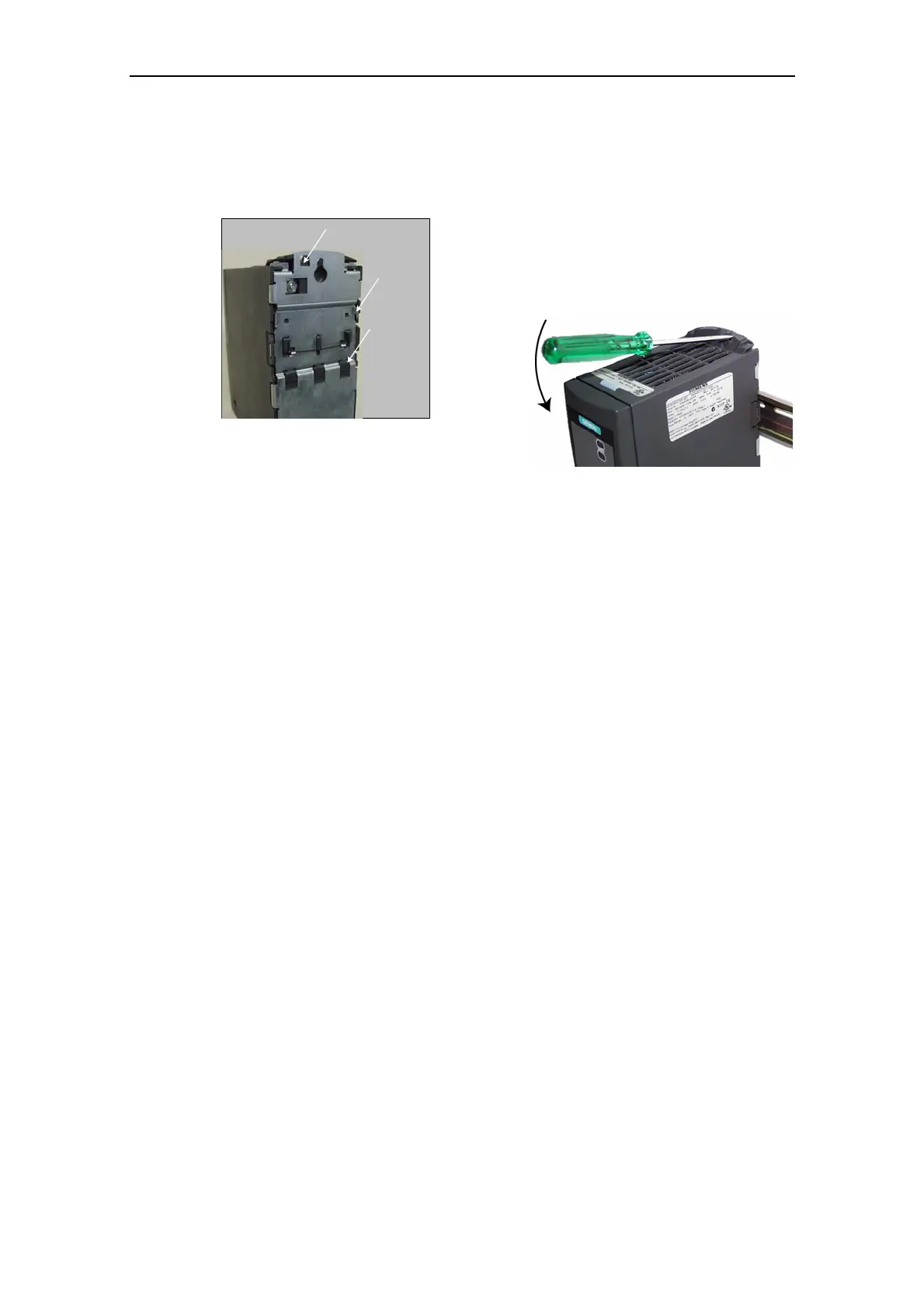

2.3.1 Mounting onto standard rail, Frame Size A
Mounting the inverter onto a 35 mm standard rail (EN 50022)
1. Locate the inverter on the mounting rail using
the upper rail latch
2. Using a flat blade screwdriver, press the
release mechanism downwards and engage
the inverter into the lower rail latch.
Removing the Inverter from the rail
1. To disengaged the release mechanism of the inverter, insert a screwdriver into
the release mechanism.
2. Apply a downward pressure and the lower rail latch will disengage.
3. Pull the inverter from the rail.
Upper
rail latch
Lower
rail latch
Release Mechanism
