Siemens MICROMASTER 440 User Manual

3 Functions Issue 10/06
MICROMASTER 440 Operating Instructions
90 6SE6400-5AW00-0BP0
Factory setting

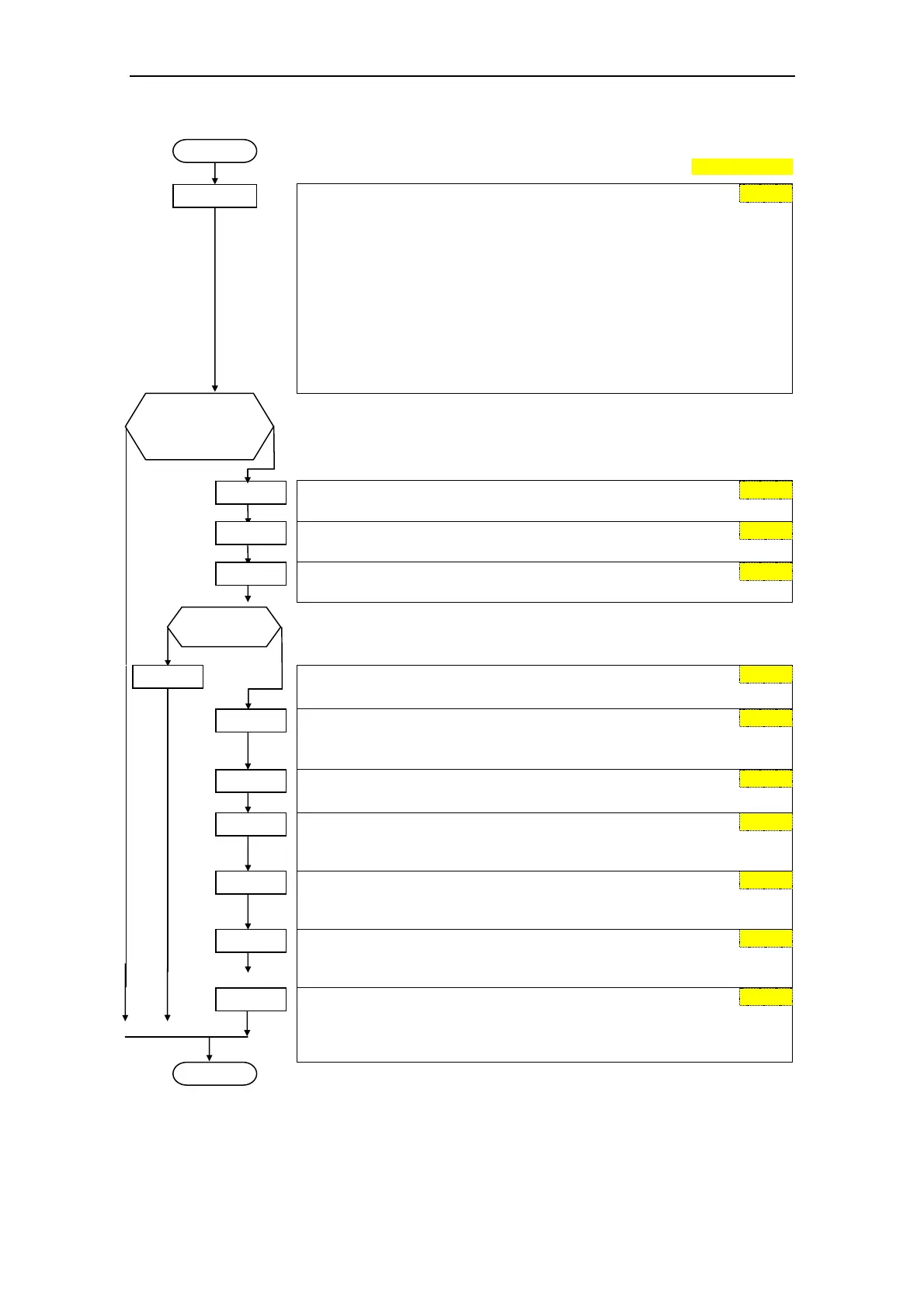

Calculation of motor parameters
This parameter is required during commissioning in order to optimize the
operating behavior of the drive inverter. For the complete parameterization
(P0340 = 1), in addition to the motor / control parameters, parameters are pre-
assigned which refer to the rated motor data (e.g. torque limits and reference
quantities for interface signals). A list of the parameters, which are calculated,
depending on the setting of P0340, are included in the parameter list.
0 No calculation
1 Complete parameterization
2 Calculation of equivalent circuit data
3 Calculation of V/f and Vector control data
4 Calculation of controller settings only
no yes
Motor inertia [kgm
2
]
Total/motor inertia ratio
Motor weight (entered in kg)
no yes
Calculation of motor parameters
4 Calculates the controller setting (refer to parameter P0340)
Stator resistance (line-to-line) (entered in Ω)
Stator resistance in Ω of the motor which is connected (from line-to-line). This
parameter value also includes the cable resistance.
Rotor resistance (entered in Ω)
Defines the rotor resistance of the motor equivalent diagram (phase value).
Stator leakage inductance (entered in mH)
Defines the stator leakage inductance of the motor equivalent diagram
(phase value).
Rotor leakage inductance (entered in mH)
Defines the rotor leakage inductance of the motor equivalent diagram
(phase value).
Main inductance (entered in mH)
Defines the main (magnetizing) inductance of the motor equivalent diagram
(phase value).
Calculation of motor parameters
3 Calculation of V/f and Vector control
All of the parameters, dependent on the ECD data are calculated and, in
addition, the controller settings (P0340 = 4).
The motor parameters have been calculated and it is now possible to return to
the additional parameterization in the Section 3.5.7 "Commissioning the
application".
P0342 = ...
P0344 = ...
P0341 = ...
P0354 = ...
P0356 = ...
P0358 = ...
P0360 = ...
P0340 = 3
Additional Cata-
log and/or ECD
data known ?
P0350 = ...
END
ECD data
known ?
P0340 = 4
P0340 = 1
START
0
FU-spez.
FU-spez.
FU-spez.
0
FU-spez.
FU-spez.
FU-spez.
FU-spez.
FU-spez.
0

Siemens MICROMASTER 440 Specifications

General

Power Range	0.12 kW to 250 kW
Output Voltage	0 V to Input Voltage
Output Frequency	0 Hz to 650 Hz
Control Modes	Vector control
Overload Capability	150% for 60 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	PROFIBUS, DeviceNet, CANopen, Modbus RTU
Enclosure Rating	IP20
Ambient Temperature	-10°C to +50°C
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
