Communications configuring
3-64 System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
It is assumed that you are knowledgeable about configuring SIMADYN D
as well as the CFC configuring language.
NOTE
Only those activities are described in detail which are of significance for
this particular configuration. Versions or additional components are
touched-on but not discussed in detail. In the text, these positions are
identified with the symbol located on the right.
The following subjects are discussed in this application example:
• Typical configuration
Description of a typical configuration for SIMADYN D connected to
PROFIBUS DP with the associated system requirements.
• Configuring under CFC
Grouping of the PROFIBUS DP specific blocks and their configuring in
the typical configuration.
• Configuring the SS52... communications module
Configuring the SS52 communication module using the COM
PROFIBUS 3.0 parameterizing software and the download tool
"SS52load".
3.5.3.4 Typical configuration and system requirements
The following systems and devices are selected as typical configuration,
whereby the specified PROFIBUS addresses were randomly defined:
SS 52
SIMADYN DSIEMENS
S 01 S 02 S 03 S 04 S 05 S 06 S 07
S 08
S 09
S 10 S 11
S 12
CS 7
SI EMENS
SI EMENS
SIEMENS
SIEMENS
SIMATIC S5
IM 308-C
Station 11
ET 200U
Station 51
ET 200B
Station 71
MASTER DRIVE
Station 1
Station 4
PM 5

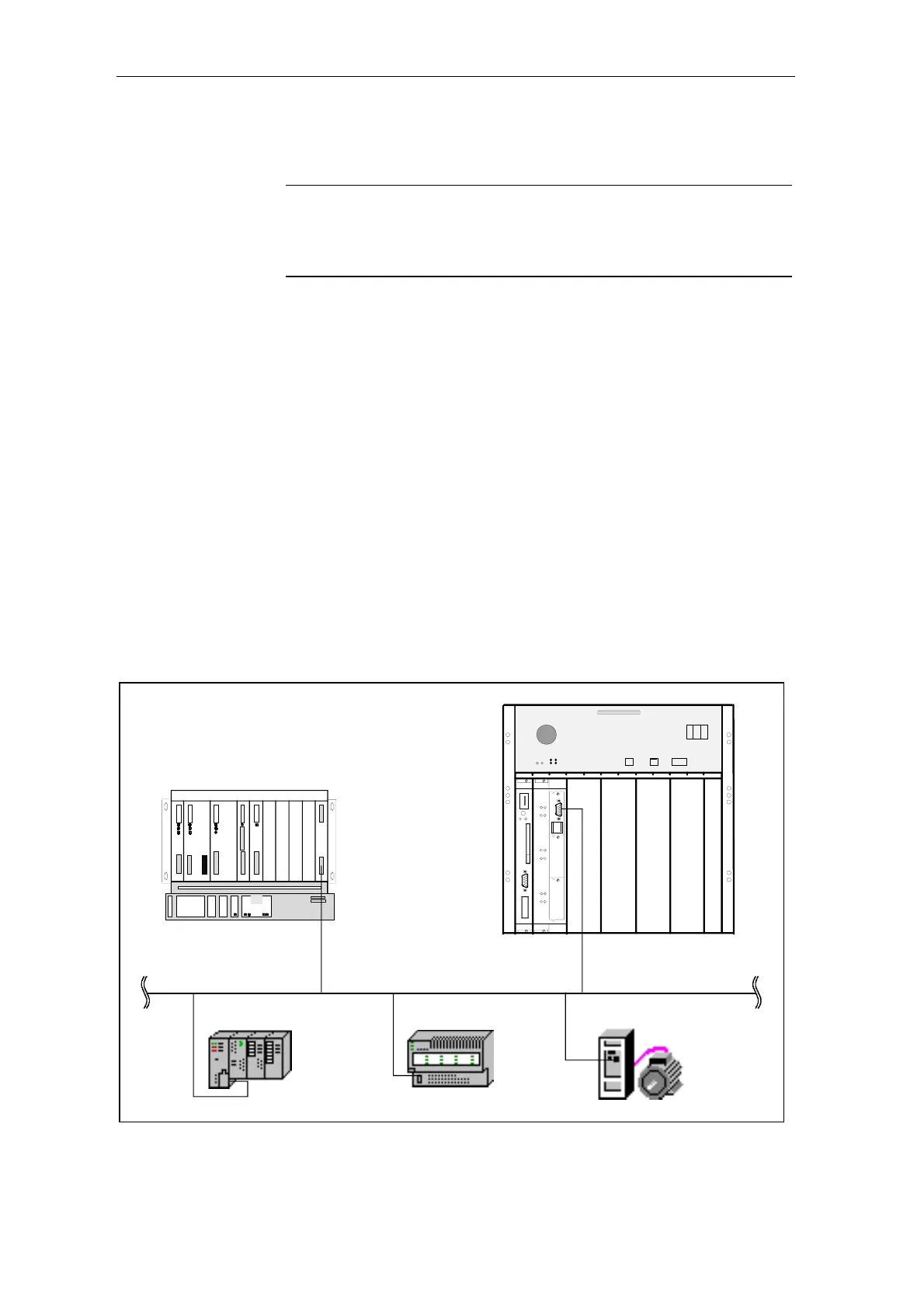

Fig. 3-18 Typical configuration
