Siemens SIMADYN D User Manual

Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-167
Edition 12.2003
3.17.4.1 Configuring the SIMOLINK coupling under STEP 7
For SIMATIC FM 458 with EXM 448-1, the basic clock cycle T0, possibly
the interrupt task Ix and the symbolic hardware assignment for the
SIMOLINK are set in the HW Config of STEP7 in the properties dialog
box.
NOTE
The EXM 448-1 expansion module should be configured as EXM 448
in HWConfig.

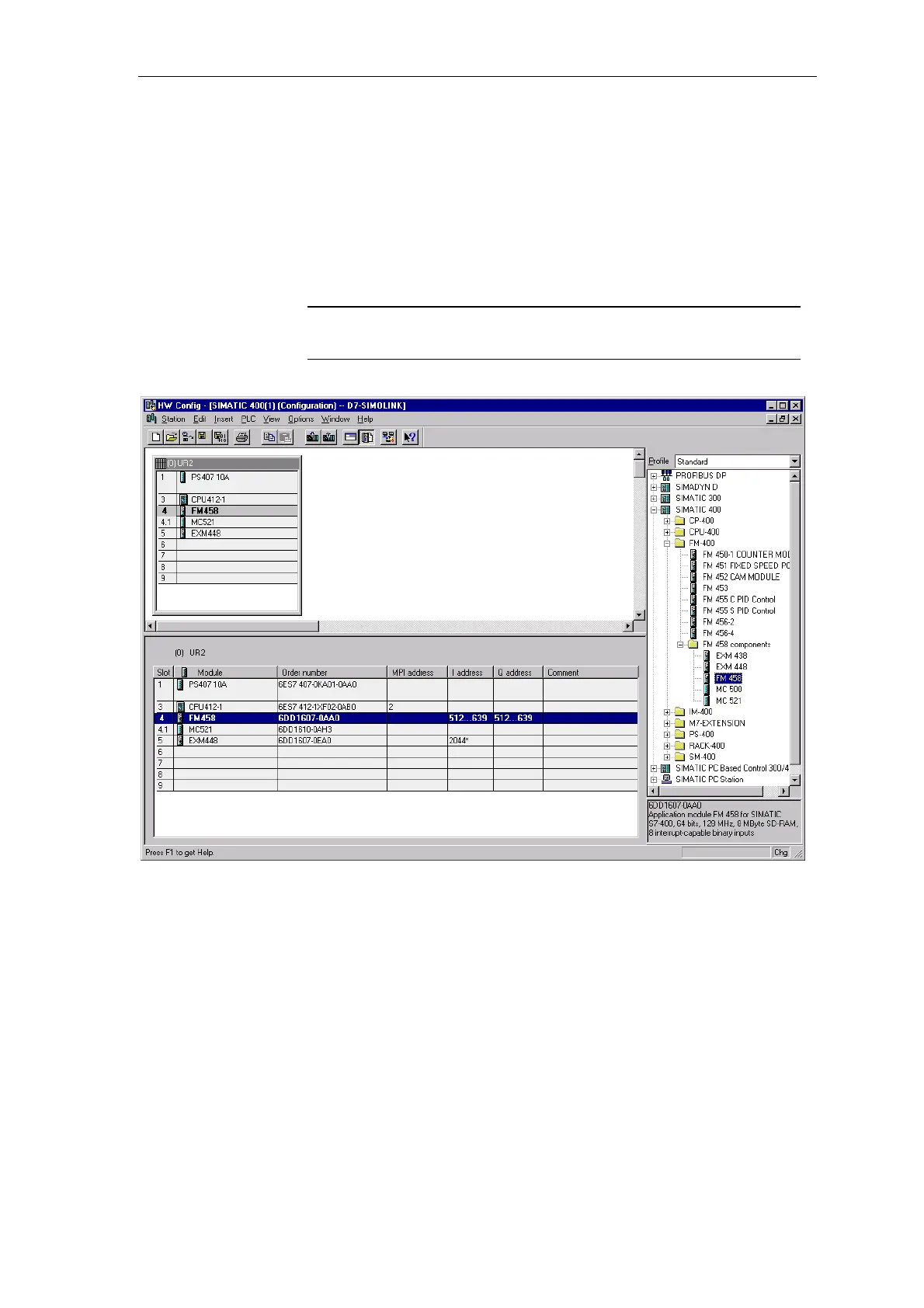

Fig. 3-62 Configuring for FM458 with EXM448-1
