Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-207
Edition 12.2003
Tables, which are generated using MS Excel and are saved in the *.csv
format or as "Text (Tabs separate)“ fulfill these conditions.
The following diagram shows two example files with table values which
were saved in the csv format:

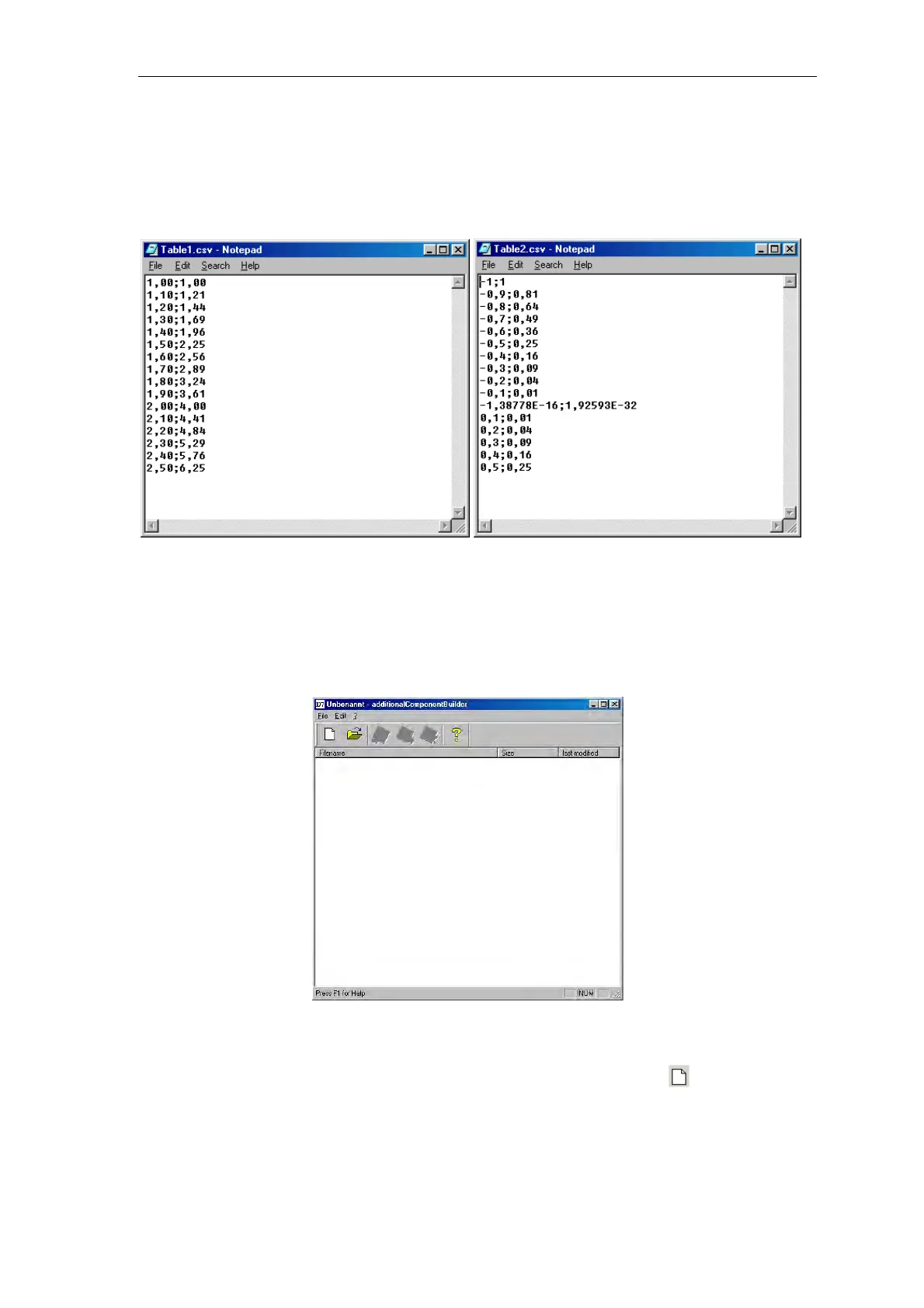

Fig. 3-88 Table values which were separated using semicolons (*.csv format)
3.18.4.2 Working with the D7-SYS additionalComponentBuilder
After the table files were saved in the csv format, they can be imported in
the D7-SYS additionalComponentBuilder.
Fig. 3-89 D7-SYS additionalComponentBuilder
In the next step, a new component file is set-up with . To start, the
properties are specified in the following dialog field.
Saving tables
