Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-295
Edition 12.2003
• Only the relevant connections are listed in the following configuring
tables.
3.27.2.2.1 Initializing the OP7
The function blocks @CSMPI and S7OS are connected to the configured
coupling module (SS52-MPI on CS7) via the
CTS inputs. This establishes
the connection between SIMADYN D and OP7.
FB Connection Connection assignment (significance)
@CSMPI CTS D0200C.X01
(global operand, module name)
S7OS CTS D0200C.X01
(global operand, module name)
US testop.01 (address parameter)
Table 3-95 Connection assignment @CSMPI and S7OS

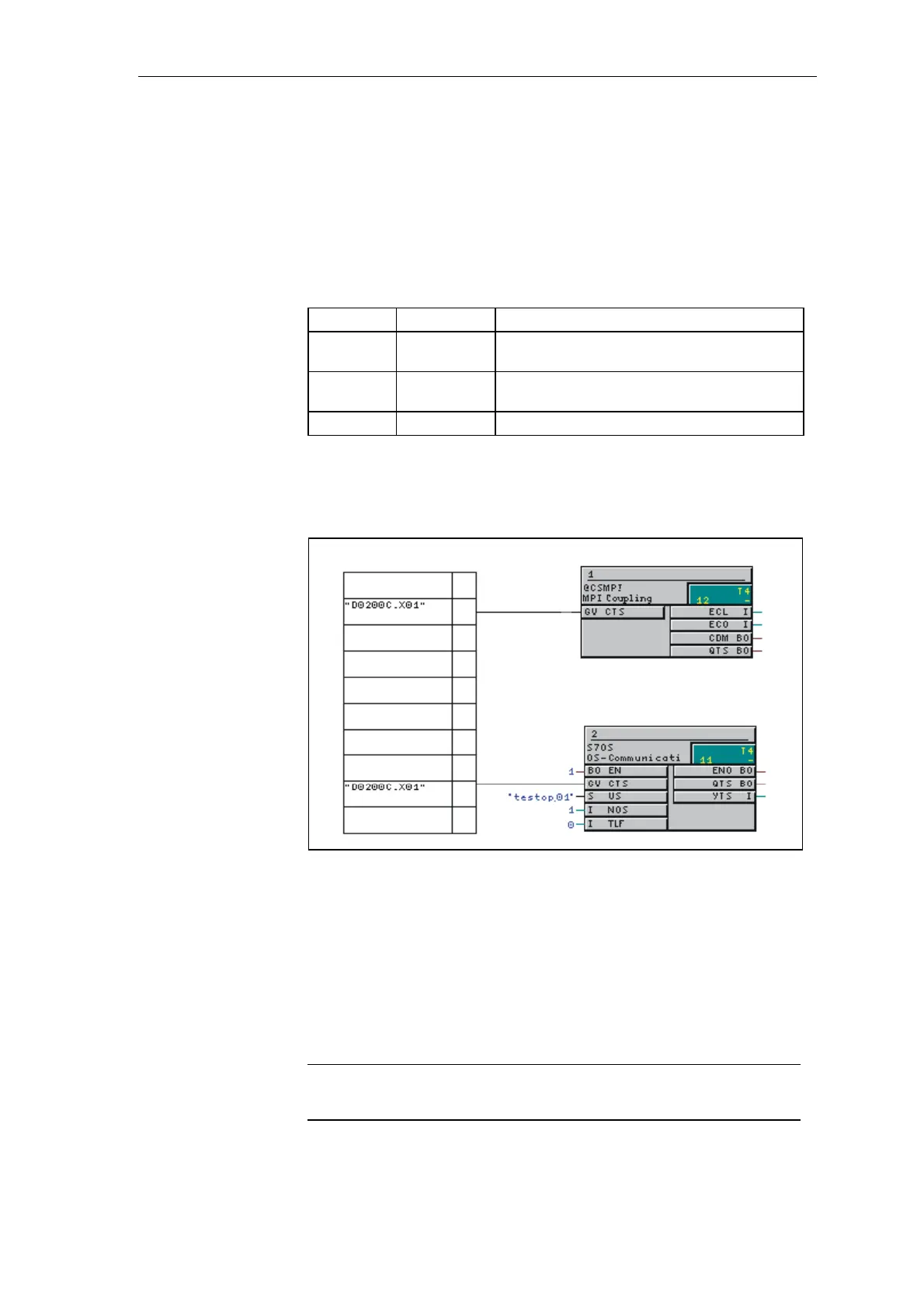

Fig. 3-119 Initializing the OP7 on the MPI bus
3.27.2.2.2 Reading function block connections (I/O)
A counter was configured for this function, which continually increments
from the initial value ("0") up to a final value ("50"). It then automatically
resets itself and starts again from the beginning. Output
Y (counter
status) of the
CTR is interlocked with a global operand (OP connection),
whose contents are read-out at OP7.
NOTE
The flag No., specified under SIMADYN D for the OP connection, must
also be assigned the configured variables under ProTool/Lite.
Brief description
Configured
software
CFC chart
Brief description
