Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-301
Edition 12.2003
3.27.2.3 Importing the symbol table
While configuring the CPU in HWConfig an empty symbol table is
automatically set-up, which will later accept the symbol names configured
using CFC. The file with the symbol names must then be imported into
the symbol table when the CFC has been configured.

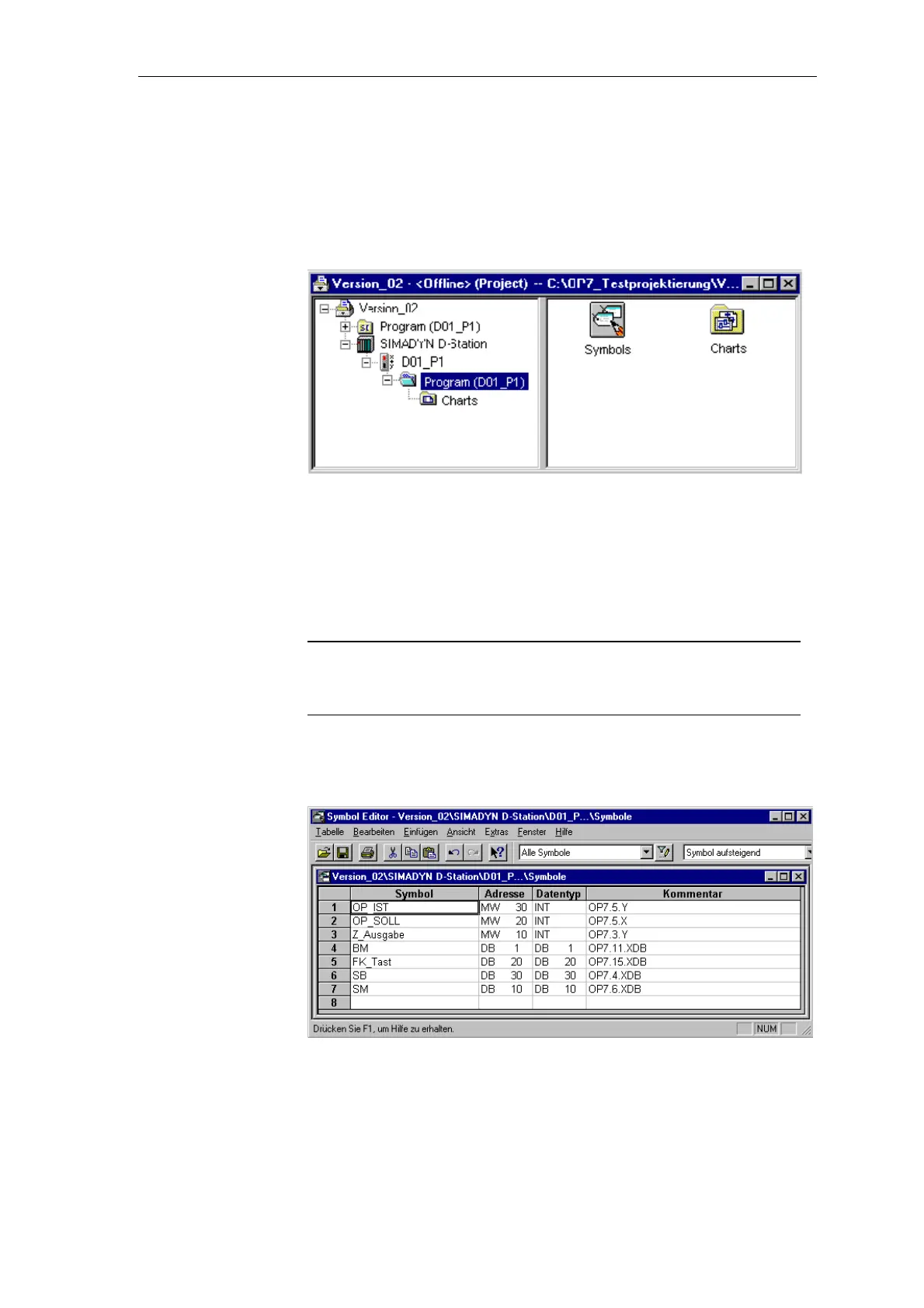

Fig. 3-126 "Symbol" icon in the chart container
The symbol editor is opened from the chart container by double-clicking
on "Symbols".
The symbol file (symbol.asc) is loaded in the symbol table using the
menu command "Import table...".
NOTE
If changes are made in the symbol file in the CFC between two
compilations, then a message to this effect is output. This message can
also be taken from the actual memory path of the symbol file.
The following diagram shows the complete symbol table of the test
software after having been imported:
Fig. 3-127 Symbol table with imported symbol file
The symbol table is saved and the operation completed using "Save
table".
General
information
Symbol editor
