Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-79
Edition 12.2003
− ET 200 B
Compact type of construction with eight digital outputs and eight
digital inputs: One byte in the transmit telegram and one byte in the
receive telegram. The IDs are specified by the module selection.

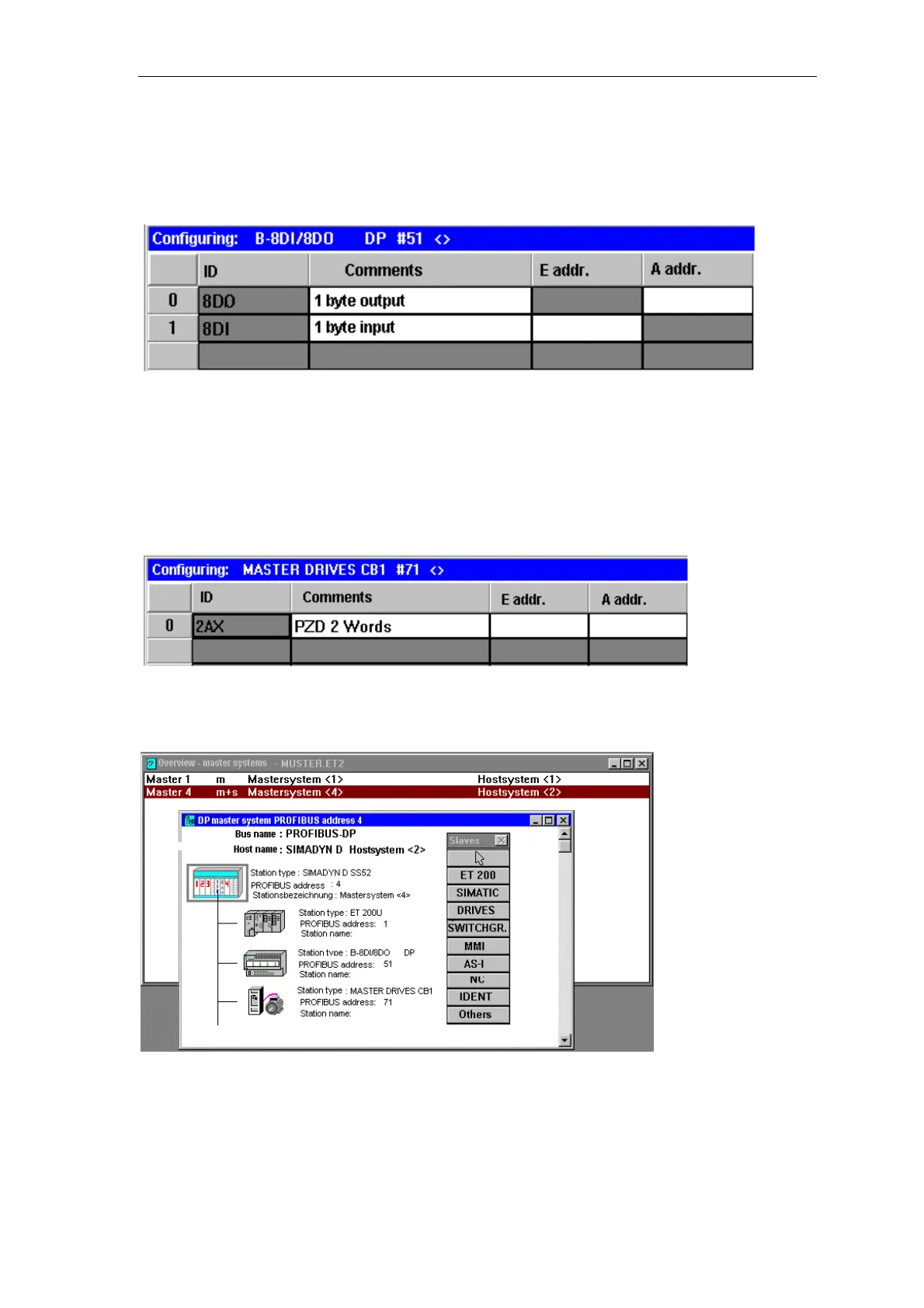

Fig. 3-34 "Configuring" window
− SIMOVERT Master Drive
Slave with intrinsic intelligence: Depending on the drive converter
setting, five different telegram structures (PPO types) are
permitted. These must be defined when configuring and can no
longer be changed. (Fields have a grey background and are
therefore inactive)
Fig. 3-35 "Configuring" window
5. After configuring has been completed, the display should look like this:
Fig. 3-36 Window, "DP master system, PROFIBUS address"
