(3) Entering the tabular values
The required tabular values can now be entered. It should be ensured
that the X and Y values are entered, alternating.
To start, the data type, used in the table, should be entered (REAL or
DINT). In this case, the name is always "Data type", "WORD" type and
initial value for data type REAL "W#16#1", for data type DINT "W#16#2".
Then, for each individual tabular value, the name, data type ("Type"
column) and value ("Initial value" column) should be entered.
The procedure when entering tabular values, data type REAL, is shown
in the following diagram:

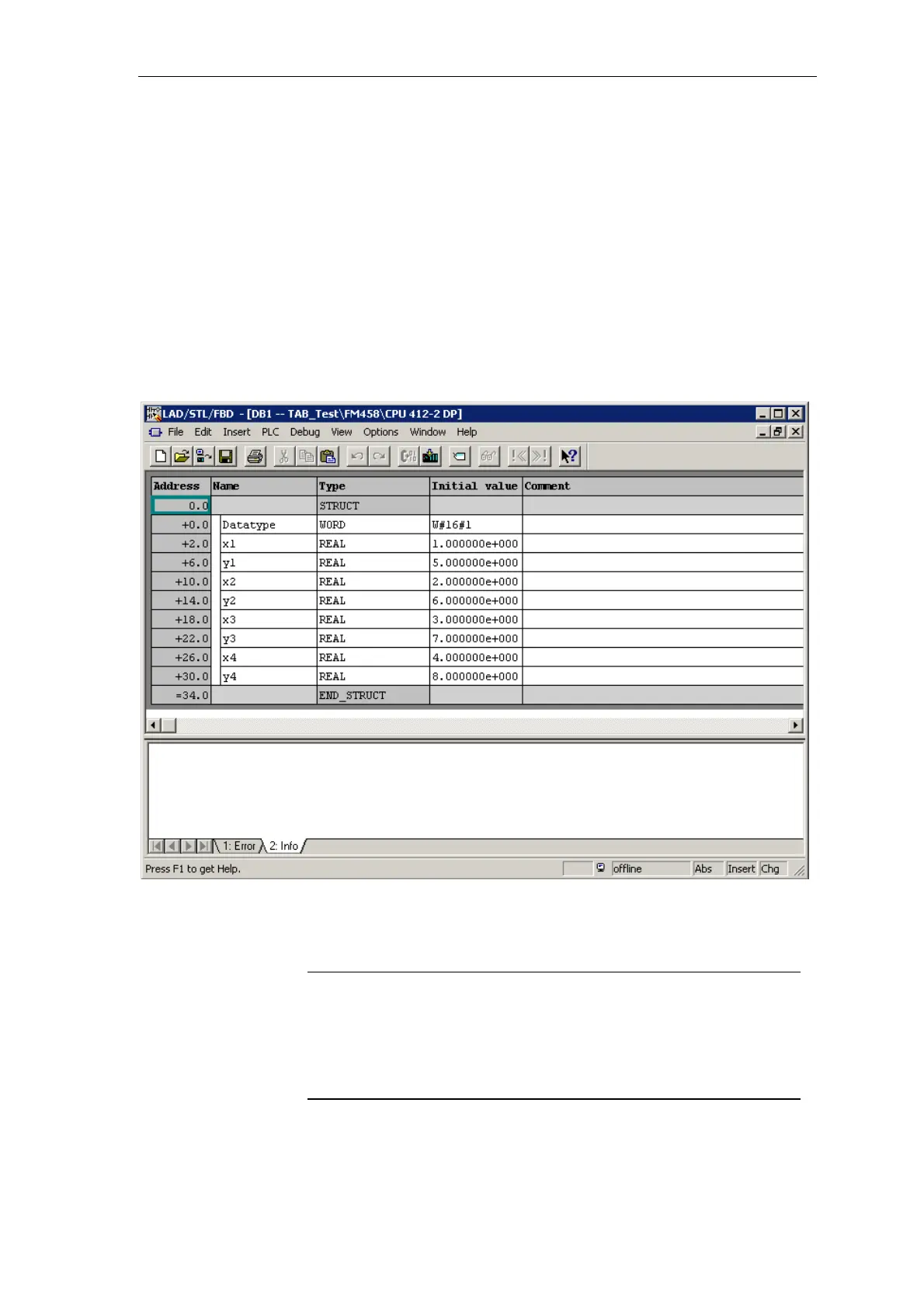

Fig. 3-73 Manually entered tabular values in the "LAD/STL/CSF" application
HINWEIS
Only values associated with the same data type may be included in a
table. For this reason, specifying an ARRAY is an effective way of
entering data. This means that the data type doesn’t have to be
specified each time.
Refer to the online help of the application "LAD/STL/CSF" - especially
"Help for STL" for the procedure to make entries for an ARRAY type.
