Communications configuring
3-226 System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
• “DRIVE ES” or “DRIVE Monitor“
Configuring software for drives and software for parameterization
3.19.2.2 Communications behavior
The FM 458 applications module can be configured in a SIMATIC S7-400
rack together with one or two communication expansion modules EXM
448. An option module, e.g. CBP2, can be inserted in the free slot X02.
The CBP2 can be used to send and receive parameter tasks.
FM 458
EXM 448
@FMPAR
CBCONF
CBRFAW
SIMATIC S7-400 subrack
Function blocks
EXM 448
X01
DP
X01
DP
X02
CBP2
X02
CBP2
PS S7-400
LE bus LE bus
CTV
CRV
@FMPAR
CBCONF
CBRFAW
CTV
CRV

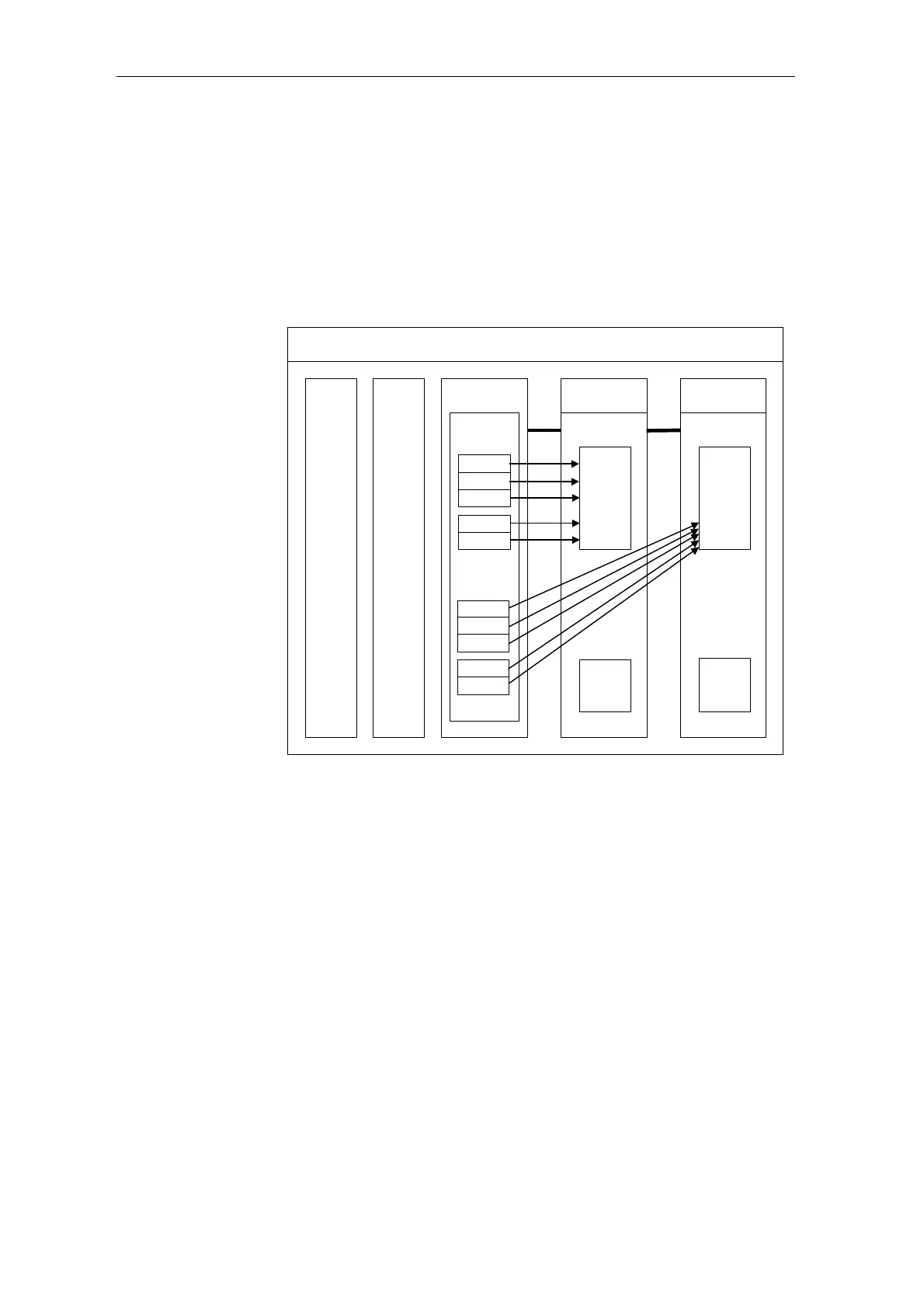

Fig. 3-98 Schematic diagram of the FM 458 application module with two EXM 448
communication-expansion modules
3.19.2.3 Generating the hardware configuration
You require the following hardware to parameterize the SIMATIC FM 458
modules:
• Subrack for S7-400
• Power supply module for the S7-400
• Central module (CPU) for S7-400
• FM 458 application module for SIMATIC S7-400
• EXM 448 communications-expansion module
