Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-293
Edition 12.2003
• Output of alarm messages including acknowledgment
• Interrogating the function keyboard
• Updating date and time
The following equipment and components are selected and located as
follows for the configuration example:
SIEMENS
SIMATIC OP7
7 8 9
654
1 2 3
. 0 +/-
SHIFT
INS
DEL
HELP
ESC
ACK
ENTER
F1
K1
F2 F3 F4
K2 K3 K4
SS 52
SIMADYN D SIEMENS
S 01 S 02 S 03 S 04 S 05 S 06 S 07
S 08
S 09
S 10 S 11
S 12
PM 5
CS 7
SIEMENS SIEMENS
SIEMENS
3
2
1
5
4
7
6
1
2
3
4
Subrack SRT6
Processor module PM5
Program memory submodule MS5
Communications module CS7
5
6
7
Communications submodule SS52
SIMATIC Operator Panel OP7PP
MPI bus cable

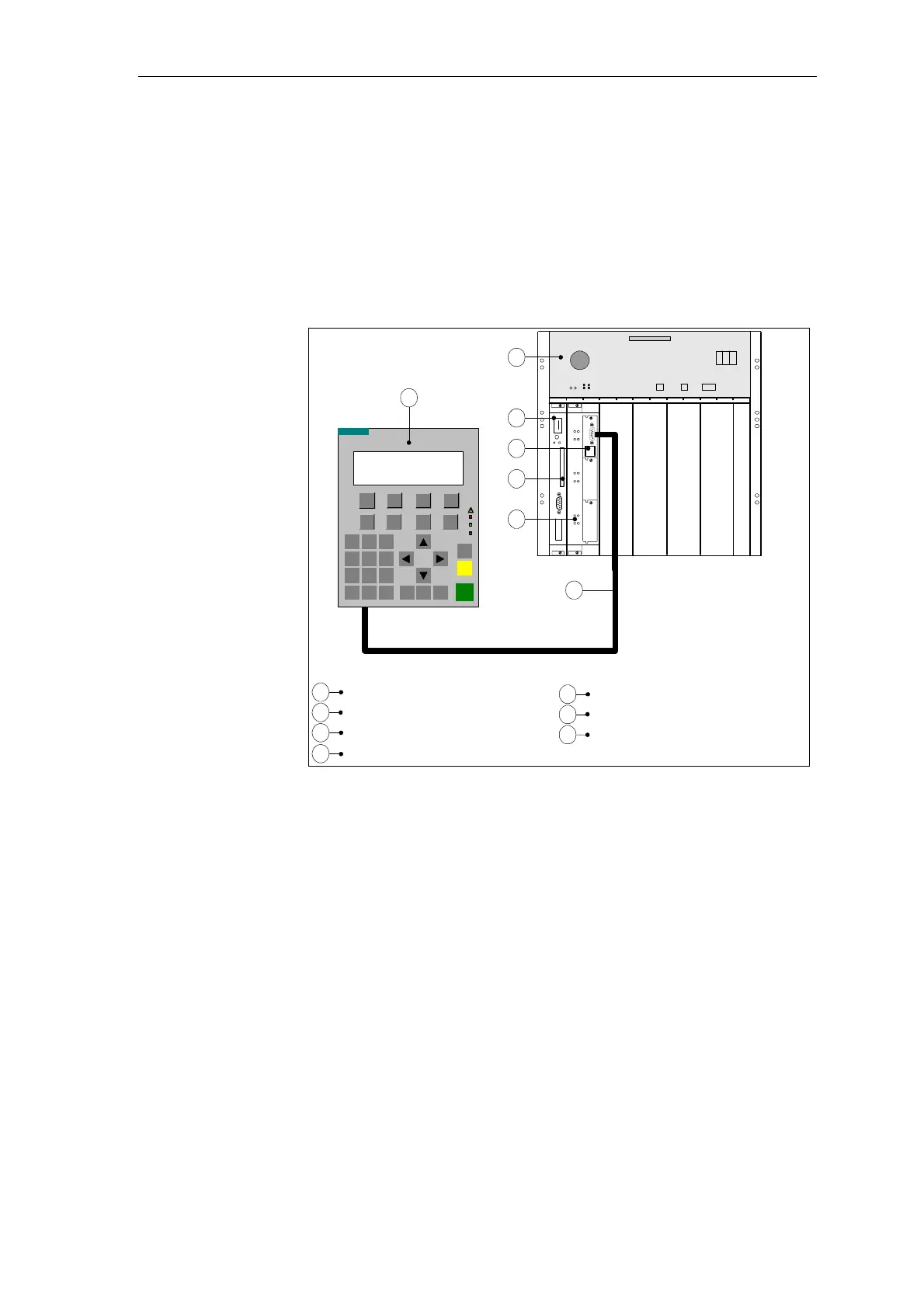

Fig. 3-116 Setting-up the configuring example
3.27.2 Configuring SIMADYN D
All of the configuring, which involves SIMADYN D, is made in the
SIMATIC Manager. The work is divided into the "Selecting components in
HWConfig" and "Configuring with CFC" sections.
3.27.2.1 Selecting the components in HWConfig
The configuration example is configured in HWConfig. The standard
program inputs can be accepted. The only changes involved:
• Sampling time T4 of the PM5 = 64ms
Hardware
General
information
