Compatibility Between the IM 153-x Modules
9-8
Distributed I/O Device ET 200M
EWA-4NEB780600602-06

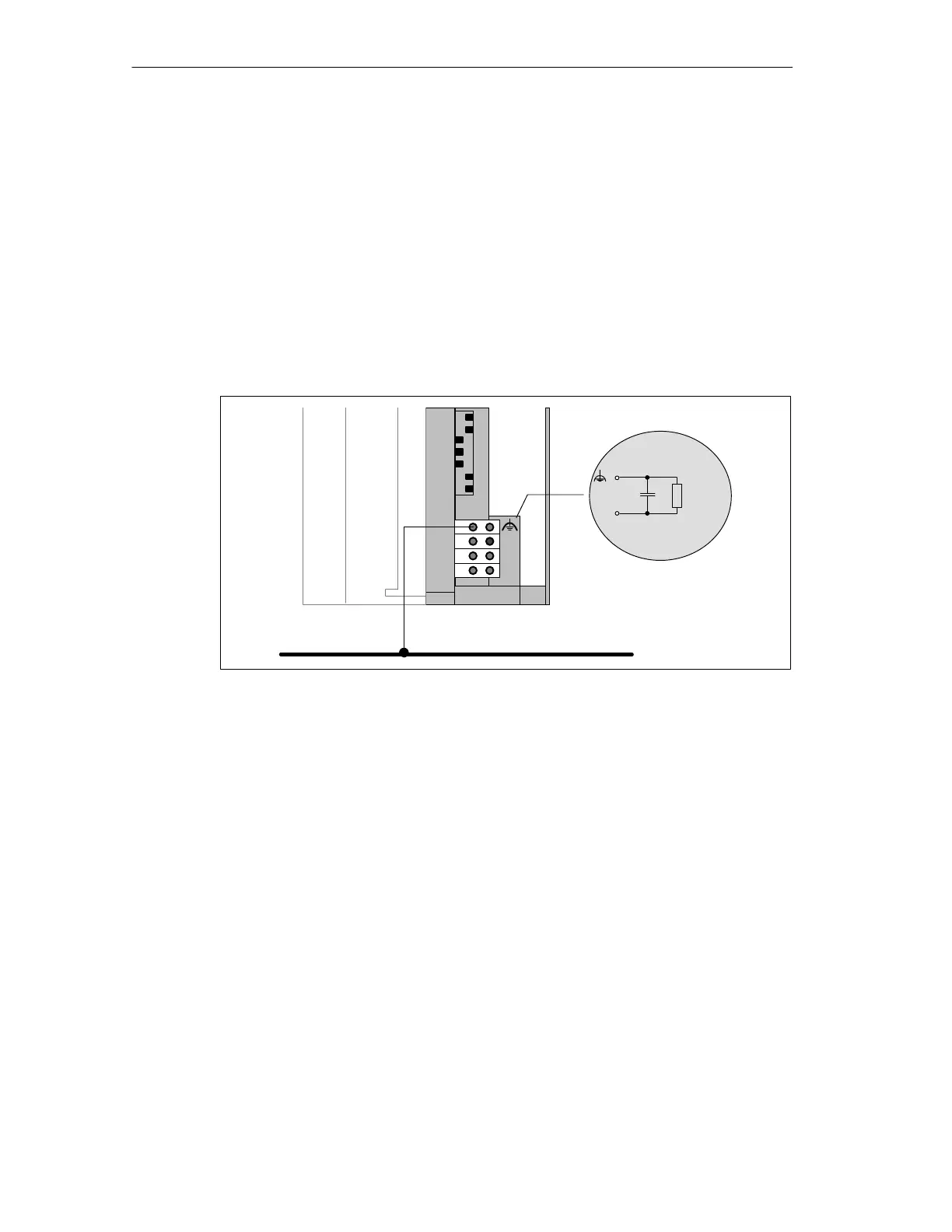

9.3 RC Network with 1 MW for a Configuration with
Ungrounded Reference Potential
For more on the principle behind this, please read Section 5.1.3.
The following IM 153-x modules have a resistance of 1 MΩ in the RC network:
IM 153-1 up to and including
153-1AA02, version 07
153-1AA82, version 06
IM 153-2 up to and including
153-2AA01, version 02
24 V DC
M
L
+
M
Ground bus
M
22 nF 1 MW
The Following Applies to This IM 153-x:
You can operate a maximum of 18 nodes on the PROFIBUS-DP in an
ungrounded configuration on one power supply.
If there are more than 18 nodes, you must use an additional power supply.
Subsequent Versions
All subsequent versions have a resistance of 10 MΩ in the RC network.
