Overview
1.2 Design of the device
SIMATIC IPC547D
14 Operating Instructions, 06/2011, A5E03473780-01

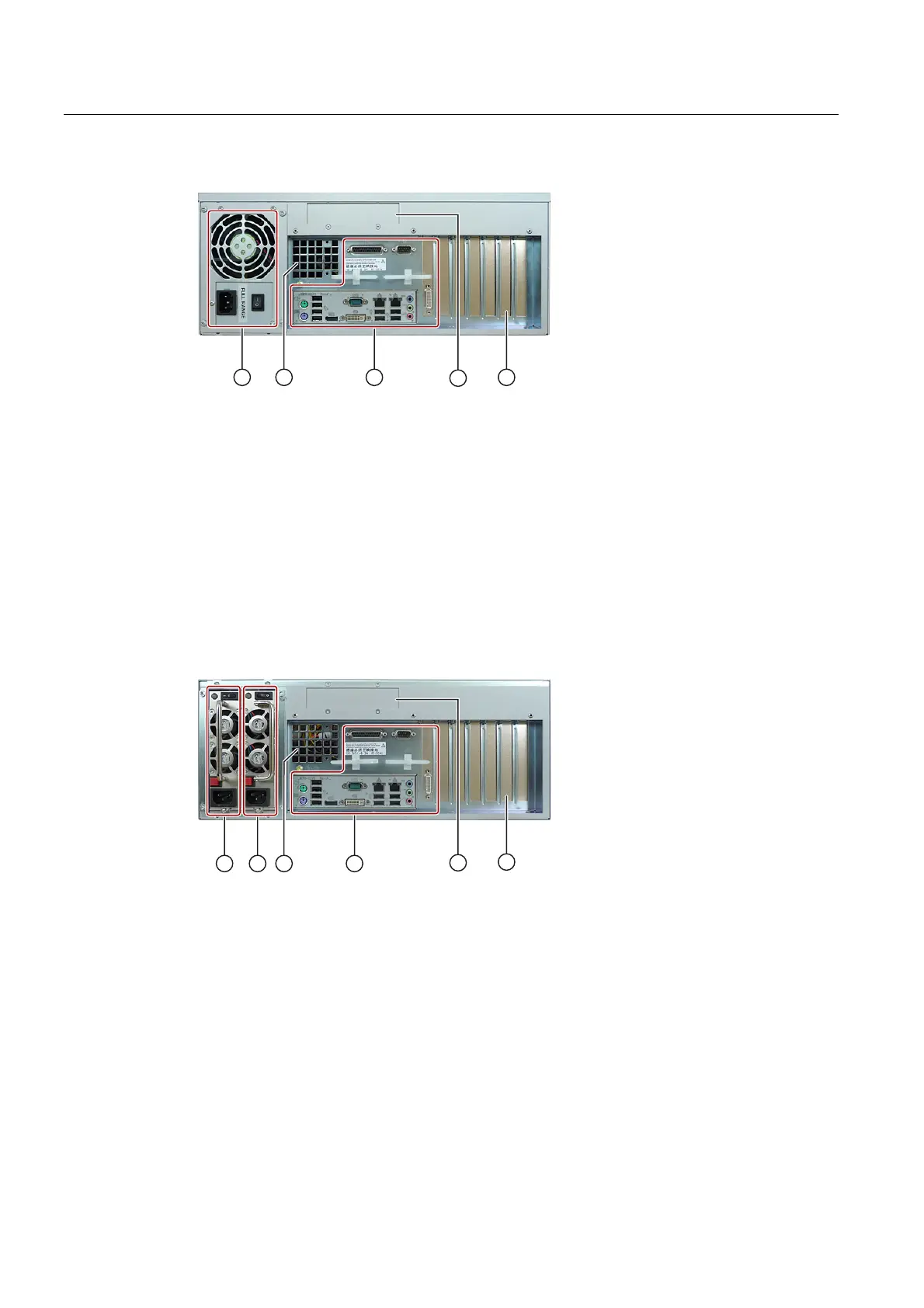

Rear view



①
Power supply
②
Air outlet
③
Interfaces
④
Blanking plate, allows installation of external interfaces
⑤
Expansion slots for:
 4 × PCI
 1 × PCIe x8 (1 Lane)
 1 × PCIe x16 (4 lanes)
 1 × PCIe x16
Rear view with redundant power supply
 


①
Power supply 1
②
Power supply 2
③
Air outlet
④
Interfaces
⑤
Blanking plate, allows installation of external interfaces
⑥
Expansion slots for:
 4 × PCI
 1 × PCIe x8 (1 Lane)
 1 × PCIe x16 (4 lanes)
 1 × PCIe x16
