Overview
1.2 Design of the device
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
15

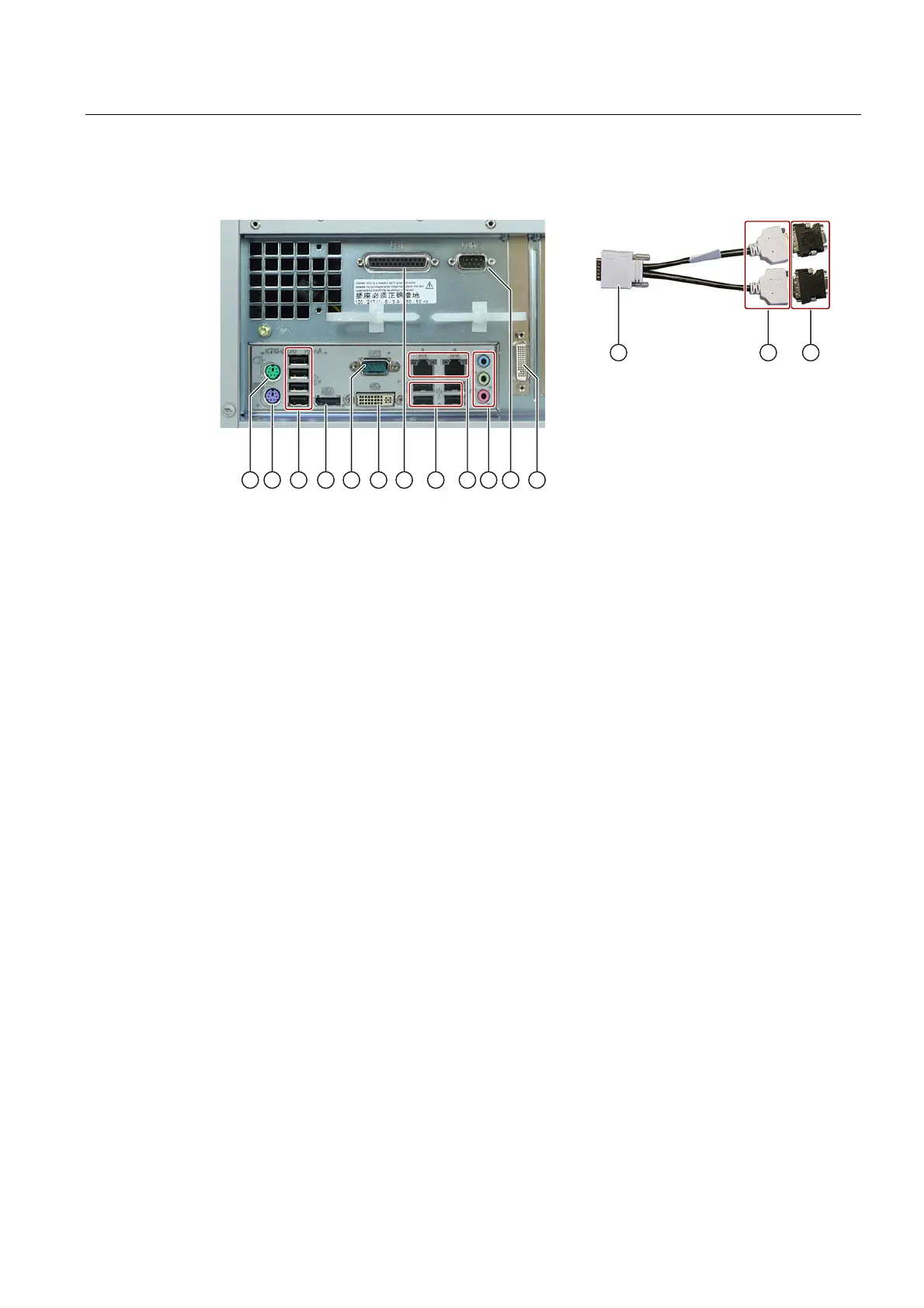

Interfaces


 
   



  
①
MOUSE Connection for a PS/2 mouse
②
KEYBOARD Connection for a PS/2 keyboard
③
USB Connection for USB devices
④
Display Port Connection for a monitor with display port
⑤
COM1 Serial interface 1 (V.24), 9-pin D-sub socket
⑥
DVI-I Connection for CRT or LCD monitor with DVI interface, VGA via
DVI/VGA adapter (optional)
⑦
LPT Parallel interface, 25-pin (optional)
⑧
USB Connectors for USB devices
⑨
Ethernet 1, 2 RJ45 Ethernet connectors for 10/100/1000 Mbps
1)
Ethernet 1 is iAMT-capable.
⑩
Line in (blue)
Line out (green)
Micro (pink)
Connector for analog audio source, 3.5 mm jack socket
connector for active speakers or headset, 3.5 mm jack socket
for microphone, 3.5 mm jack socket
⑪
COM2 Serial interface 2 (V.24), 9-pin D-sub socket (optional)
⑫
DMS59 Connection to the dual-head graphics module (optional)
⑬
Dual-head adapter
2)
DMS59 connector for dual-head graphics module (optional)
⑭
DVI-I
2)
DVI-I connection
⑮
VGA
2)
VGA connection, adapter installed
1
To identify them clearly, the LAN interfaces are numbered on the housing.
The numbering by the operating system may deviate from this.
2
Using the graphic card
