Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC627E
100 Operating Instructions, 12/2018, A5E44297201-AA
7.3.5 Replacing the bus board
Requirement
● The device is disconnected from the mains and all connecting cables have been
removed.
● The device is open, see important information regarding this under Opening the Device
(Page 71).
Procedure - Removal
1. Remove all modules from the slots.

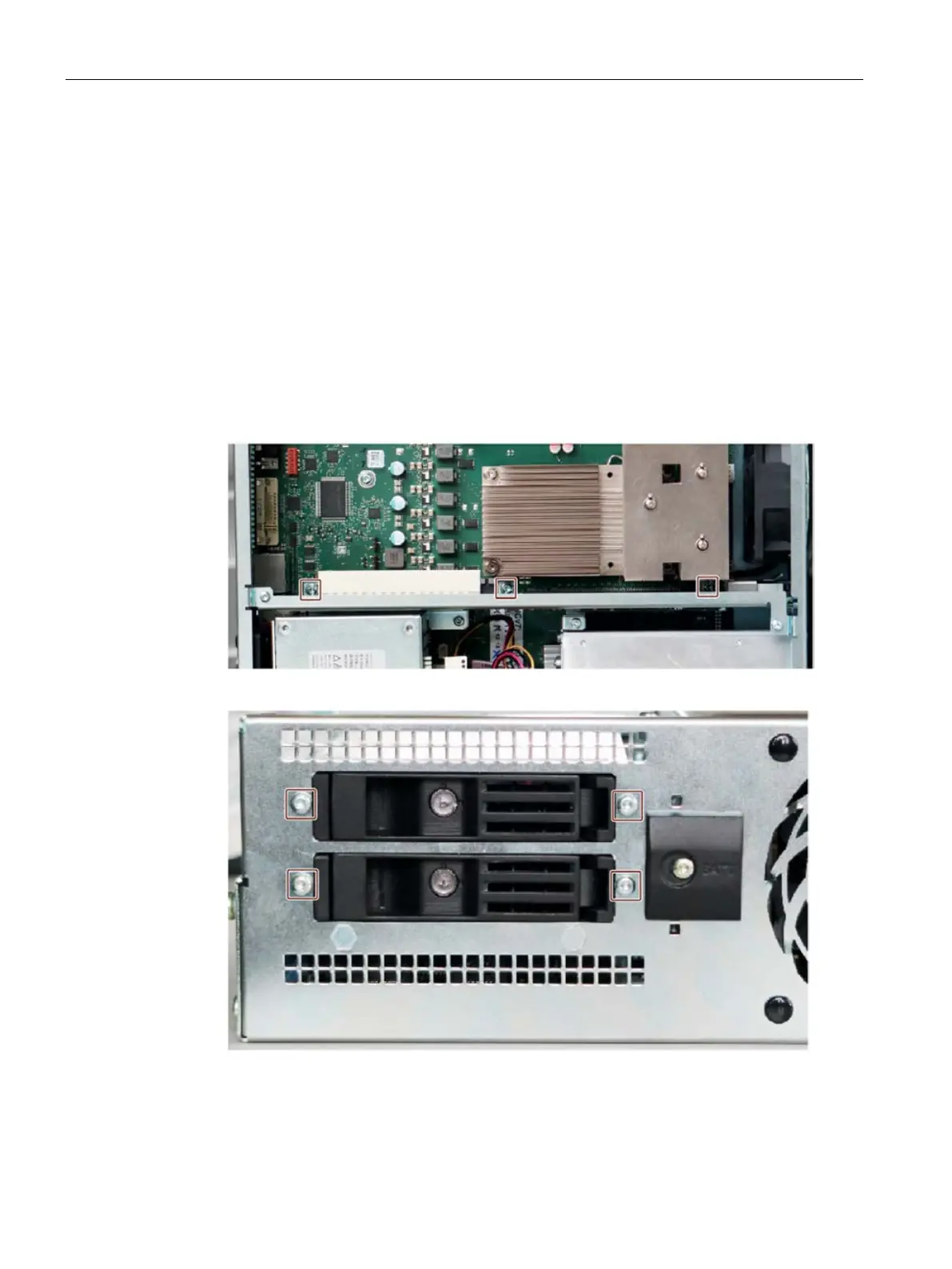

2. Remove the marked screws on the bus board.
3. Remove the marked screws.
4. Remove the back-up battery holder, see Changing the backup battery (Page 96).
