Installing and connecting the device
3.2 Installing the device
SIMATIC IPC627E
Operating Instructions, 12/2018, A5E44297201-AA
41
3.2.2 Mounting positions
Mounting positions
Note
"Open Equipment" IEC/EN/UL61010
The device is designed for use as a programmable controller, Open Equipment according to
IEC/EN/UL 61010
-2-201. The installation of the device in a housing in accordance with
IEC/EN/UL 61010
-2-201 is therefore a mandatory requirement for approval or operation.
An inclination of ± 20° is permitted for all approved mounting positions.

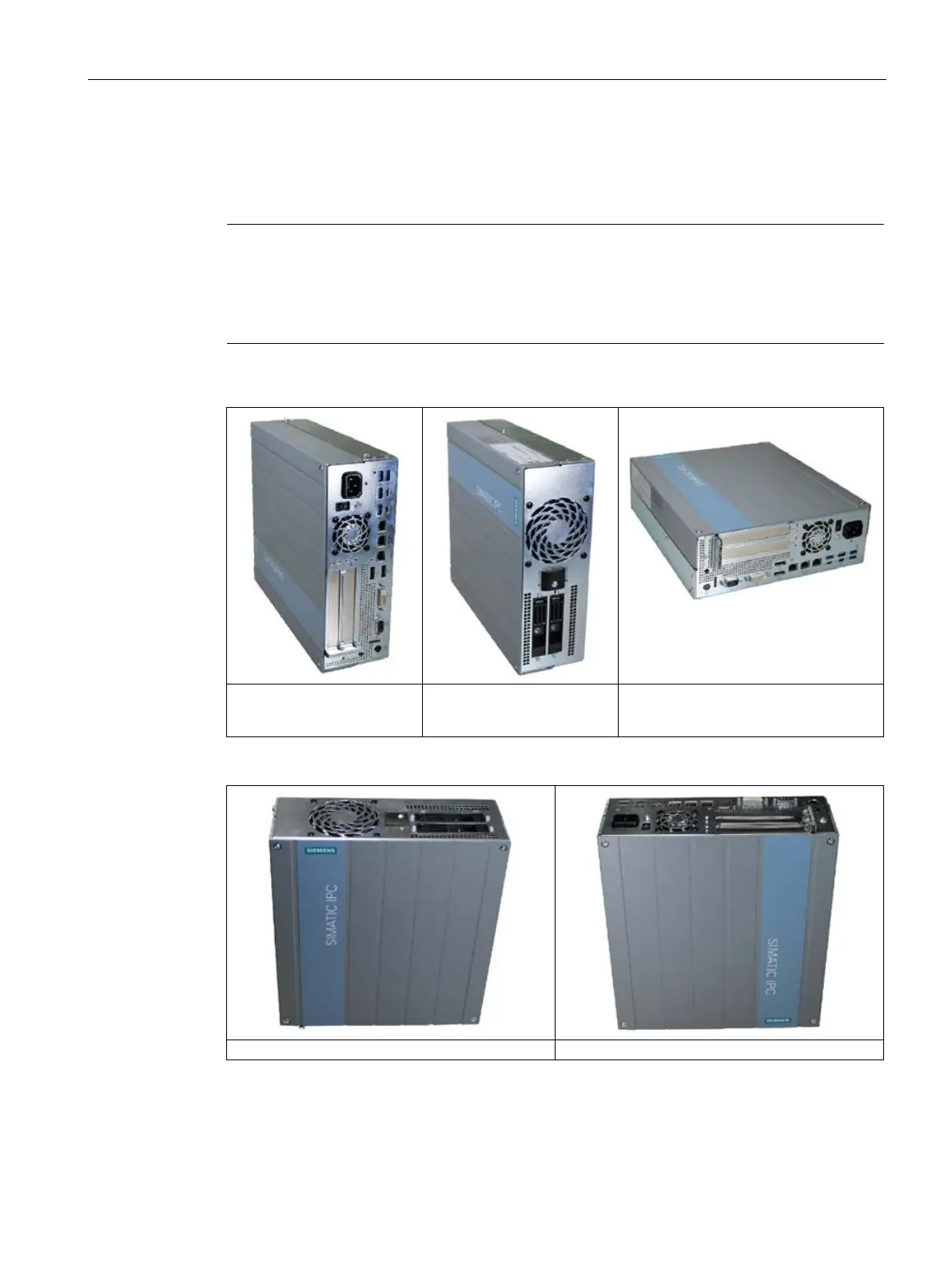

Position 1 (preferred) for
wall mounting: The interfac-
es are at the right.
Position 2 for wall mounting:
The interfaces are at the left.
Position 3 (desktop)
An inclination of ±15° is allowed in this mounting position.
Position 4 (interfaces facing down)
Position 5 (interfaces facing up)
See also
Notes on ambient and environmental conditions (Page 30)
