Installing and connecting the device
3.2 Installing the device
SIMATIC IPC627E
42 Operating Instructions, 12/2018, A5E44297201-AA
3.2.3 Installation of the device with wall mounting rails
The included wall mounting rails allow for space-saving installation of the device.
Note
See the notes under "
Mounting positions (Page 41)".

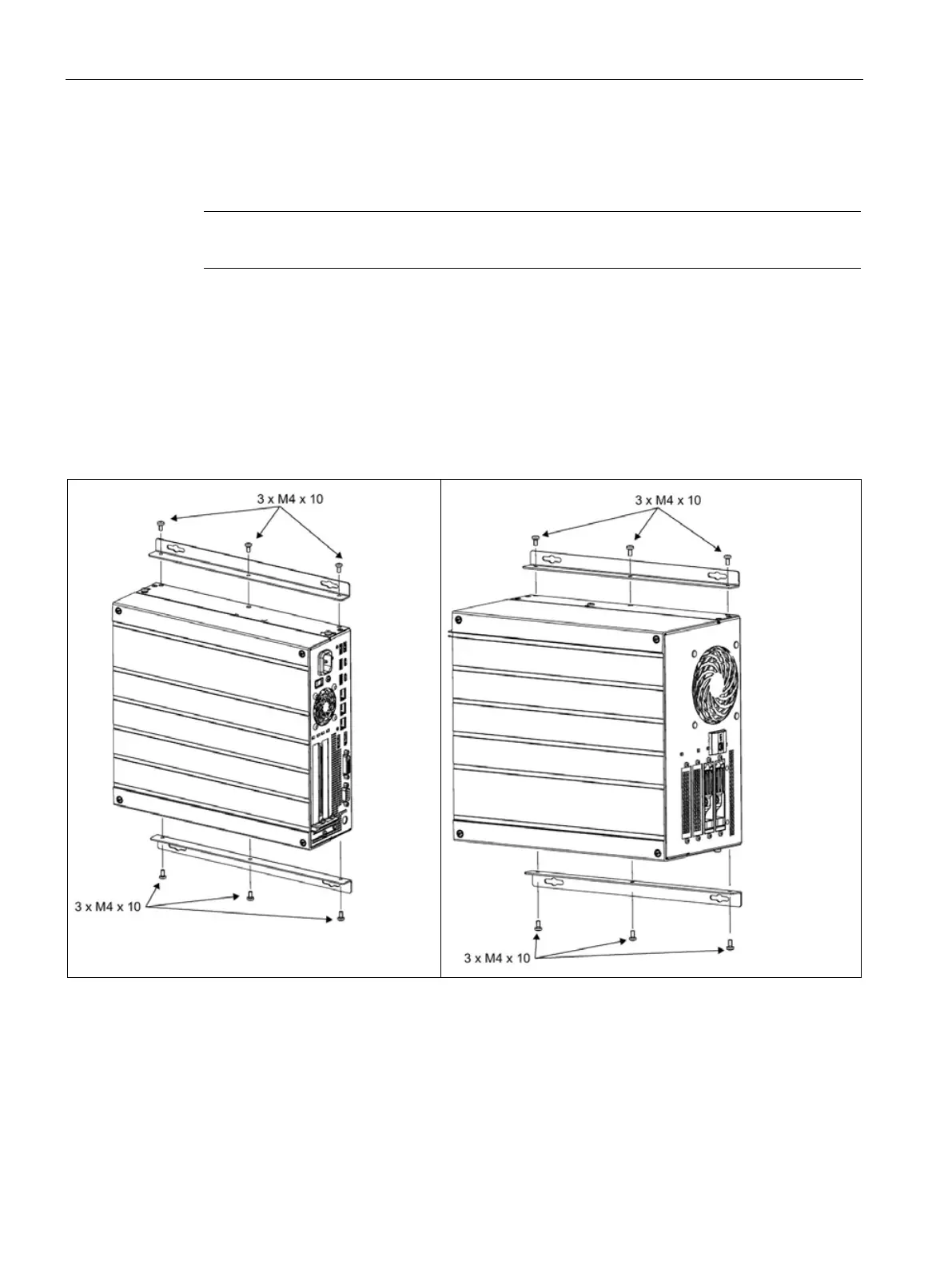

Mounting of the mounting rails on the device
1. Remove the equipotential bonding screw ① from the device and attach it to the wall
mounting rails.
2. Secure the wall mounting rails to the device using the following number of screws:
– SIMATIC IPC627E: Six M4 screws; torque 3 Nm
