A.5 System resources
SIMATIC IPC627E
146 Operating Instructions, 12/2018, A5E44297201-AA
A.5.3 Interrupt Assignments
The functions are assigned different interrupts, depending on the operating system. A
distinction is made between the PIC and APIC modes.

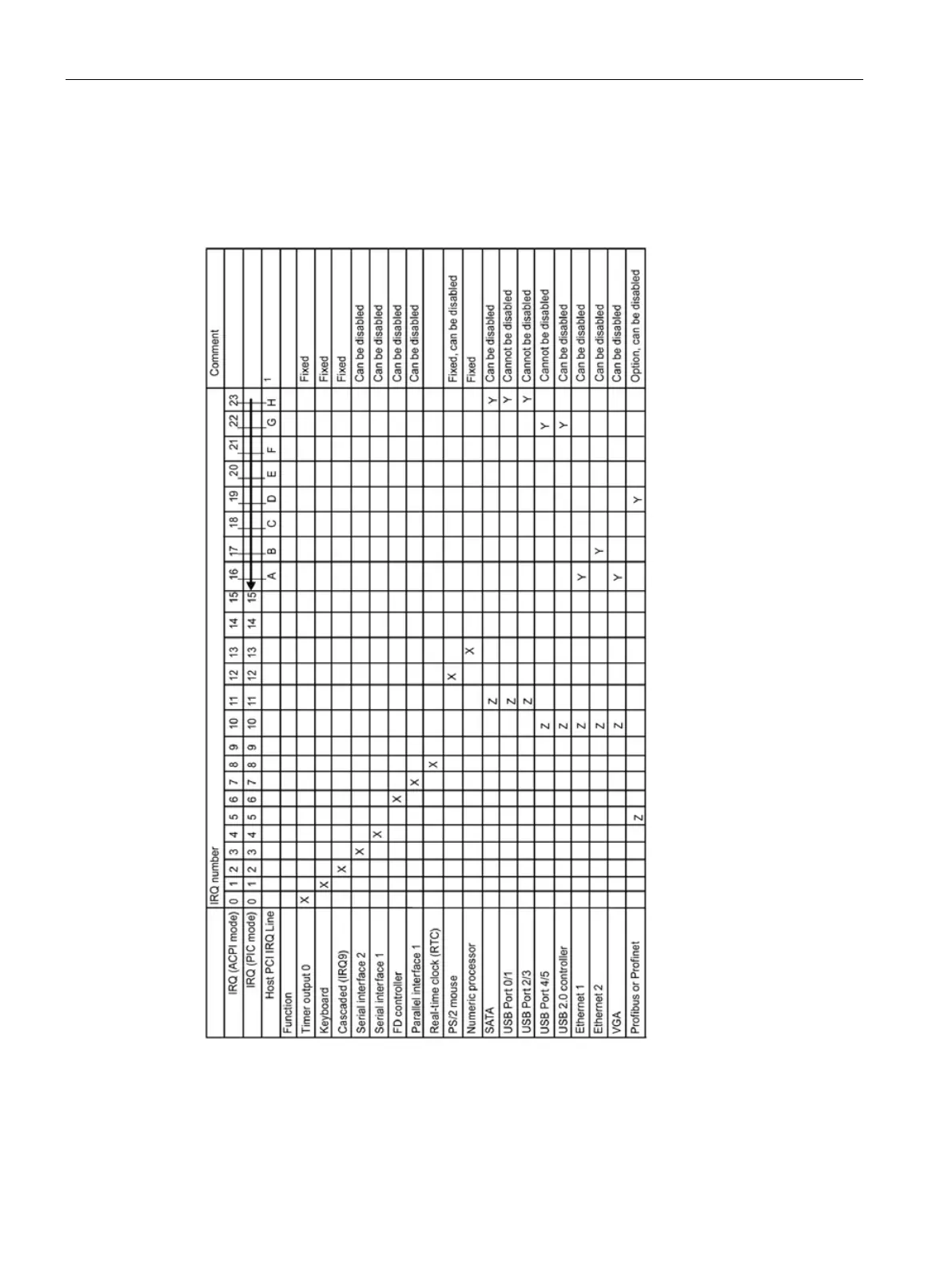

The table describes the assignment of the interrupts in the delivery state of the device.
Y
Interrupt in APIC mode
Z
BIOS Default Interrupt in PIC mode, e.g., DOS
1
Host PCI-IRQ A to H is assigned to IRQ 16 to 23 permanently in APIC mode. Host PCI-IRQ A to H
will be automatically assigned IRQ 0 to 15 by BIOS in PIC mode. A specific assignment can not
be enforced.
