Product description
1.4 External design of the device
SIMATIC IPC627E
16 Operating Instructions, 12/2018, A5E44297201-AA
1.4 External design of the device
1.4.1 Front panel

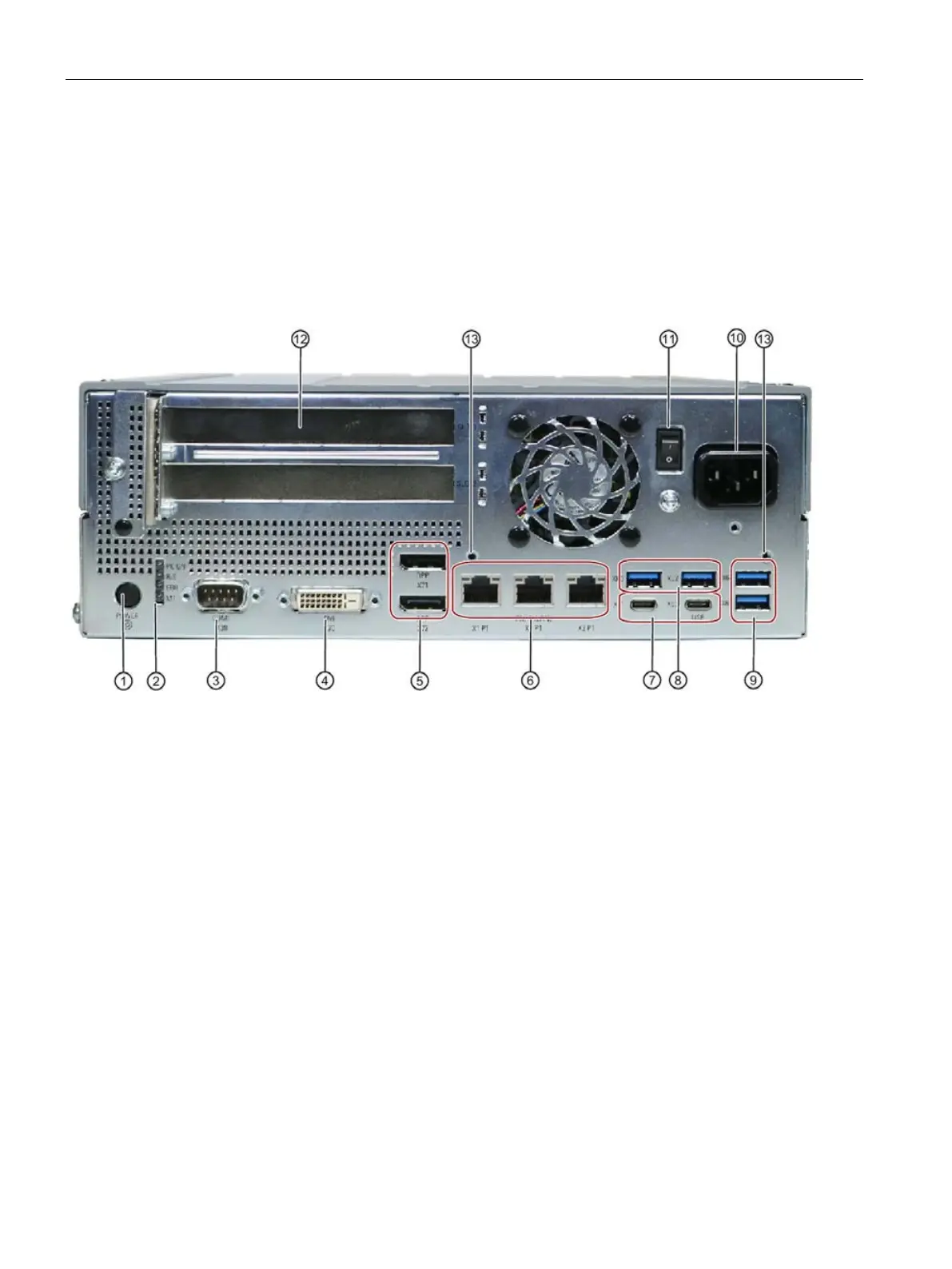

Device with two expansion slots
①
On/off button The on/off button has three functions:
• Switch on the PC: Briefly press once
• Shut down operating system and switch off PC: Briefly press once
• Switch off PC without shutting down the operating system (hardware reset): Press for
more than 4 seconds.
Note: The BIOS setup entry "State After G3" is preset to "S0 State (=Always On)". This
means the device is switched on with the on/off switch. You then do not need to press the
on/off button.
②
4 status LEDs
Status display of the operating state (Page 21)
③
COM1 X30
Serial interface
④
DVI/VGA X70
DVI-D connection for CRT or LCD monitor with DVI port
⑤
DisplayPort
X71/X72
DisplayPort connection for digital monitor
⑥
3 × Ethernet
X1P1/X2P1/X3P1
• X1P1, left: RJ45 Ethernet port 1 (exclusive PCI interrupt) with 10/100/1000 Mbps, iAMT
capable
• X2P1, center: RJ45 Ethernet port 2 (shared PCI interrupt) with 10/100/1000 Mbps
• X3PI, right: RJ45 Ethernet port 3 (shared PCI interrupt) with 10/100/1000 Mbps
⑦
2 × USB
X61/X63
USB 3.1 Gen. 2 Type C high current, backward compatible with USB 3.0/2.0/1.1
