A.1 Motherboard
A.1.1 Layout of the motherboard

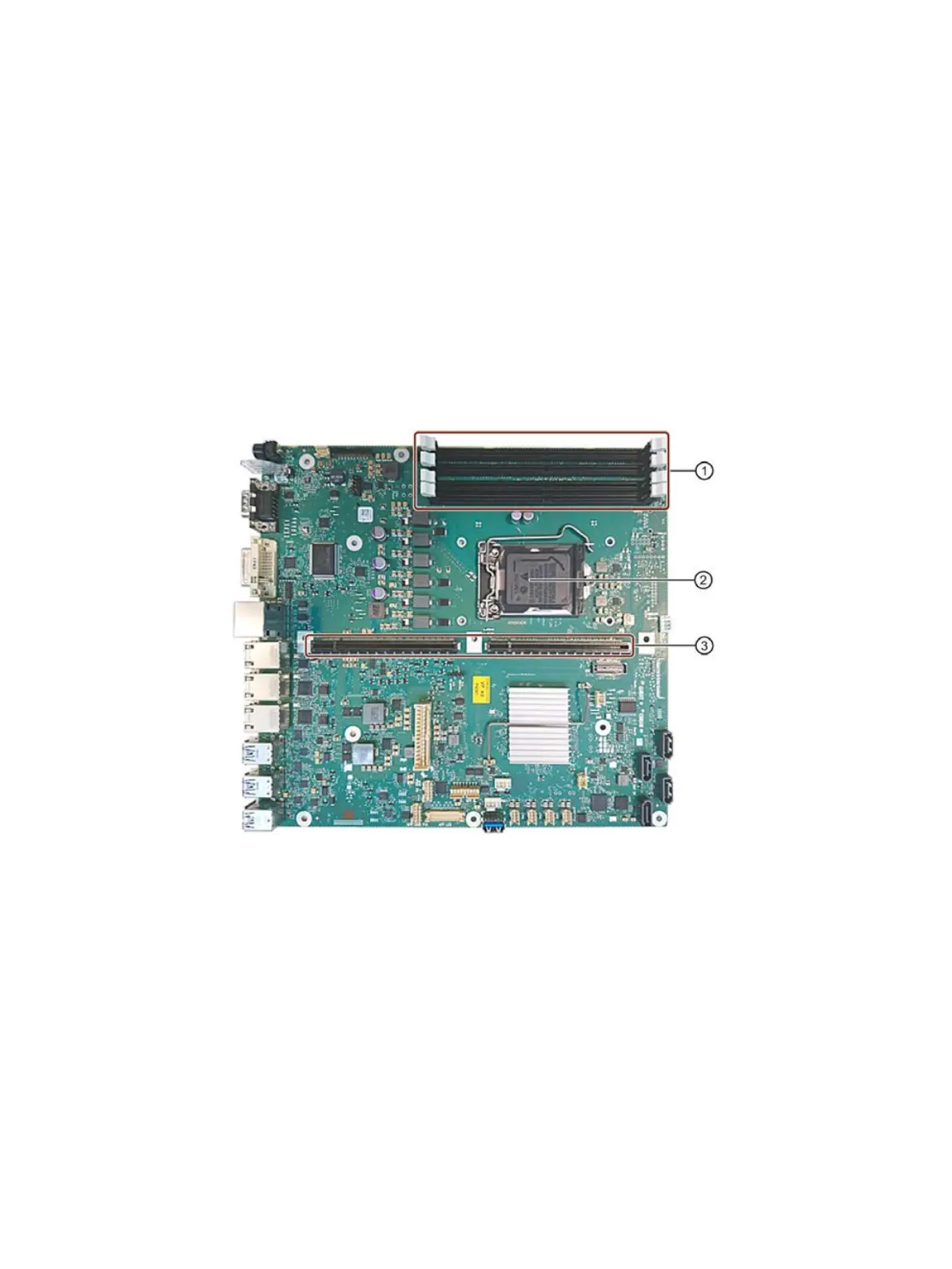

The motherboard consists of these main components: Processor and chip set, four slots for
memory modules, internal and external interfaces, and the Flash BIOS.
①
Slots for memory modules
②
Processor
③
Slots for bus boards
Technical features of the motherboard
Technical features of the motherboard can be found under "Technical specifications of the
motherboard (Page 117)".
