Siemens SIMATIC IPC627E

Hardware description
A.1 Motherboard
SIMATIC IPC627E
136 Operating Instructions, 12/2018, A5E44297201-AA

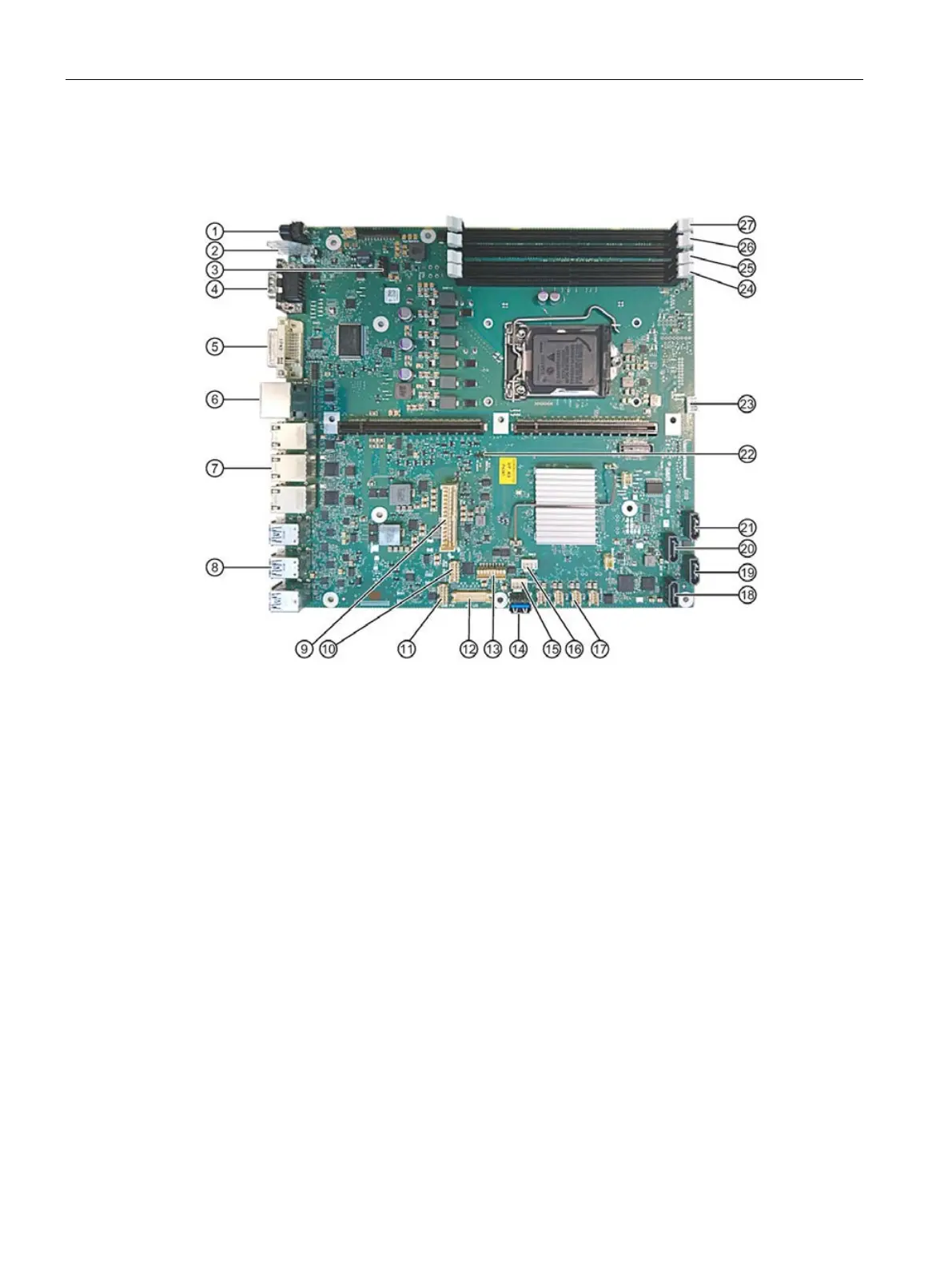

A.1.2 Position of the interfaces on the motherboard
(1)
Power button
(9)
Power supply (X800)
(19)
SATA 2 (Port4)
(X525),
IPC627E-5 only
(2)
Status LEDs
(10)
USB 2.0 (X15), IPC677E
only
(20)
SATA 1 (Port3)
(X523)
(3)
2xUSB 2.0 (X13)
(11)
USB 2.0 (X17), IPC677E
only
(21)
SATA 0 (Port2)
(X526)
(4)
COM1 (X30)
(12)
LVDS (X9), IPC677E only
(22)
CPU fan (X513)
(5)
DVI (X70)
(13)
Backlight (X4007),
IPC677E only
(23)
BIOS Recovery
(X594)
(6)
2x DPP (X71/X72)
(14)
1x USB 2.0 (X562)
(24)
RAM DIMM1
-2
(X190)
(7)
LAN 1 (X1 P1)
(15)
HDD fan (X511),
IPC627E-5 only
(25)
RAM DIMM1
-1 (X19)
LAN 2 (X2 P1)
(16)
PS fan (X52)
(26)
RAM DIMM2
-2
(X200)
LAN 3 (X3 P1)
(17)
4x SATA-SV (X516-X519)
(27)
RAM DIMM2-1 (X20)
(8)
USB 3.1 (X60
-X65)
4x type A, 2x type C
(18)
SATA 3 (Port5) (X522),
IPC627E-5 only
