Expanding and assigning parameters to the device
6.2 Expansion cards
SIMATIC IPC627E
74 Operating Instructions, 12/2018, A5E44297201-AA
6.2.2 Installing/removing expansion cards
Note
Requirement for expansion cards
You can find the permitted dimensions for expansion cards under "Dimension drawing of the
expansion cards
(Page 129)". If the permissible height is exceeded, contact problems,
malfunctions and installation difficulties cannot be ruled out.
Requirements
● The device is open (see: Opening the Device (Page 71)).
Procedure - Installation
Damage to the expansion card.
The expansion card can break if excessive force is used.
• Do not apply any pressure.
• Do not apply excessive force on the slider when you push it onto the expansion card.

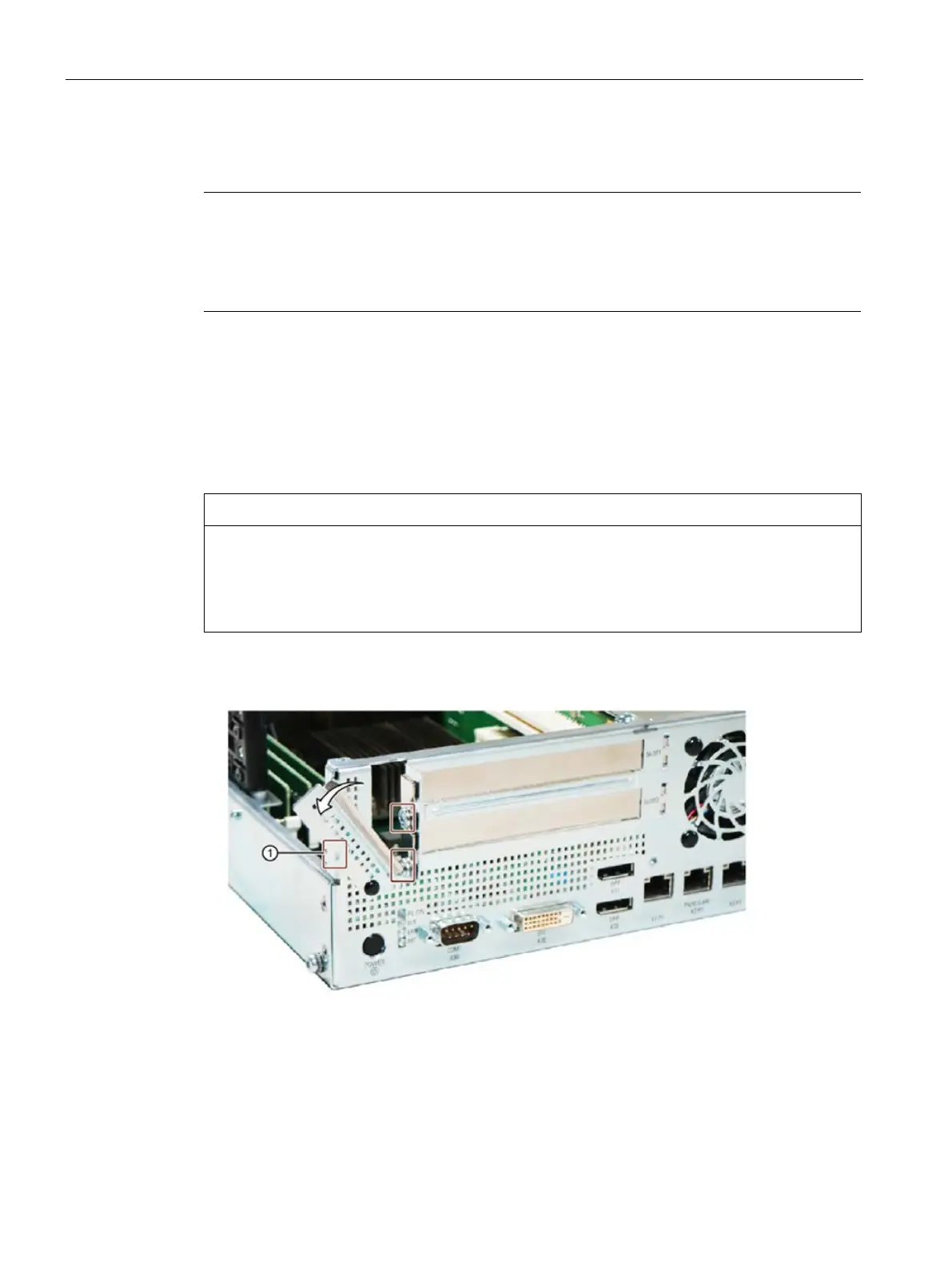

1. Remove the marked screw ① and swivel the cover to the side as shown. Then remove
the marked screws and the panels.
