1.5 Internal design of the device
SIMATIC IPC627E
Operating Instructions, 12/2018, A5E44297201-AA
23

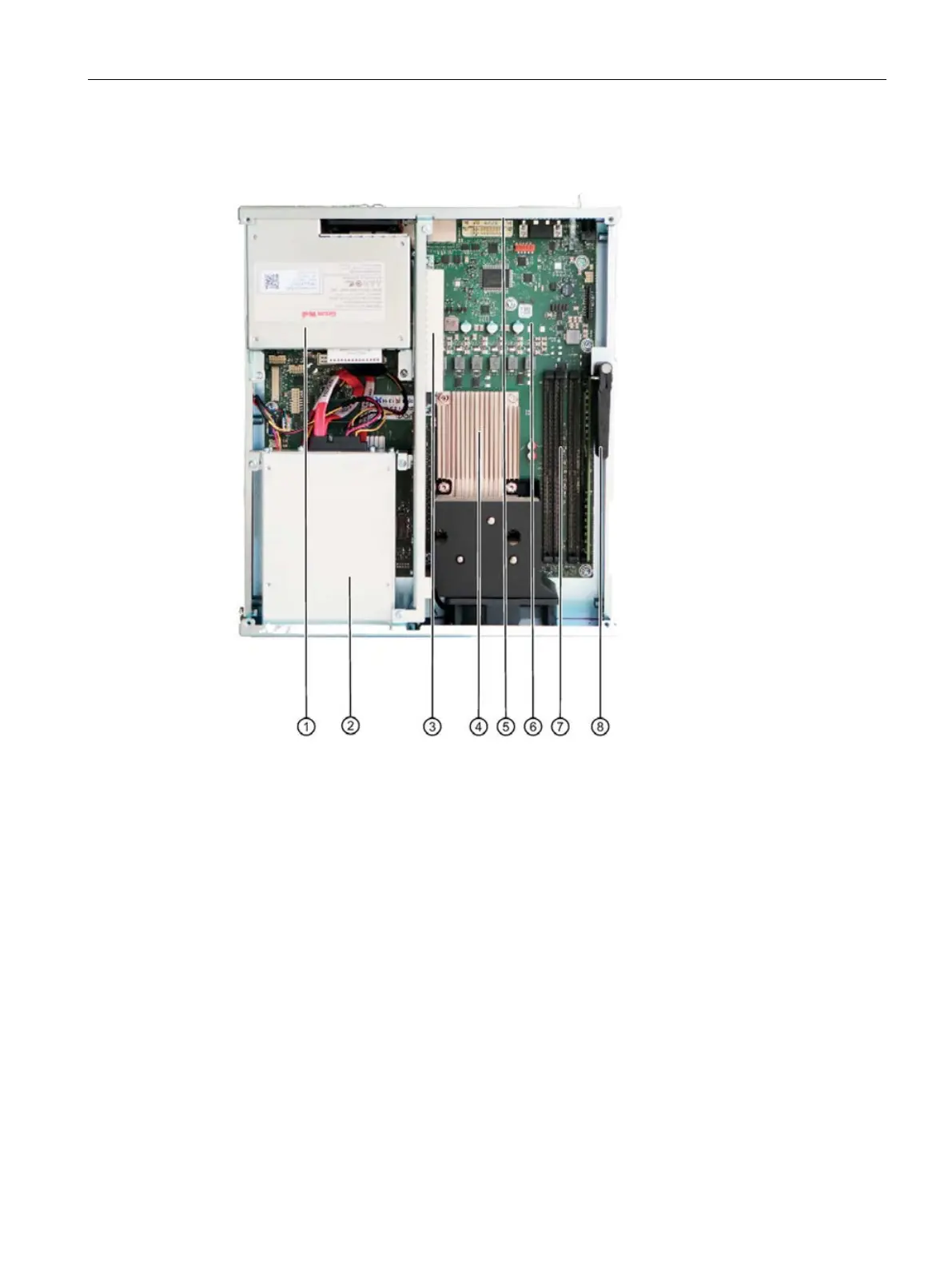

1.5 Internal design of the device
①
100-240 V AC power supply
②
Slots for removable drives
③
Expansion card slots
④
Heat sink of the processor
⑤
Expansion card slots
⑥
Motherboard
⑦
Slots for memory modules
⑧
Retainer for expansion cards
