Dimension drawings
9.2 Dimension drawings of SIMATIC IPC627E (5 expansion slots)
SIMATIC IPC627E
126 Operating Instructions, 12/2018, A5E44297201-AA

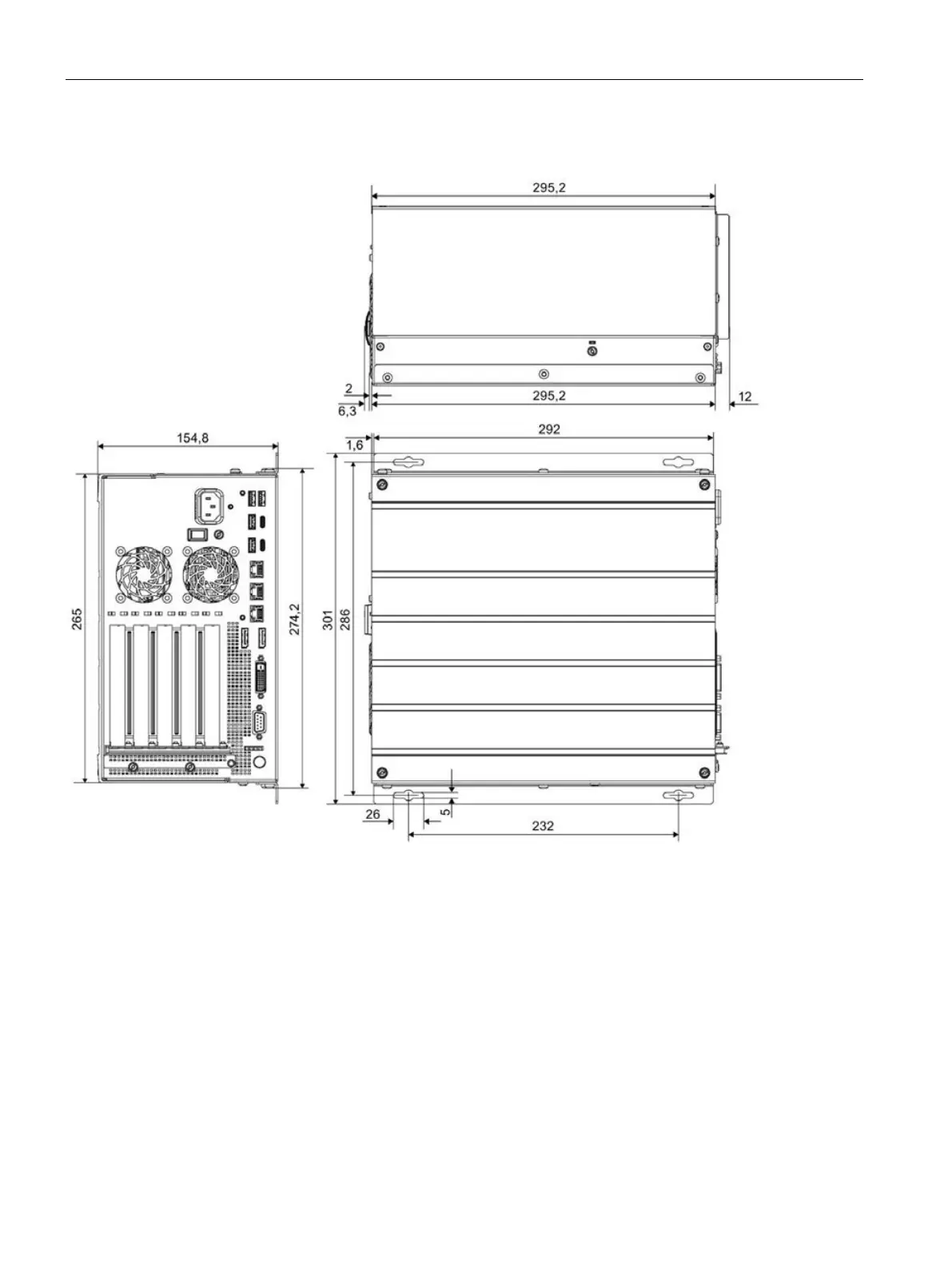

Dimension drawing for mounting with wall mounting rails
All dimensions in mm
