Dimension drawings
9.2 Dimension drawings of SIMATIC IPC627E (5 expansion slots)
SIMATIC IPC627E
128 Operating Instructions, 12/2018, A5E44297201-AA

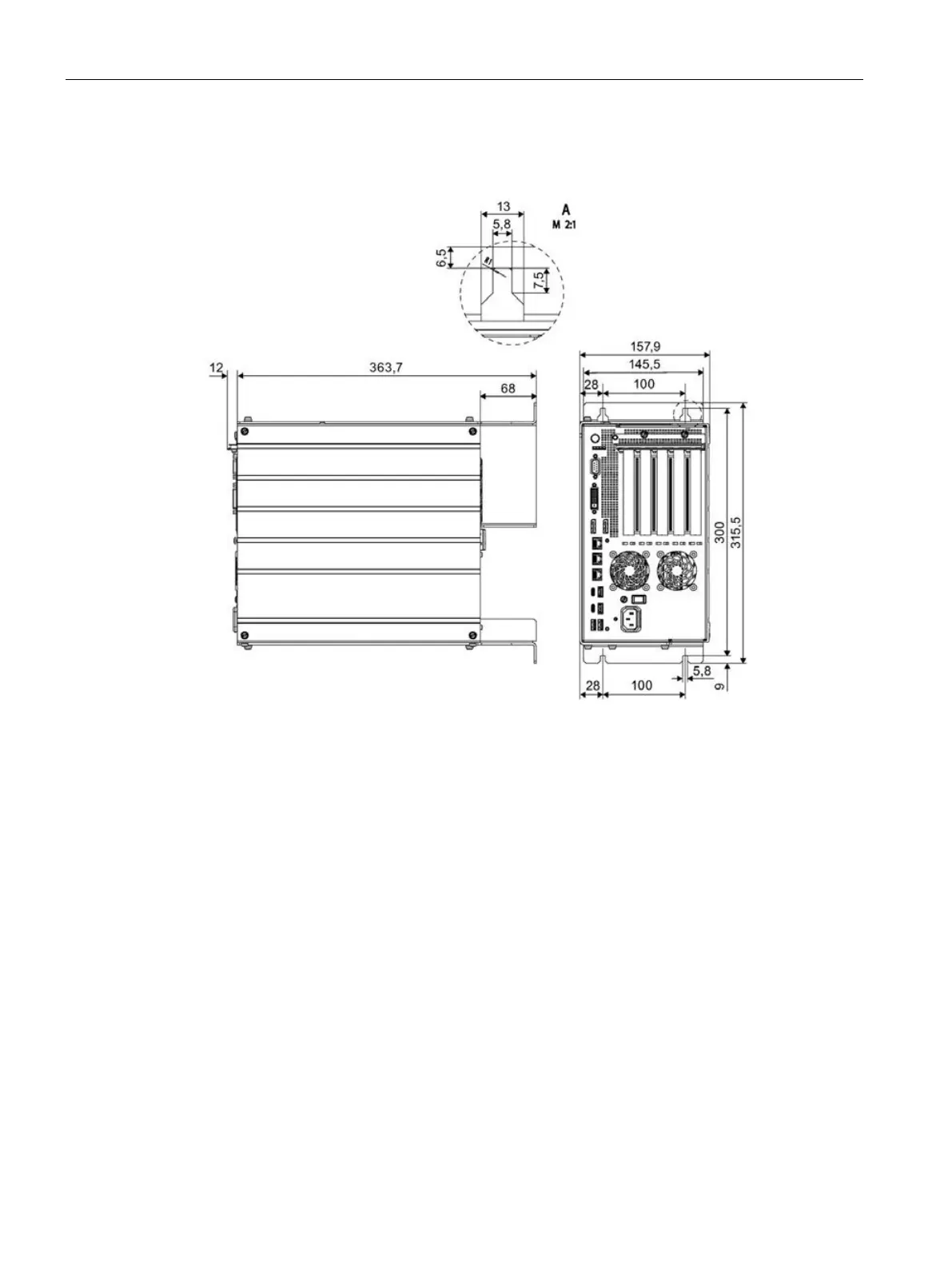

Dimension drawing for installation with the vertical mounting kit for PC port access from the
front
All dimensions in mm
