Device maintenan
ce and repair
7.3
Removing and installi
ng hardware
SIMATIC IPC627E
94
Operating Instructions, 12/2018, A
5E44297201-
AA
3.

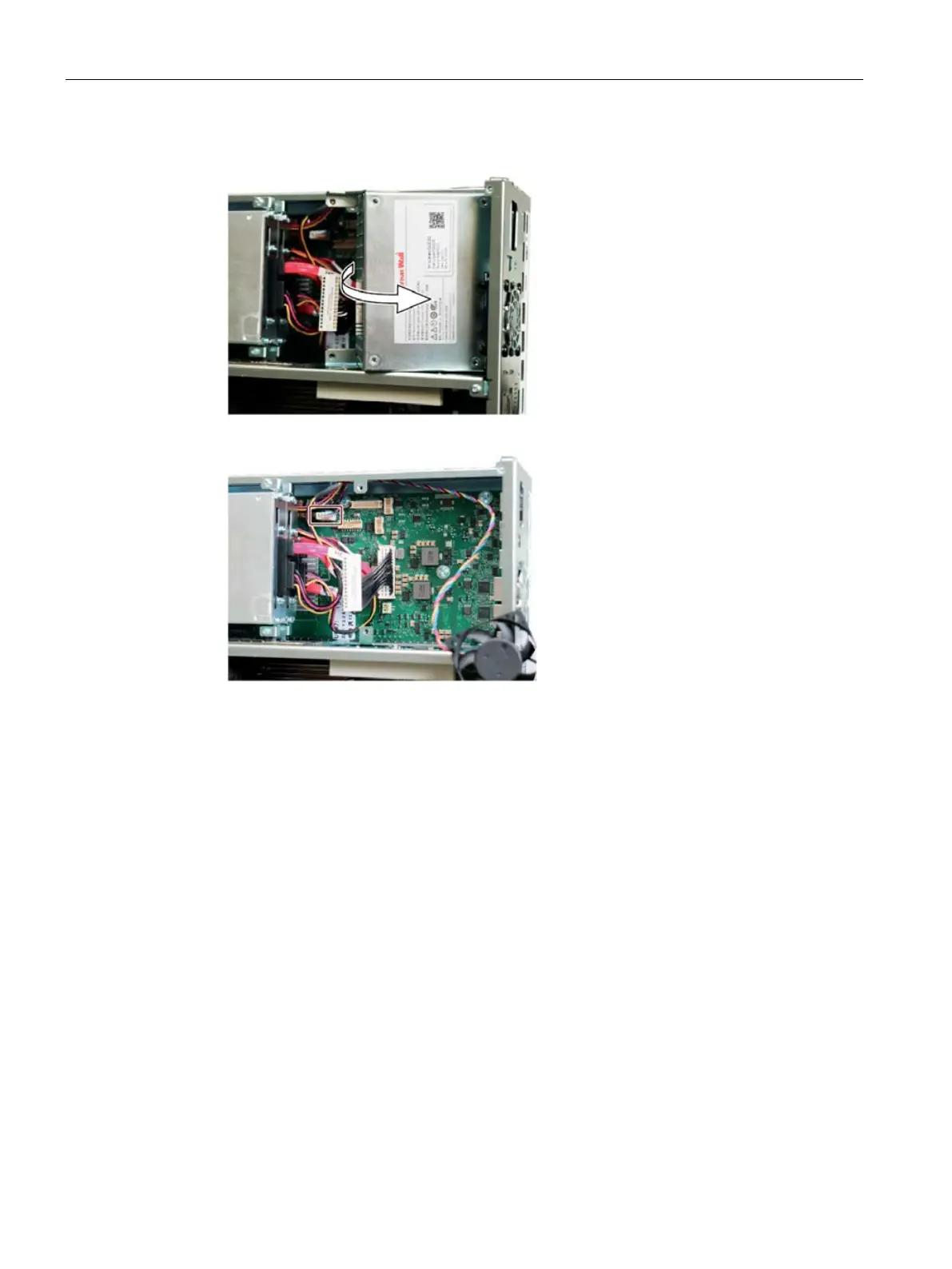

Take the power supply out of
the enclosure.
4.
Remove the power suppl
y fan and pull the fan plug.
93
95
Table of Contents
Main Page
Default Chapter
3
Preface
3
Table of Contents
5
1 Product Description
11
Important Instructions and Manuals for Operating the Device
11
Product Highlights
13
Applications
15
External Design of the Device
16
Front Panel
16
Rear of the Device
20
Status Displays
21
Internal Design of the Device
23
Accessories and Spare Parts
24
Accessories: Hardware
24
Accessories: Software
25
2 Safety Instructions
27
General Safety Instructions
27
Note on Transport and Storage
29
Notes on Mounting
30
Notes on Ambient and Environmental Conditions
30
Information on I/O Devices
33
Notes on Device and System Extensions
34
3 Installing and Connecting the Device
35
Preparing for Installation
35
Scope of Delivery
35
Checking the Delivery Package
37
Identification Data of the Device
38
Installing the Device
39
Installation Guidelines
39
Mounting Positions
41
Installation of the Device with Wall Mounting Rails
42
Installing the Device with the Vertical Mounting Kit
43
Installing the Device with the Vertical Mounting Kit for PC Port Access from the Front
44
Connecting the Device
45
Country-Specific Information on Supply Voltage
45
Connection of Equipotential-Bonding Cable
46
Connecting the Power Supply
47
Connecting 100-240 VAC Power Supply
47
Connecting the 24 VDC Power Supply
49
Connecting I/O Devices
51
Connecting the Device to Networks
53
Connecting Ethernet/Usb Strain Relief
54
4 Commissioning the Device
55
Switching on the Device
55
Configuring Automatic Switch-On of Device
55
Switching off the Device
56
5 Operating the Device
59
Multi-Monitoring
59
Drive Configurations
59
RAID1 System
59
Operating RAID Systems
60
Display of a Defective Drive of a RAID System
60
RAID1 System: Installation Options for Drives
60
Configure the Onboard RAID System
60
Monitoring the Onboard RAID System with "Intel® Rapid Storage Technology
62
Integrating a New Drive into the Onboard RAID System
63
Data Synchronization in the RAID System
64
Monitoring of the Device
65
Monitoring Functions
65
SIMATIC IPC Diagbase
66
SIMATIC IPC Diagmonitor
66
Remote Maintenance of the Device
67
Remote Maintenance Functions
67
SIMATIC IPC Remote Manager
68
Trusted Platform Module (TPM)
69
Buffer Memory NVRAM (Optional)
69
Operation Without Monitor and Keyboard
69
6 Expanding and Assigning Parameters to the Device
71
Opening the Device
71
Expansion Cards
73
Usable Expansion Cards
73
Installing/Removing Expansion Cards
74
Memory Modules
76
Usable Memory Modules
76
Installing and Removing Memory Module
77
Drives
79
Changing the Drive in the Removable Tray
79
Changing Internal SSD
81
Changing Internal Hard Disk Drive
84
Replacing a Drive in the RAID System
86
Replacing M.2 Nvme SSD
87
7 Device Maintenance and Repair
89
Repair Information
89
Maintenance Intervals
89
Removing and Installing Hardware
90
Replacing Device Fans
90
Replace Power Supply Fan
93
Changing the Backup Battery
96
Replace Power Supply
98
Replacing the Bus Board
100
Replacing the Processor
104
Installing Operating System, Software and Drivers
107
Installing the Operating System
107
Installing Software and Drivers
107
Configuring Firmware/Bios
107
Backing up Data and Changing Partitions
107
Recycling and Disposal
108
8 Technical Specifications
109
Applicability of Technical Specifications
109
General Technical Specifications
109
Current/Power Requirements and Power Supply
111
Current and Power Requirements of the System Components
111
Technical Specifications AC Power Supply (AC)
113
Technical Specifications DC Power Supply (DC)
114
Electromagnetic Compatibility
115
Ambient Conditions
116
Technical Specifications of the Drives
116
Technical Specifications of the Motherboard
117
Technical Specifications of Graphic
118
Technical Specifications of the Interfaces
118
Technical Specifications of the Operating Systems
119
9 Dimension Drawings
121
Dimension Drawings of SIMATIC IPC627E (2 Expansion Slots)
121
Dimension Drawings of SIMATIC IPC627E (5 Expansion Slots)
125
Dimension Drawing of the Expansion Cards
129
10 Standards and Approvals
131
CE Marking
131
DIN ISO 9001 Certificate and Software License Agreements
132
UL Approval
132
Fcc (Usa)
133
Canada
134
Australia / New Zealand
134
Eurasion Customs Union EAC
134
Korea
134
Hardware Description
135
Motherboard
135
Layout of the Motherboard
135
Position of the Interfaces on the Motherboard
136
Internal Interfaces
137
Pin Assignment of the Internal Interfaces
137
Device Fan Supply (X512)
137
Supply for the Power Supply Fan (X515)
138
Supply for the Serial ATA Drives (X516 - X521)
138
Bus Board
139
Expansion Card Slots on the Bus Board
139
Pin Assignment 12 V Power Supply Connection for Expansion Cards
141
External Interfaces
142
System Resources
143
Currently Allocated System Resources
143
I/O Address Allocation
143
Interrupt Assignments
146
Exclusive PCI Hardware Interrupt
148
Memory Address Assignments
149
Technical Support
151
Service and Support
151
Troubleshooting
152
Problems with Device Functions
152
Problems When Booting the Device
153
Problems with RAID Systems
154
Problems When Using Expansion Cards
154
Markings and Symbols
155
Overview
155
Safety
155
Operator Controls
155
Certificates, Approvals and Markings
156
Interfaces
157
List of Abbreviations
159
Abbreviations
159
Index
161
