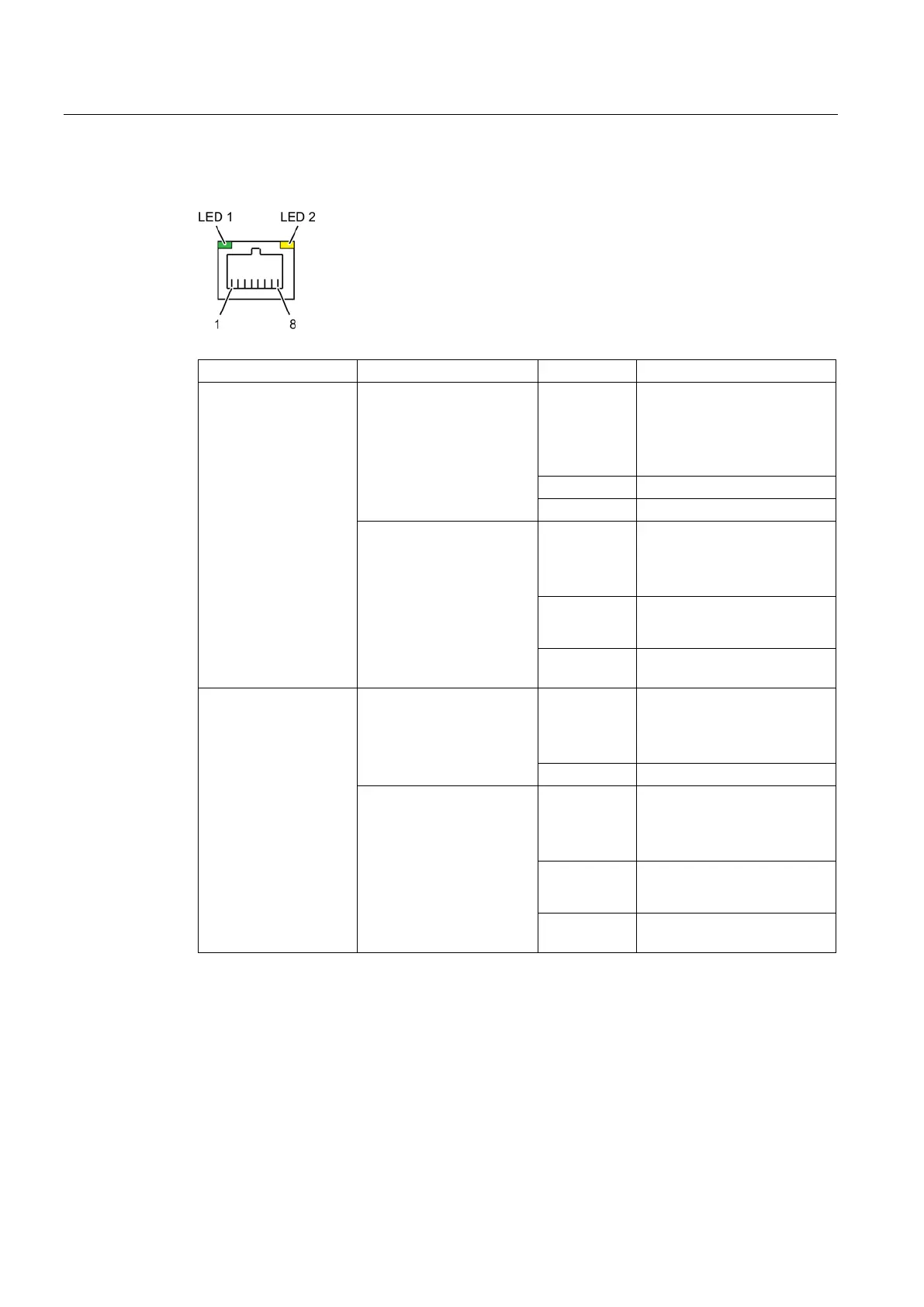

1.2 Design of the device
SIMATIC IPC647D
20 Operating Instructions, 01/2014, A5E32996306-AA
Ethernet interface
Display
Meaning
LED
Description
Ethernet 1, 2
1
Green LED
Link status display
Off
• No cable connected
• Cable disabled
• Interface disabled, 10 MBit
cable active
Green
100 Mbit cable active
Orange
1000 Mbit cable active
Yellow LED
Activity status display
Off
• No cable connected
• Cable disabled
• Interface disabled
Lit
• Connection
• No activity
Goes out
briefly
Activity
PROFINET LAN X1
P1, P2, P3
1
Green LED
Link status display of CP-
1616 channel
Off
• No cable connected
• Cable disabled
• Interface disabled
Green Active cable connected
Yellow LED
Activity status display of
CP-1616 channel
Off
• No cable connected
• Cable disabled
• Interface disabled
Lit
• Connection
• No activity
Goes out
briefly
Activity
1
For unique labeling, the LAN and PROFINET interface are numbered on the enclosure. The
numbering by the operating system may deviate from this.
