Siemens SIMATIC IPC647D

Overview
1.2 Design of the device
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
21

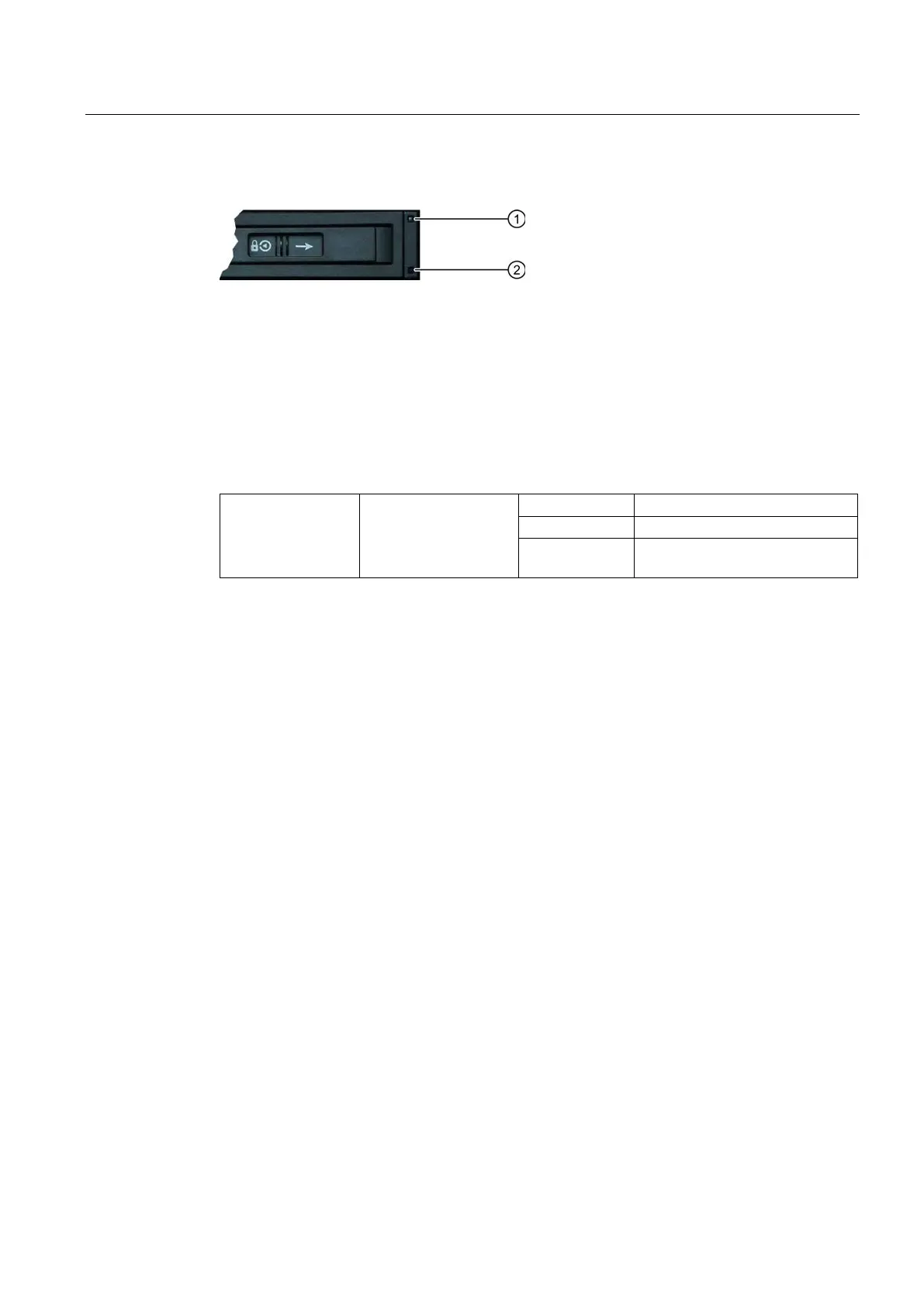

Drives in removable rack
①
"Power" LED; power supply available
②
"HDD" LED, access to hard disk drive
Virtual status display
The two "virtual" CP -1616 LEDs are only visible in the SIMATIC user interface and can be
read via SNMP.
PROFINET Virtual LEDs
RUN
CP is active
STOP
CP is in the stop state
Flashes The states "flashes slowly" and
"flashes rapidly" do not exist.
