Expanding and assigning parameters to the device
6.3 Expanding memory
SIMATIC IPC847D
Operating Instructions, 01/2014, A5E32997454-AA
73
Removing a memory module
1.
Always remove the memory
modules in the reverse order:
1.
DIMM 1-2
2.
DIMM 1-1
3.
DIMM 2-2
4.
DIMM 2-1
2.

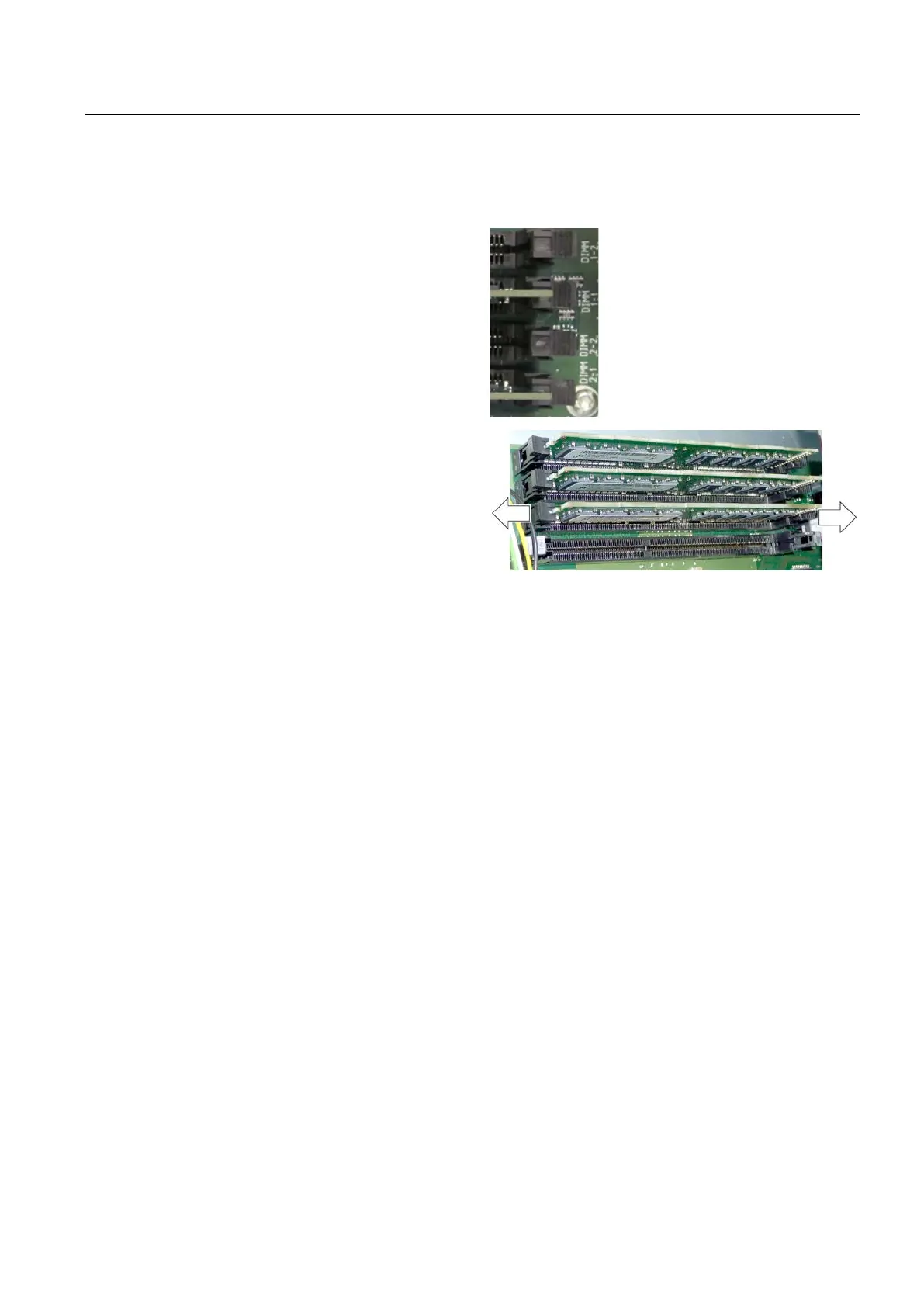

Open the two latches at the sides
of the memory module evenly.
Remove the memory module from
the slot.
3.
Close the device.
Display of the current memory configuration
The new memory configuration is detected automatically. The allocation of the ”base
memory and extended memory” is automatically displayed when you switch on the device.
