Mobile data storage units
5.8 MDS D200
MOBY D
126 System Manual, 01/2010, J31069-D0147-A6-7618
Flush-mounting



K
D
D
a ≥ 20 mm
h ≥ 20 mm
① Data memory
② Metal
③ Non-metal

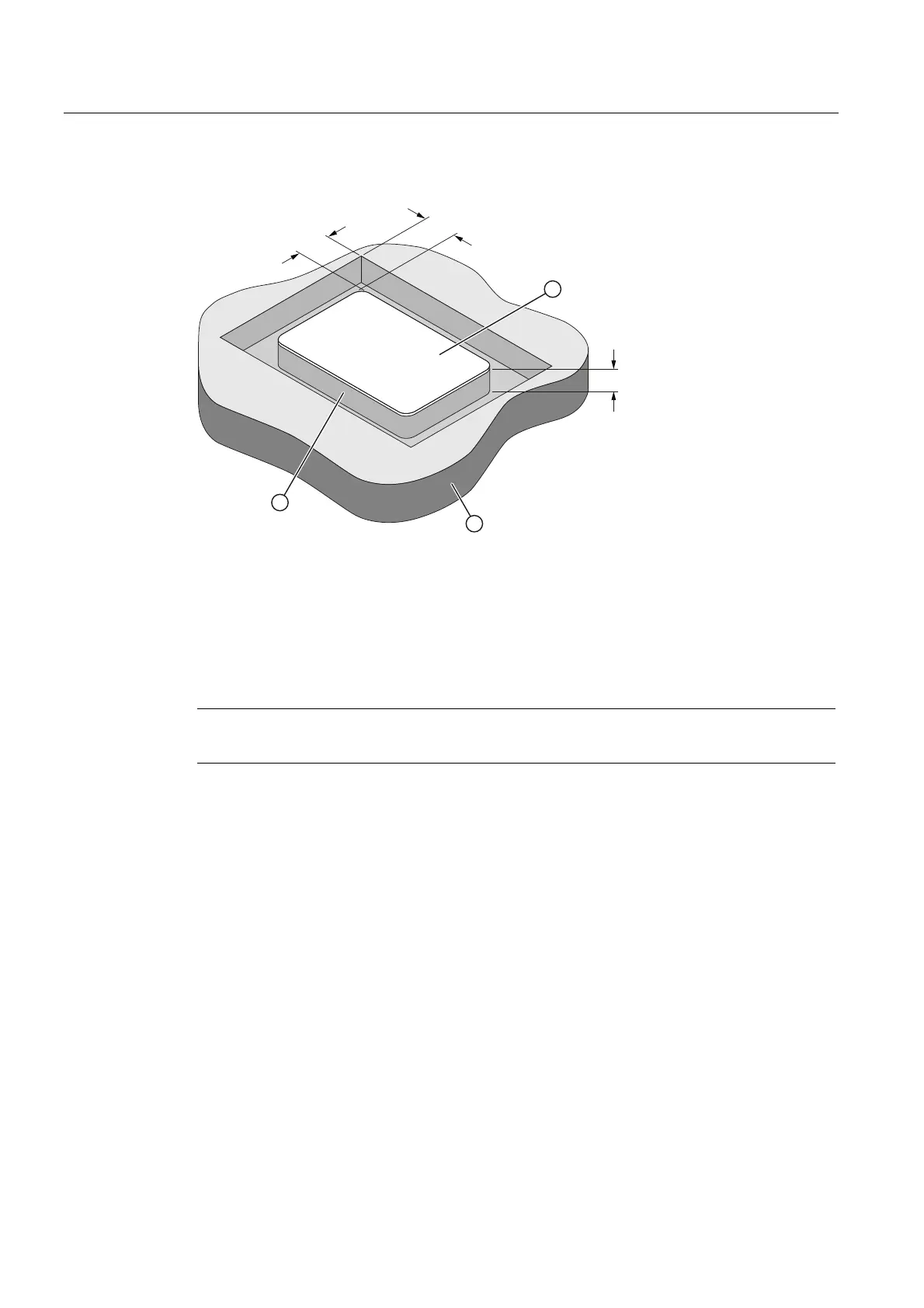

Figure 5-17 Flush-mounting of MDS D200 in metal with spacer
Note
If the minimum guide values (h) are not observed, a reduction of the field data results.
