Siemens SIMATIC MOBY D - Pin Assignment of DC Outputs and Mains Connection

Accessories
10.1 Wide-range power supply unit for SIMATIC RF systems
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
273
Table 10- 5 Compliance with standards
Designation Standard Values
Electrical safety EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition
Conducted interference EN 61000-6-3
EN 55011
Class B
Emission EN 61000-6-3
EN 55011
Class B
All values are measured at full-load and at an ambient temperature of 25 °C (unless
specified otherwise).

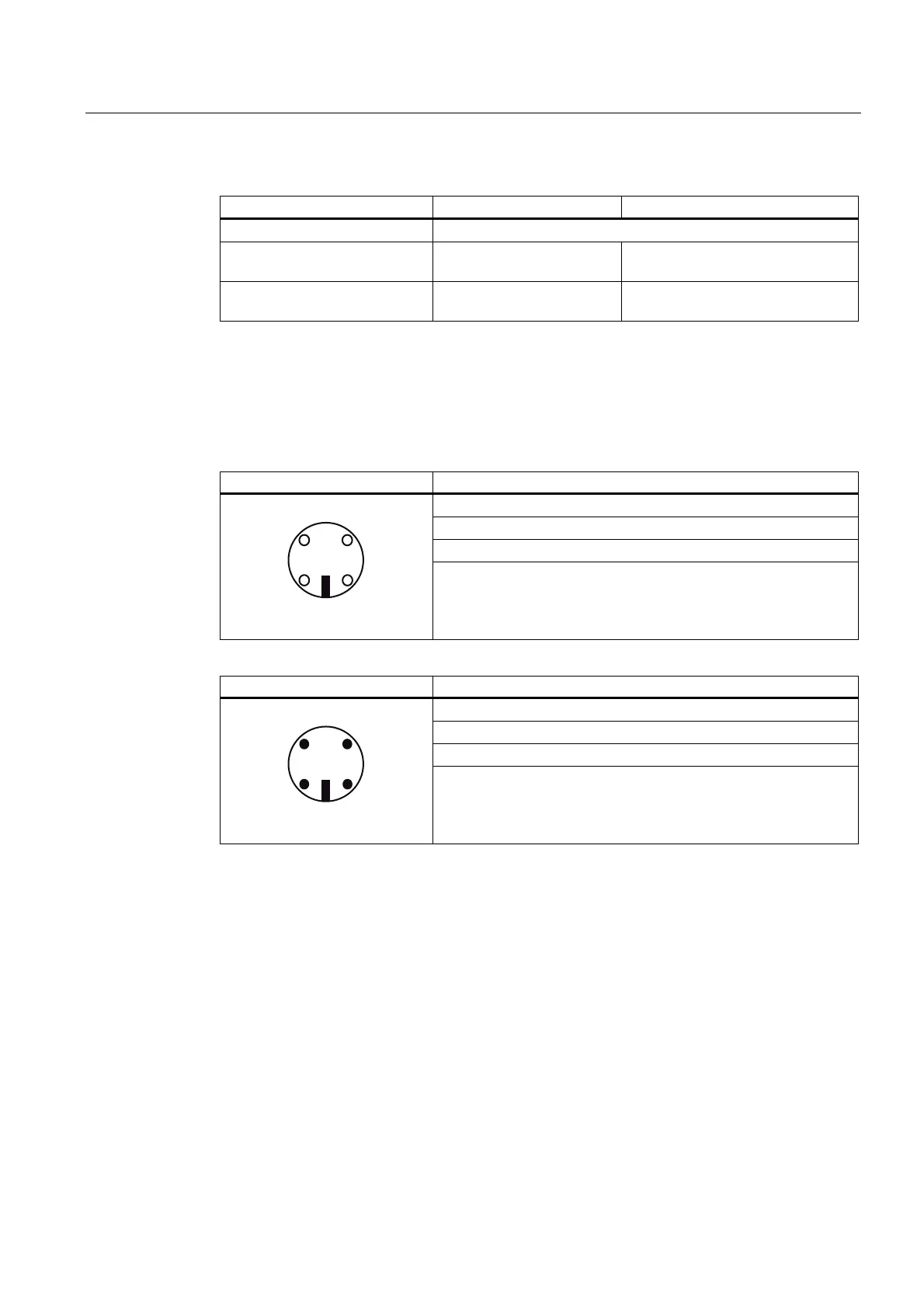

10.1.7 Pin assignment of DC outputs and mains connection
DC outputs Assignment
(1) Ground (0V)
(2) +24 V DC
(3) +24 V DC




(4) Ground (0V)
Mains connection Assignment
(1) 100 to 240 V AC
(2) n.c.
(3) 100 to 240 V AC


(4) n.c.
