Siemens SIMATIC MOBY D User Manual

Write/read devices with RS232 interface
6.4 SLG D12
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
165
6.4.6 Secondary fields
0'6
0'6
0'6
0'6
6/*
$X[LOLDU\ILHOG
0DLQILHOG
6/*
$X[LOLDU\ILHOG
0DLQILHOG
0HWDO
&RUUHFW ,QFRUUHFW&RQYH\LQJXQLW
&RQYH\LQJXQLW

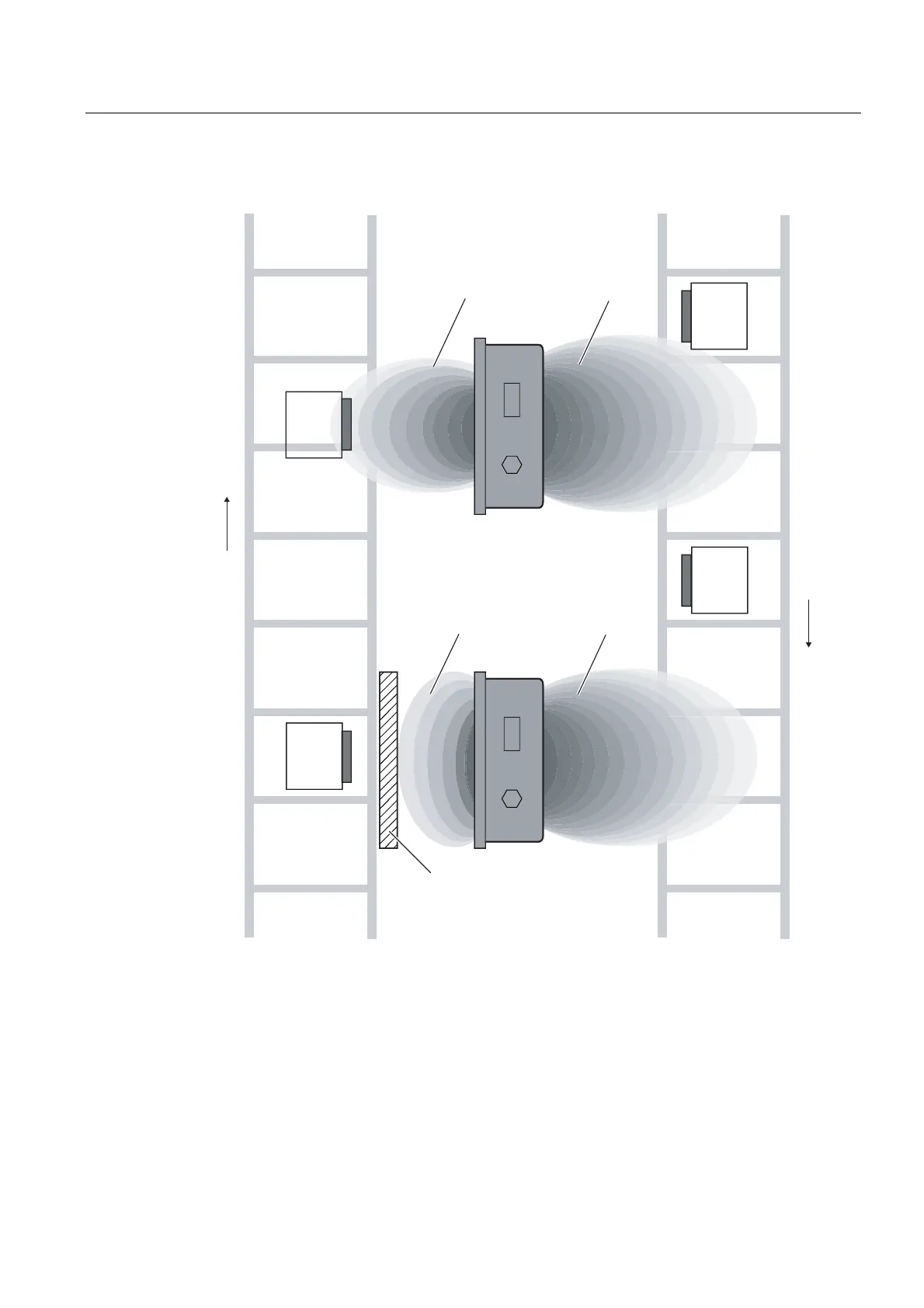

Figure 6-6 MDS shielding
To avoid undesired reading of the MDS outside the main field, the MDS must be shielded.
