Siemens SIMATIC MOBY D User Manual

Write/read devices with RS422 interface
7.5 SLG D12S (plug-in version)
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
201
7.5.8 Metal-free area

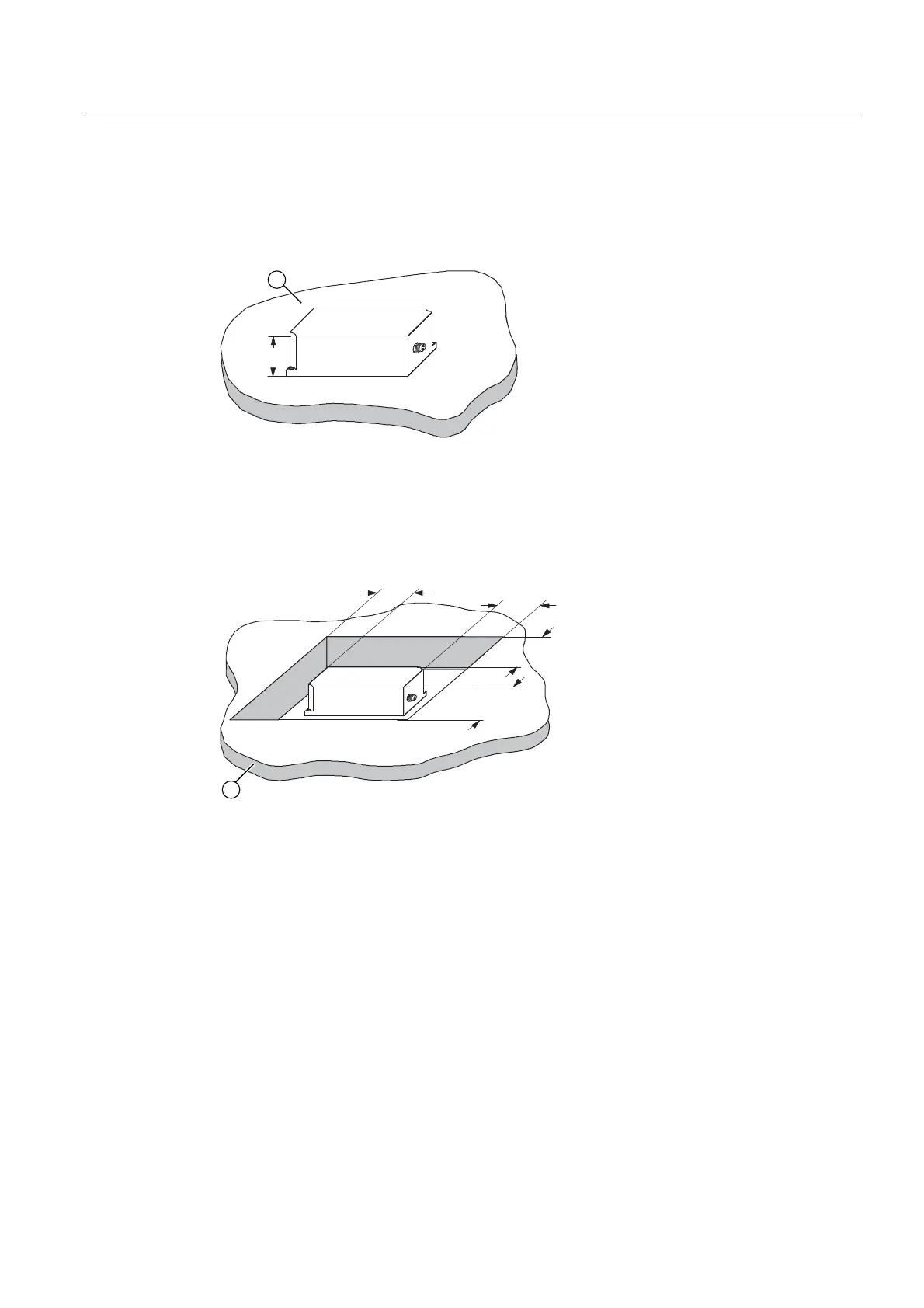

Mounting the SLG D12S special version on metal
K

① = Metal
h h = Mechanical height of the SLG = 40 mm
Flush-mounting of SLG D12S special version in metal:
E
E
D
D

① = Metal
a, b = Metal-free distances = 50 mm
When installing in the vicinity of metal, observe the instructions in the System Manual's
Chapter .
