5.13 MDS D460
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
145
5.13.3 Mounting on metal
Mounting on metal
1RQPHWDO
0HWDO
'DWDPHPRU\
K
h ≥ 25 mm

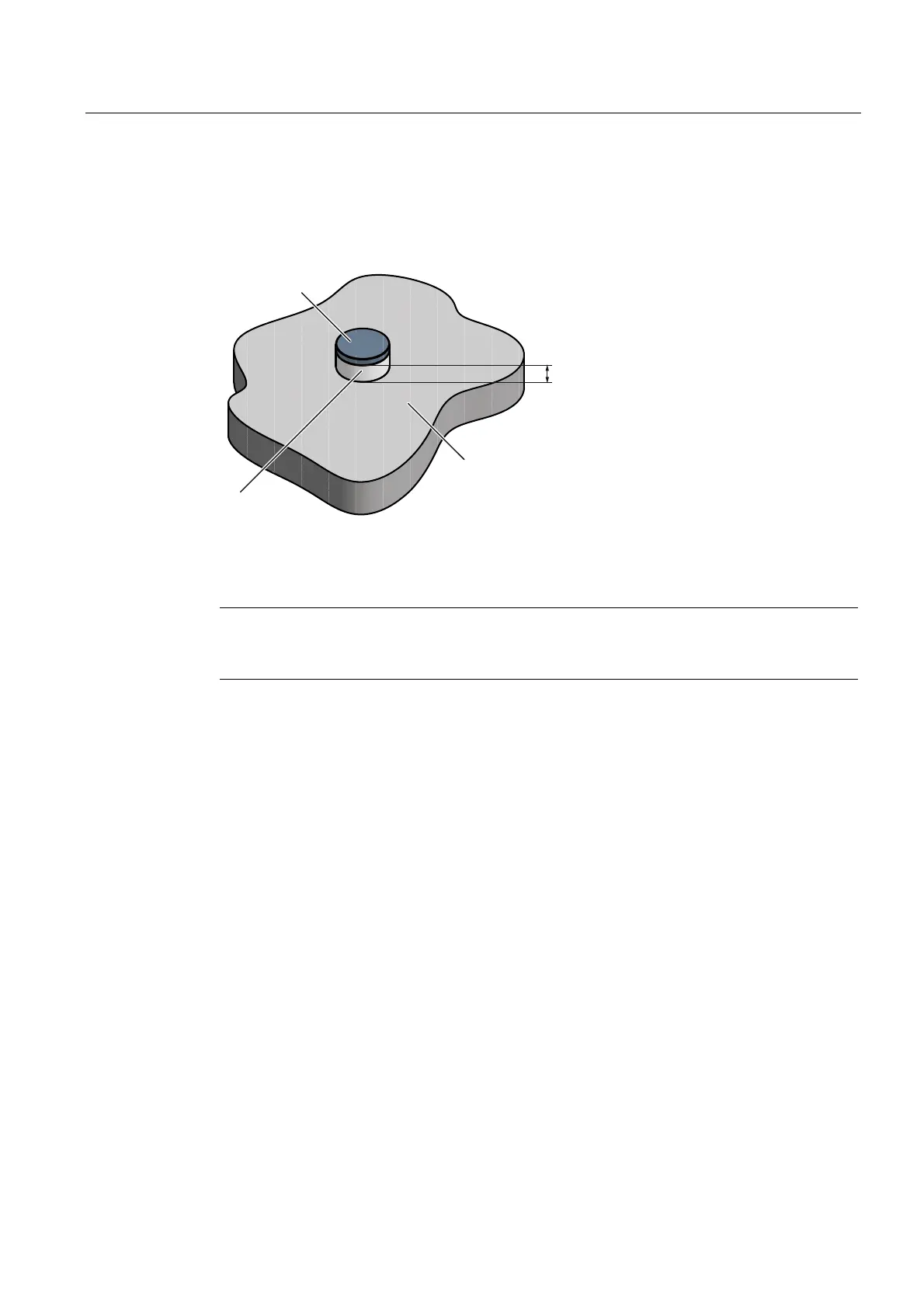

Figure 5-28 Mounting of the MDS D460 on metal with spacer
Note
If the minimum guide values (h) are not observed, a reduction of the field data results.
In critical applications, it is recommended that a test is performed.
Flush-mounting
Flush-mounting of the MDS D460 in metal is not permitted!
