Planning the MOBY D system
4.7 Cable and connector assignment
MOBY D
86 System Manual, 01/2010, J31069-D0147-A6-7618

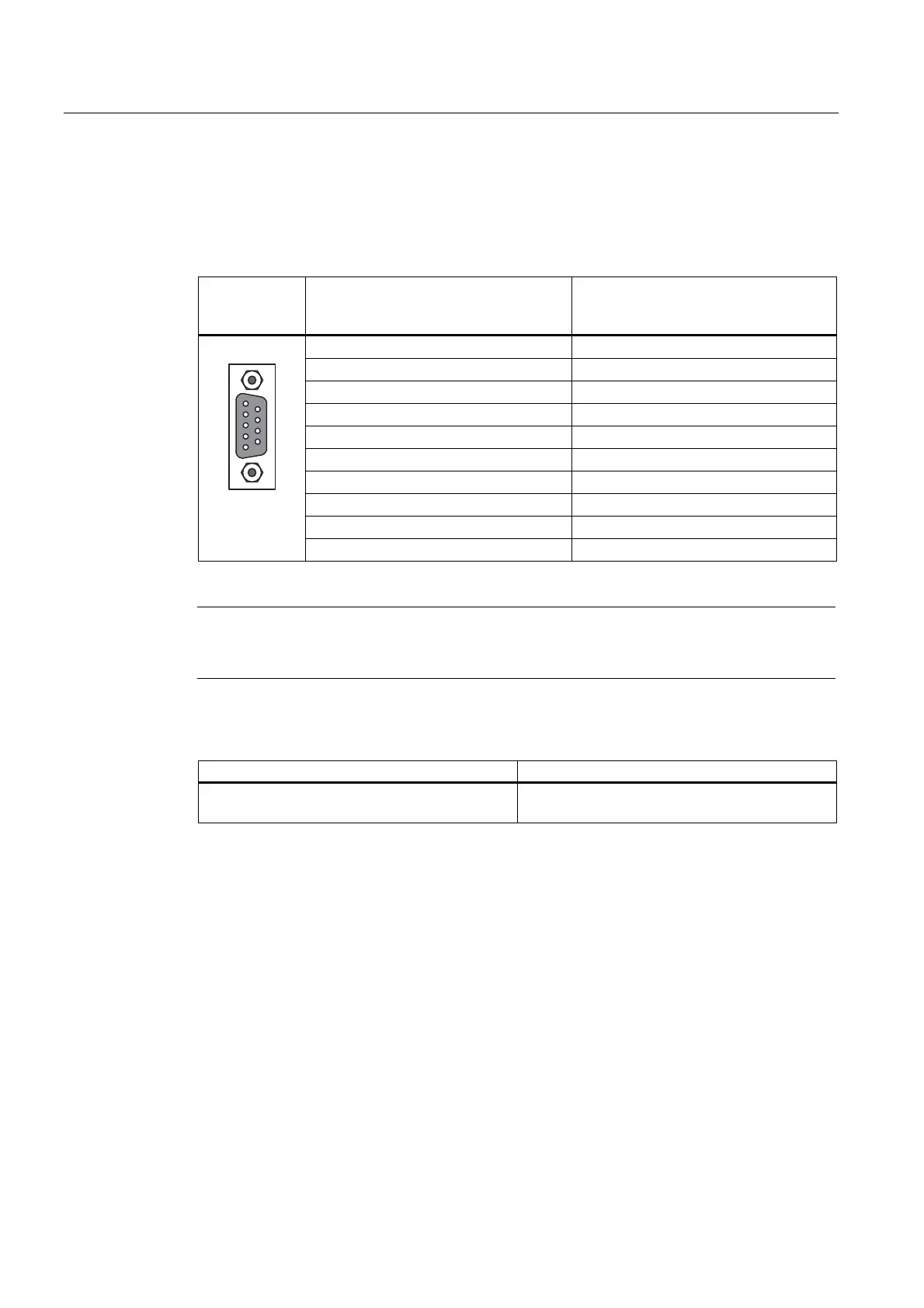

4.7.2 Connector pin assignment for SLG D1x (RS232)
Serial port
Pin Pin, casing side
(9-pin Sub-D connector with screw
locking)
Name
SLG D10/D11/D12 (RS 232)
1 Cable shield
2 TxD Transmit
3 RxD Receive
4 Not assigned
5 Ground (0 V)
6 Not assigned
7 Not assigned
8 Cable shield
9 Not assigned




Housing Not assigned
Note
When metal Sub D casings are used on the SLG side, the casing must be connected to the
cable shield.
Table 4- 28 Ordering data for mating connector for SLG D1x
Order No.
IP 65 mating connector for SLG D1x
9-pin Sub-D connector, female
6GT2490-1AA00
