Planning the MOBY D system
4.7 Cable and connector assignment
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
87

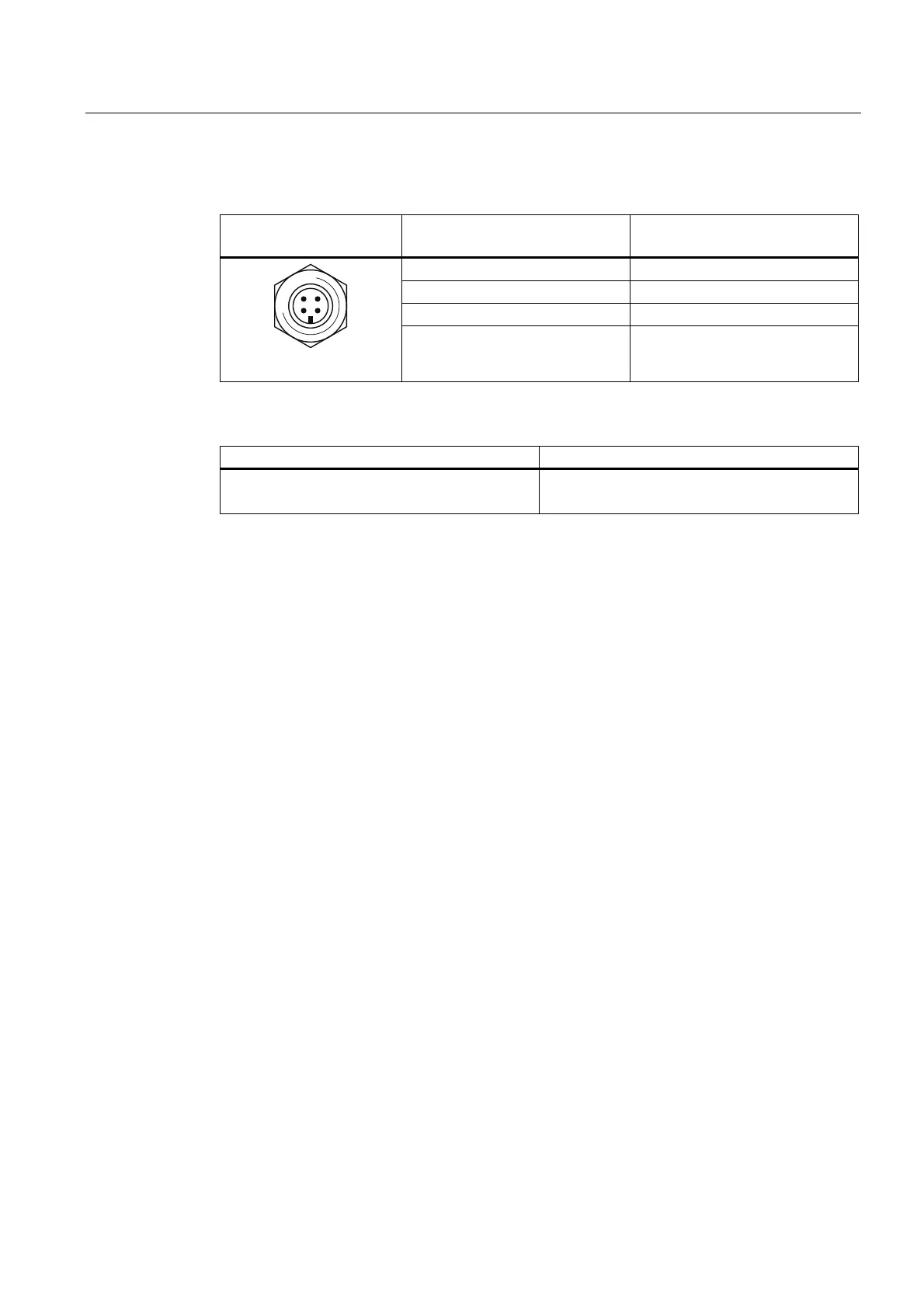

Power supply
Pin Pin, casing side
4-pin M12
Name
SLG D1x
1 Ground (0 V)
2 + 24 V
3 + 24 V




3ODQYLHZ
4 Ground (0 V)
Table 4- 29 Ordering data for mating connector for power supply
Order No.
Mating connector for power supply for SLG D1x
4-pin M12 connector, female
6GT2390-1AB00
