Write/read devices with RS232 interface
6.1 Overview of SLG with RS 232 serial interface
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
151
Configuration SLG - MDS (over RS 232)
9
LQ
9
LQ
6/*'$17'
*7$$
6/*'
*7$%
9FRQQHFWLQJFDEOH
*7++
/DEHO7UDQVSRQGHU
HJ0'6'
*7$$
0'6'
*7$'
$17'DQWHQQD
*76
6SDFHUNLW
*7$%
DFFHVVRU\
:LGHUDQJHSRZHU
VXSSO\XQLW
IRU6,0$7,&5)V\VWHPV
56FRQQHFWLQJFDEOH
*7%+
*7%1
*7$$
&'5),'6\VWHPV
6RIWZDUH'RFXPHQWDWLRQ
&OLEUDU\0':$3,
WKHOLEUDU\DOORZV
VHYHUDOVHULDO
LQWHUIDFHVWREHXVHG
VLPXOWDQHRXVO\
3&

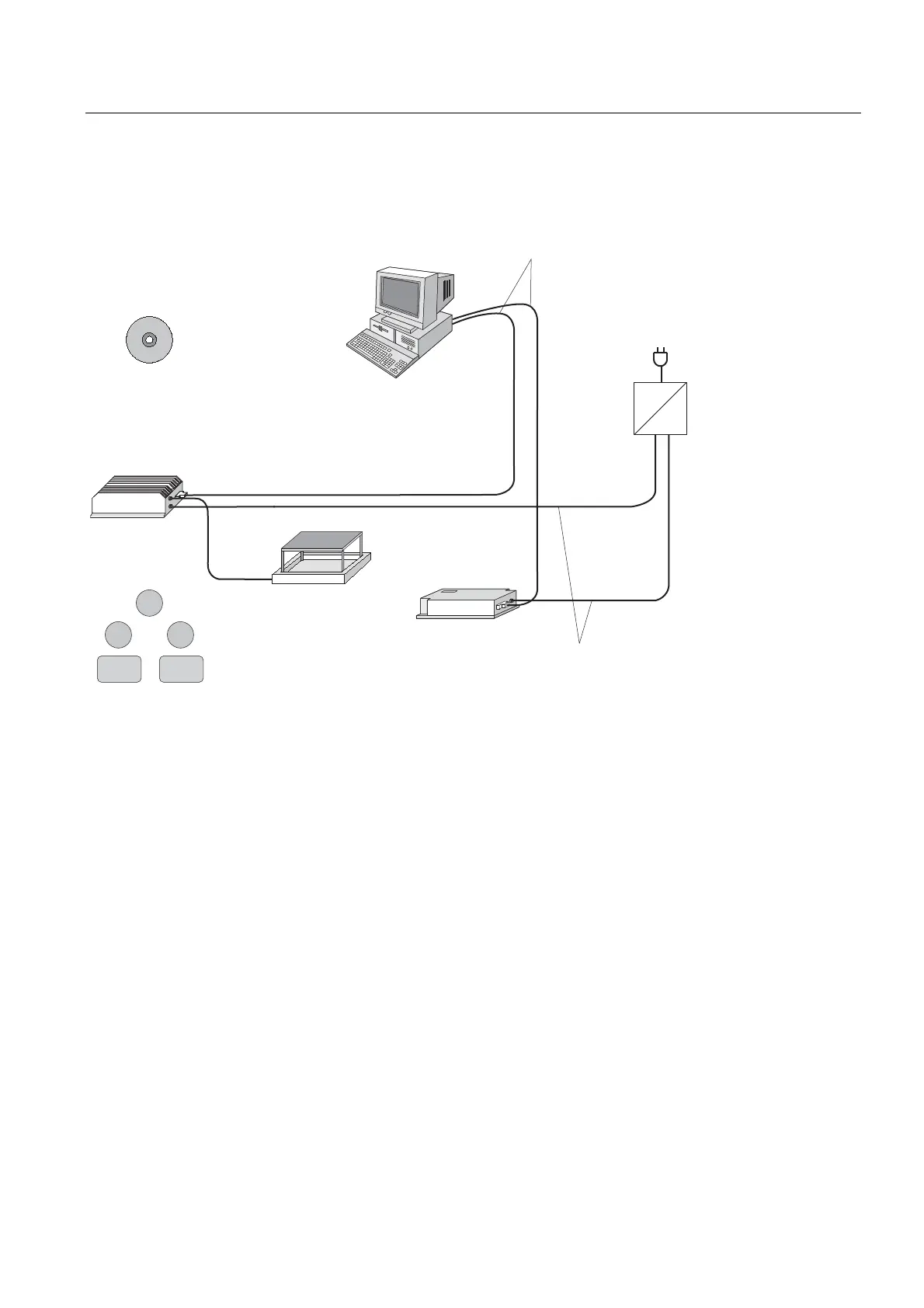

Figure 6-2 Configuration SLG - MDS over RS 232
Programming of SLG D10, SLG D11 and SLG D12
Communication is performed on the serial interface between the SLG and the higher-level
computer system (host) by means of an asynchronous 8 bit binary protocol. The message
frames are protected by means of a CRC 16.
Executable on PCs equipped with Pentium 2 processor and higher with a serial interface and
a Windows 9x/2000/NT 4.0/XP operating system.
The SLG is connected to a serial interface of the computer. Users work with the PC
interfaces COM 1 and/or COM 2; further interfaces can be operated with additional
hardware.
For programming, a 32 bit library (MDWAPI for Windows 9x / 2000, NT 4.0l and XP) and
programming guide are available to the user on the CD
RFID Systems Software &
Documentation
.
For computers that are not used under Windows (e.g. UNIX), the communication procedure
is described in the programming guide (MDWAPI).
