System integration
9.3 ASM 473
MOBY D
246 System Manual, 01/2010, J31069-D0147-A6-7618
maximum configuration
8SWR$60PRGXOHVFDQEH
RSHUDWHGLQRQH(7;VWDWLRQ

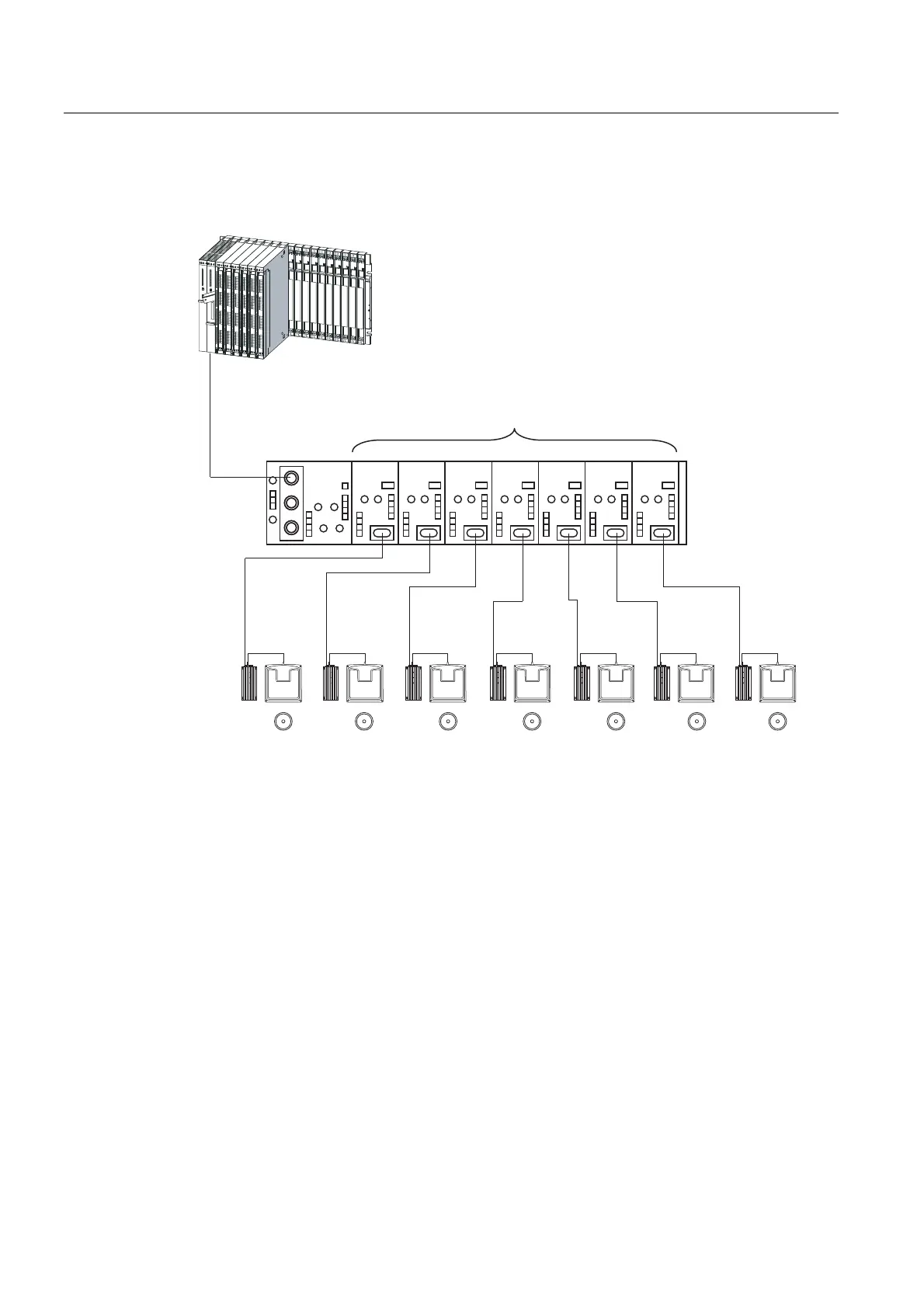

Figure 9-13 Maximum configuration of ASM 473 on an ET 200X
Depending on the PROFIBUS DP master, up to 123 ET 200X modules can be run on one
PROFIBUS DP segment.
Hardware configuration
The ASM 473 is integrated in the hardware configuration of the SIMATIC Manager by calling
Setup.exe in the directory daten\S7_OM on the "Software MOBY" CD. Currently, the ASM
473 cannot be integrated in masters of other manufacturers.
