Previous versions
C.2 Discontinued SLG with ANT D5
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
315
IC information
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada's website www.hc-sc.gc.ca/rpb.
This device has been designed to operate with only the antennas as described in this
manual. Use of further antennas is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Field data
Table C- 9 Field data for SLG D10 ANT D5
Limit distance (S
g
) max. 480 mm (dependent on transponder)
Operating distance (S
a
) 0 to 400 mm (dependent on transponder)
Length of the transmission window (L
d
) 320 mm
Width of the transmission window (W) 128 mm
Min. distance from ANT D5 to ANT D5 ≥ 2 m

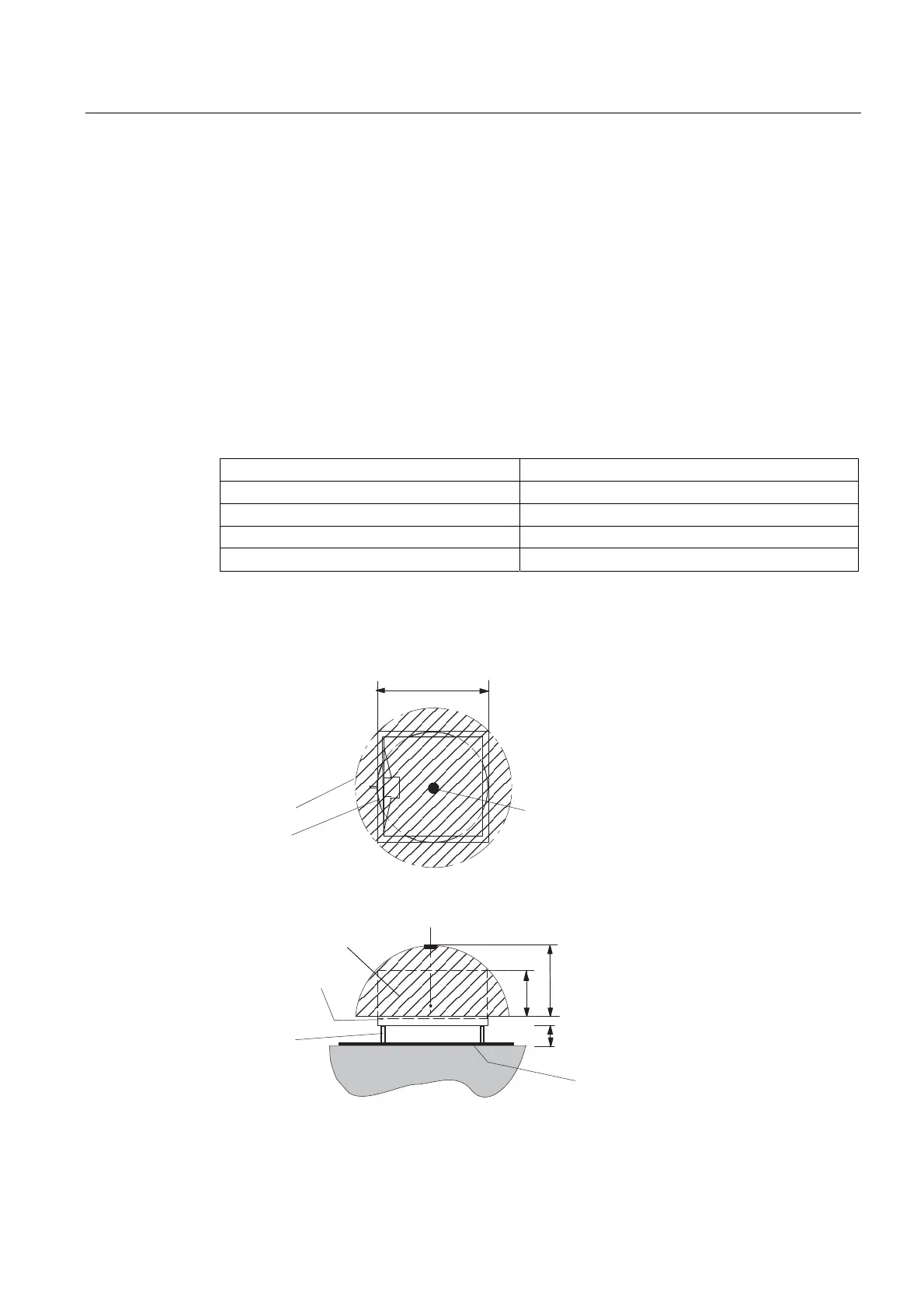

Transmission window
6LGHYLHZ
7UDQVPLVVLRQZLQGRZ
3ODQYLHZ
0HWDOSODWH
)RU6
DPLQ
WKHWUDQVPLVVLRQZLQGRZLVH[WHQGHG
6SDFHUNLW
6
DPLQ
6
DPD[
6
D
/
G
$17'
6
J
6
J
PP
Figure C-9 Transmission window for SLG D10 ANT D5
