C.2 Discontinued SLG with ANT D5
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
325
Dimensions (in mm)
)HUULWH
PD[
PP
&DEOHNLQNSURWHFWLRQ
IOH[LEOHLQHYHU\GLUHFWLRQ
0LQLPXPEHQGLQJ
UDGLXVPP
&DEOHOHQJWKP
9LHZ$
9LQWHUIDFH
3RZHU6XSSO\
ෘ





$$
 

[
ෘ







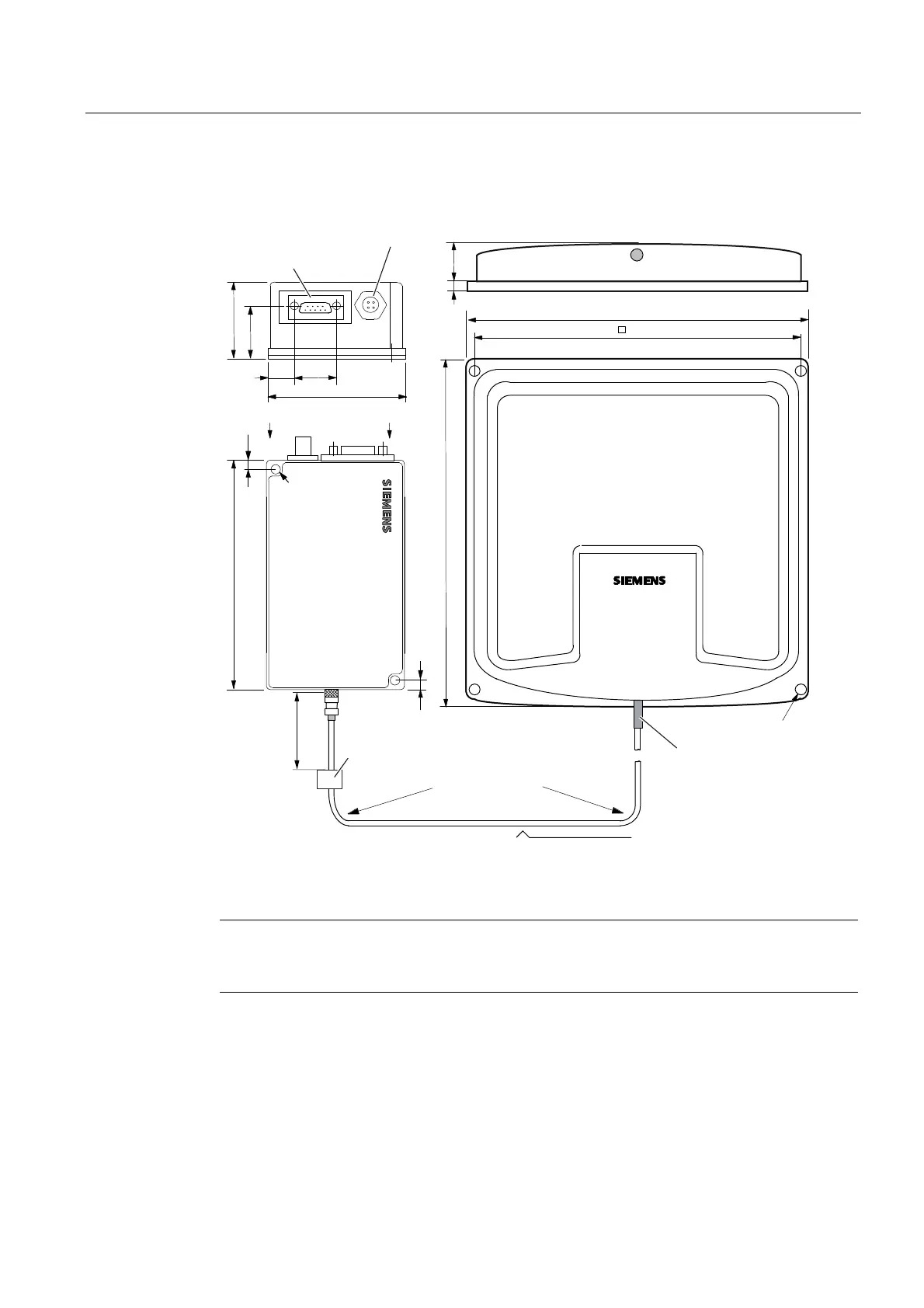

Figure C-17 Dimension drawing for SLG D11 ANT D5
Note
In order to guarantee optimum field data even in the vicinity of metal, ANT D5 is calibrated at
the factory at a distance of 100 mm from metal.
Spacer kit for MOBY D ANT D5
See the Section Write/read devices, SLG D10 basic unit
