Application planning
6.3 Configuration versions
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
135
6.3.1 S7-1500R/H configuration with IO devices in the PROFINET ring
Introduction
The following sections set out configurations of the S7-1500R/H redundant system with IO
devices in the PROFINET ring.
Advantages/benefits
• IO devices with S2 system redundancy enable uninterrupted process data exchange with
the S7-1500R/H redundant system in the event of a CPU failure.
• The redundant system continues to operate following a cable interruption anywhere in
the PROFINET ring.

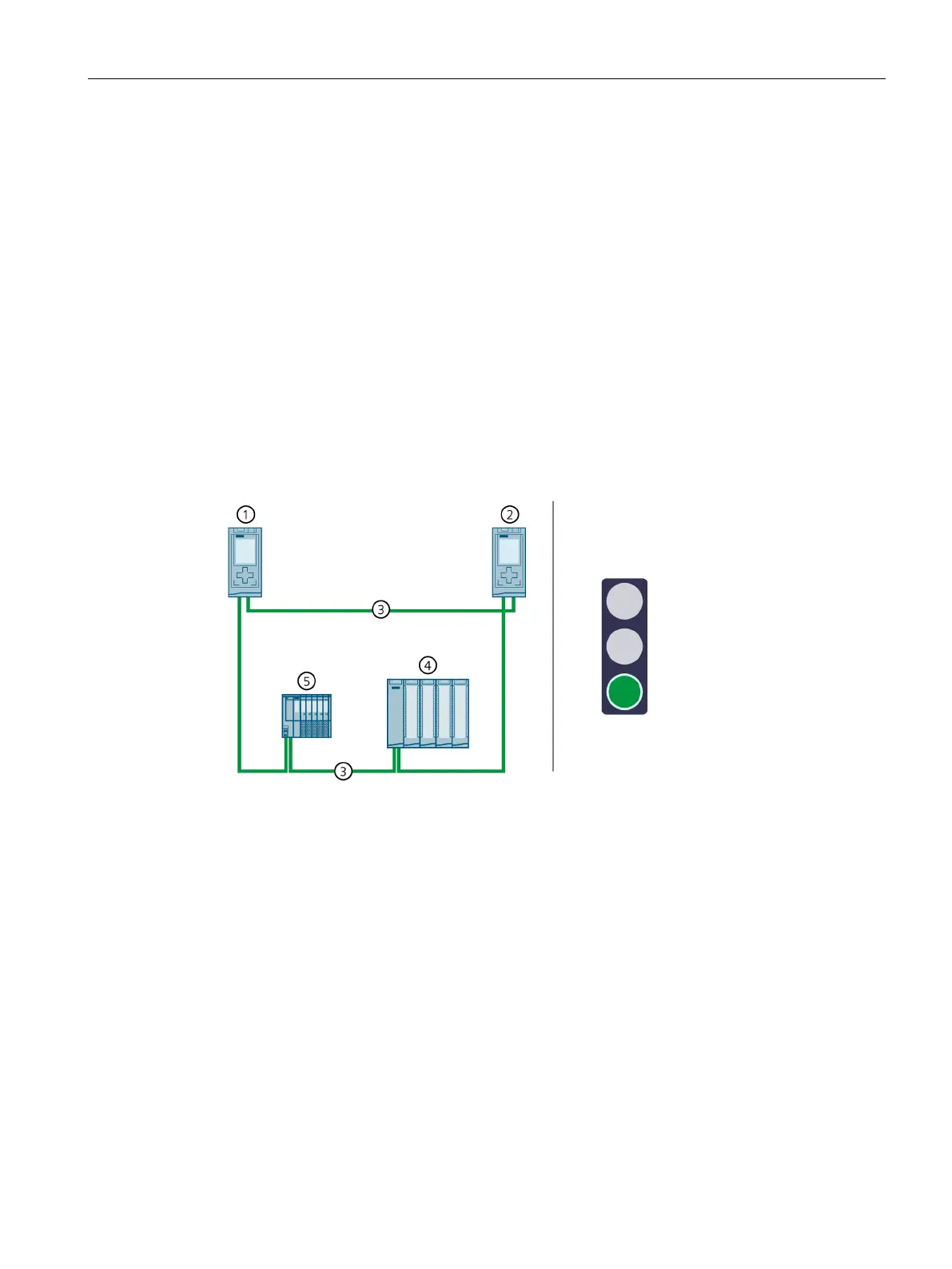

S7-1500R configuration
PROFINET cable (redundancy connections, PROFINET ring)
IO device ET 200MP (with system redundancy S2)
IO device ET 200SP (with system redundancy S2)
Figure 6-2 S7-1500R configuration with IO devices in the PROFINET ring
